Description
Fiber Optic Cable Outlet Features
- 2 Cores FTTH indoor wall mount termination box
- Screw lock lid and bottom with laser stickers
- With protective door and dusty free blocks for adapter port and cable ports
- Enough fiber management, storage area for fiber optic cables
- Suitable for 2SC or LC duplex, or 1SC +1 RJ module
- Plastic material white color, IP45
Fiber Optic Cable Outlet Specification
| Model | FTB86I-R |
| Dimension (W*D*H) | mm |
| Max. Capacity | 1 core (single fiber) |
| Cable ports | 1 SC +1 RJ45 module |
| Cable diameter | φ2.0mm.φ3.0mmφ0.9mm cable and FTTH drop cable 2x3mm |
| Adapter | 1 SC / LC duplex |

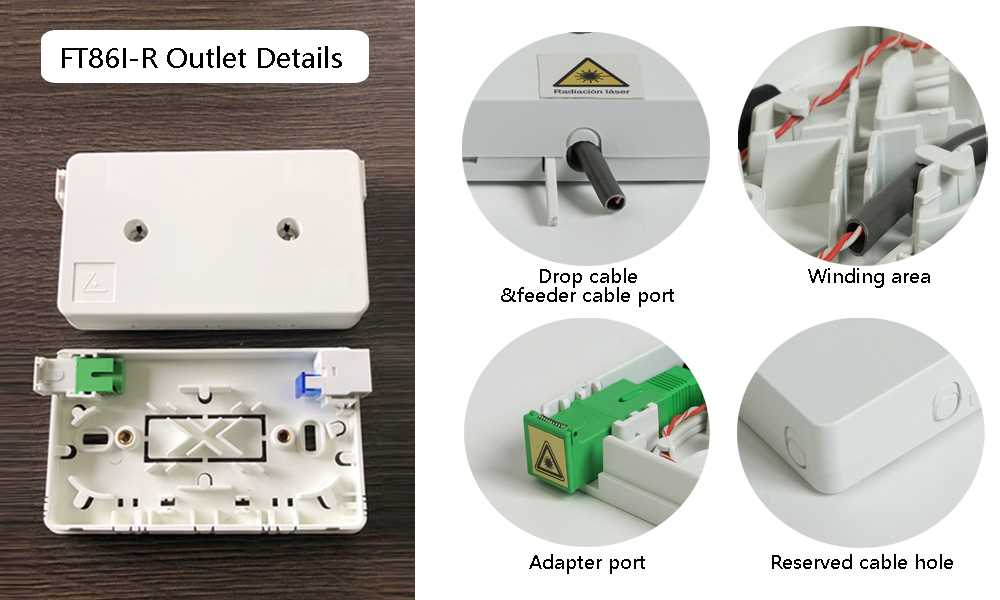

Fiber Optic Cable Outlet Details

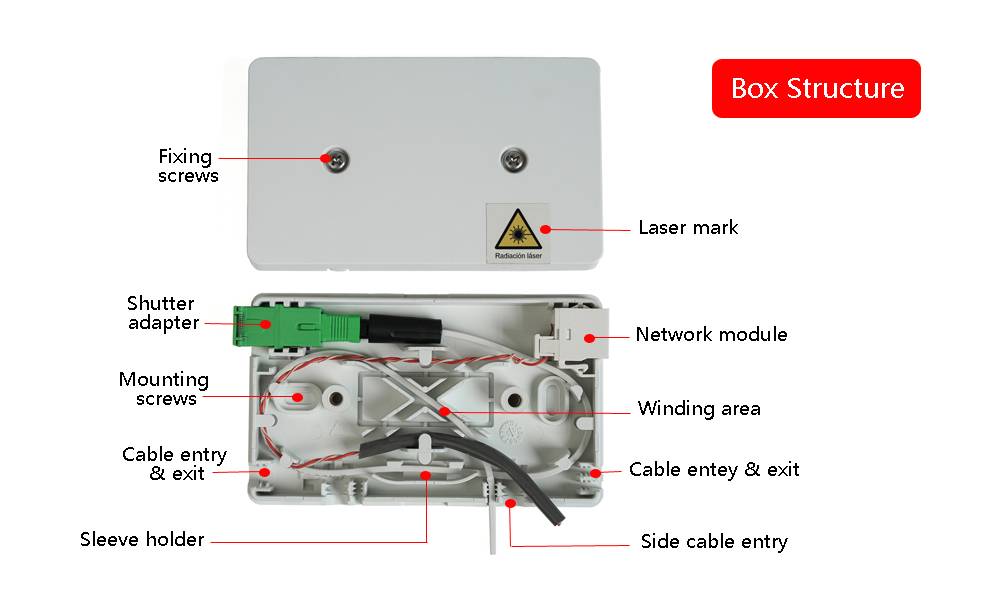

FTB86I-R Fiber optic cable outlet are compact size, light weight wall termination box, it is made of brand new plastic materials, with laser mark on top cover. There are many cable ports for round cable entry and exit, also the drop cable entry and exit at front and side of the outlet.
We can pre -connectorized SC shutter adapter or LC duplex adapter and pigtails inside of the box, and special wiring area for fiber optic cables.
Though this fiber optic cable outlet is small, but it mix the fiber optic cable splicing, storage, wiring, storage functions in a box.

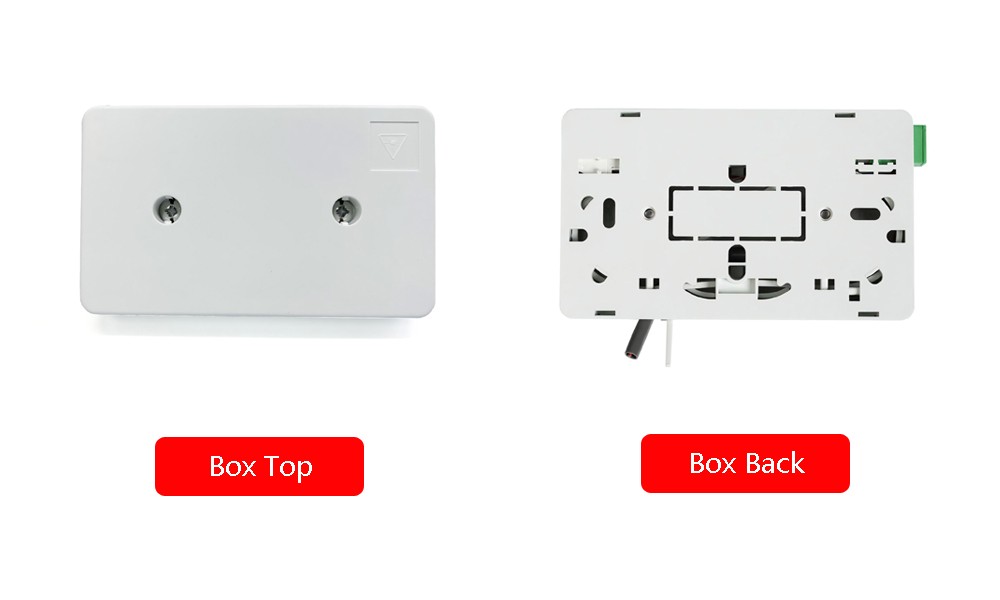

This box lid and bottom are separate, and the lid is fixed on the bottom with 2 screws, so it hold both tightly. The mounting way of the fiber outlet is drill 2 holes on the wall, and then use expansion screws.
