Description
Fiber Optic Outlet Box Specification
| Model | FTB86H |
| Dimension (W*D*H) | 148.3*89.8*16mm |
| Max. Capacity | 1 core (single fiber) |
| Cable ports | 2 pcs |
| Cable diameter | φ2.0mm, φ3.0mm, φ0.9mm cable and FTTH drop cable 2x3mm |
| Adapter | 1 SC / LC duplex coupler |
Fiber Optic Outlet Box Details

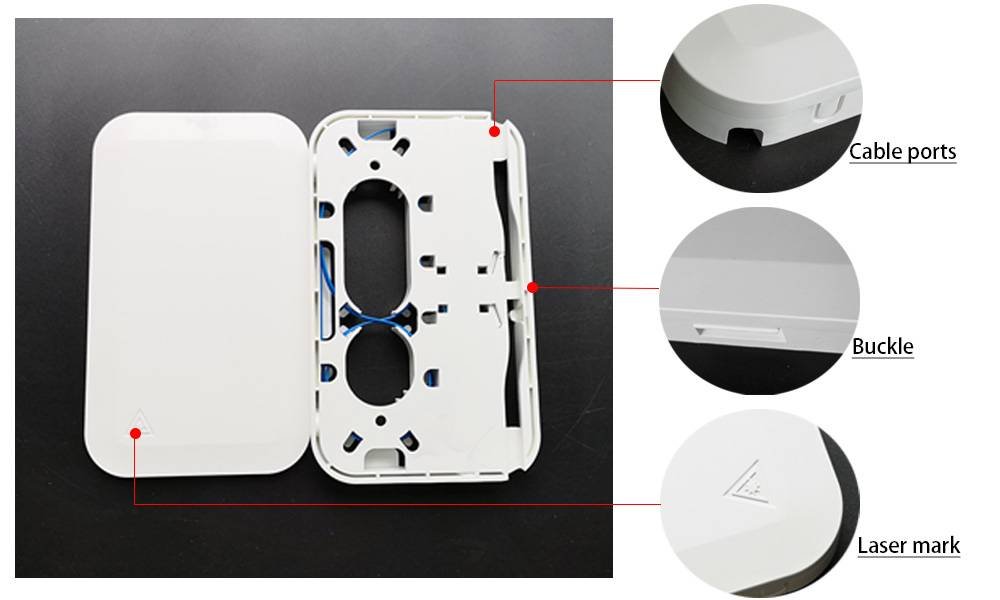

Cable go in and out of the wall outlet from the side cable ports, workers can open the box by press down the bukles at both sides. The box is very thin, but with large space for fiber splicing, distribution and wiring.
The fiber optic outlet box has a simple internal structure and a very reasonable optical cable bending radius. The introduction of optical cables, the lead-out of optical cables, optical fiber fusion splicing and wiring all have their own areas without interfering with each other.

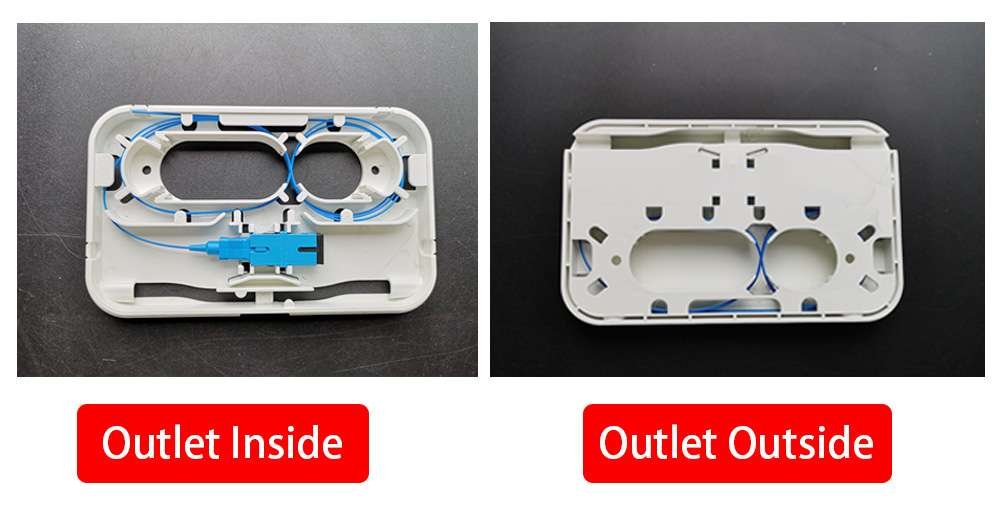

The fiber outlet box is very well designed. The main cable passes through the back of the box, where can introduce the bare fibers into the box through the guiding ways. Then optical fibers are spliced, distributed, and connected inside the box, and then joint with the pre-terminated drop cable patch cord and distributed out.
Fiber Optic Outlet Box Features
- FTTH indoor wall mount, home or work area
- Embedded surface frame, easy to install and disassemble
- With protective door and dusty free
- Large area for fiber management, storage for surplus fiber
- Suitable for 1 pc SC LC duplex adapter
- ABS PC plastic, ROHS compliance
- Cable entry and exit without cutting
- Laser mark on lid, screen print logo and free sample available
