FTB86F is a special fiber wall outlet with 2 RJ45 module and 1 SC simplex adapter, it is used in the end termination where have copper structured cable and fiber optic cable system. It can fix and splice with pigtails and connection with internet cable.
| Model | FTB86F |
| Dimension (W*D*H) | 86*86*25mm |
| Max. Capacity | 1 / 2 core (single fiber) |
| Cable ports | 1pcs + 2pcs RJ45 module |
| Cable diameter | φ2.0mm, φ3.0mm, φ0.9mm cable and FTTH drop cable 2x5mm |
| Adapter | 1pc SC simplex adaptor |
| Material | ABS |
| Color | White |

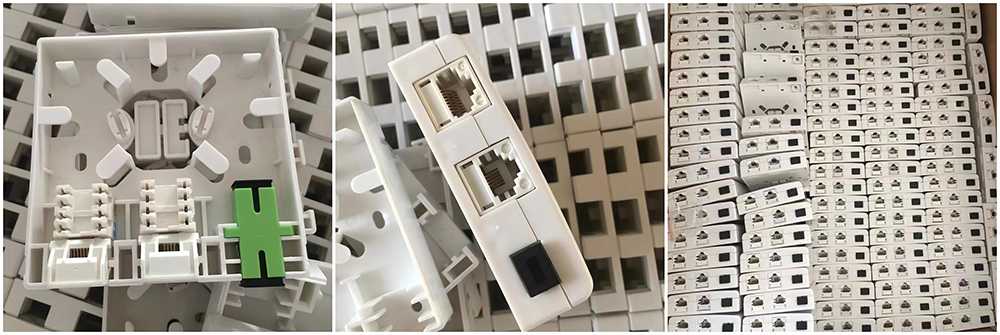

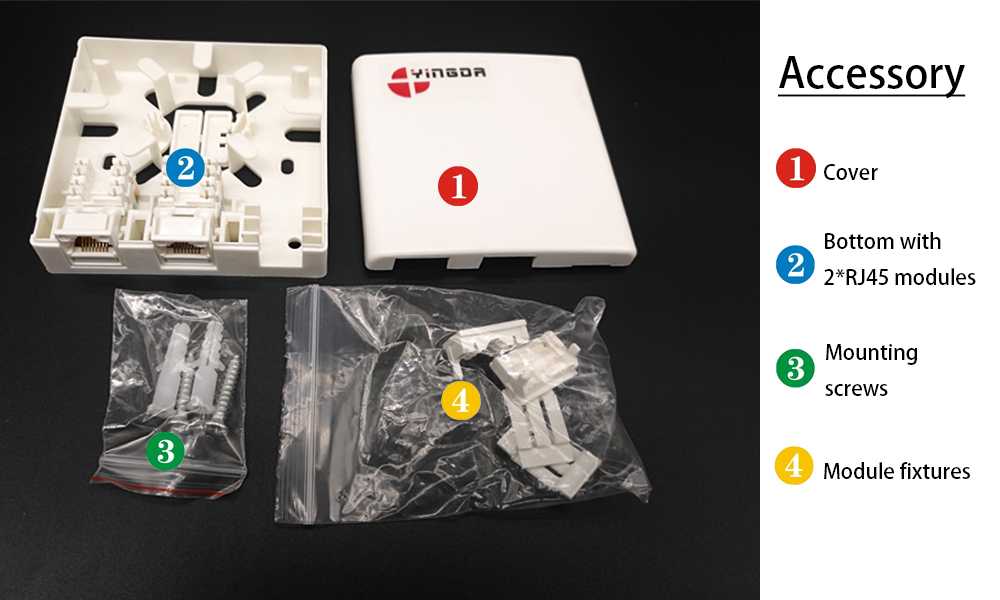

Yingda produced fiber wall outlet are made of high quality ABS materials, white color, and standard accessory 1 cover, 1 bottom, and mounting screws. If customer need, we can pre load SC fiber adapter, SC fiber optic pigtails 1.5meter yellow, and 2pcs RJ45 modules in advance.

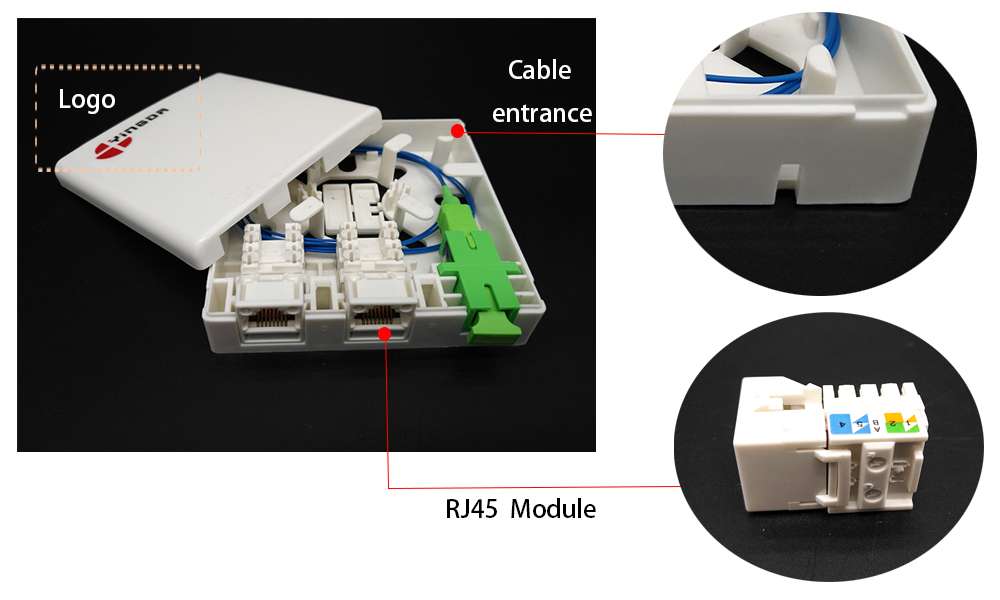

Yingda provide additional logo screen-printing, best for you to promote your brand and improve your sales. And we can help assemly the pigtails, adapters, and modules in factory, you only need to bring the fiber optic cable or copper cable inside of the box and splicing or plug in, then complete installation. Fast and easy to operate, time and cost saving. It is very suitable for wiring construction in scenarios where have both fiber optic cable and copper cables.

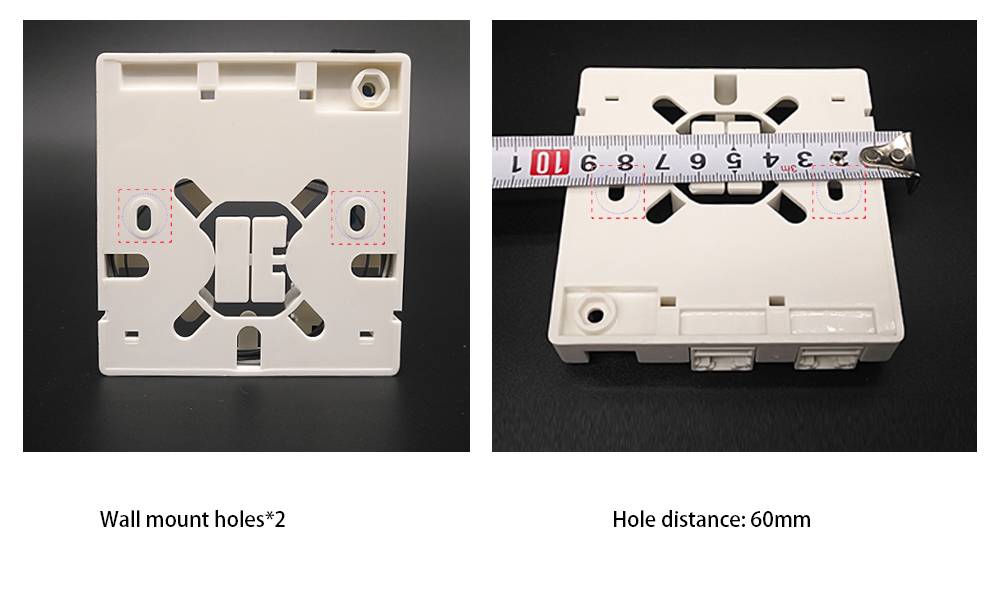

This plastic white fiber wall outlet is mounted on wall with screws, the hole distance will be about 60mm, only need to drill 2 holes, you can mount the box on wall surface. It is compact size, light weight, telecom quality assurance.
Yingda uses high-quality and high-strength corrugated cardboard boxes for packaging, ensuring that all products have the most effective protection. The outer box can be customized with labels that customers want for quick identification when picking up the goods.
EXW, FOB, CFR, CIF, DDU, DDP, CPT are optional.
TT, Paypal, Escrow, Alipay, Wechat are optional, no credit.
Yingda accept small bulk order, and sample order. If retailer, please consult our fiber optic distributor in local.
Yingda support team working time: 9am-18pm from Monday to Friday, but AI robot will be always online, you can leave message, will get back to you on the first sight your mails.
If urgent, please CHAT ON WhatsApp:+8618688982406
Yingda productivity is high efficiency, very fast. Normally 2-15 days on different quantity. Let's talk for more details.
Yes, we can do pack or assembly like your requirements, please specify details in purchase order.
High productivity efficiency, skilled front-line operators and strict production control ensure timely delivery.
High-precision testing equipment and top industry quality control system ensure high quality standards.
Long-term stable supply chain and cost control that changes in line with market trends ensure the best price
The more details, the better offer.
