Description
Roseta Fibra Optica Movistar Features
- FTTH indoor wall mount, home or work area
- Slide lid design, no need screw driver, easy to open and close
- Provide users with optical access or data access
- Large area for fiber management, storage for surplus fiber
- Transparent flip over cover to prevent dust, but convenient for operation.
- Suitable for 1pc SC simplex / duplex adapter
- ABS+PC plastic and ROHS proof
Roseta Fibra Optica Movistar Specification
| Model | FTB86E |
| Dimension (W*D*H) | 82*115*22mm |
| Max. Capacity | 2 core (single fiber) |
| Cable ports | 3 pcs |
| Cable diameter | φ2.0mm.φ3.0mmφ0.9mm cable and FTTH drop cable 2x5mm |
| Adapter | 1pc SC simplex or duplex |
| Material | ABS |
| Color | White |

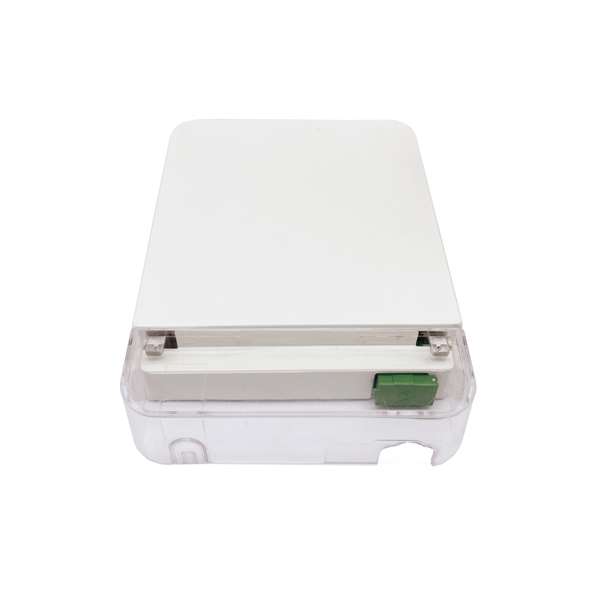

Roseta Fibra Optica Movistar Details

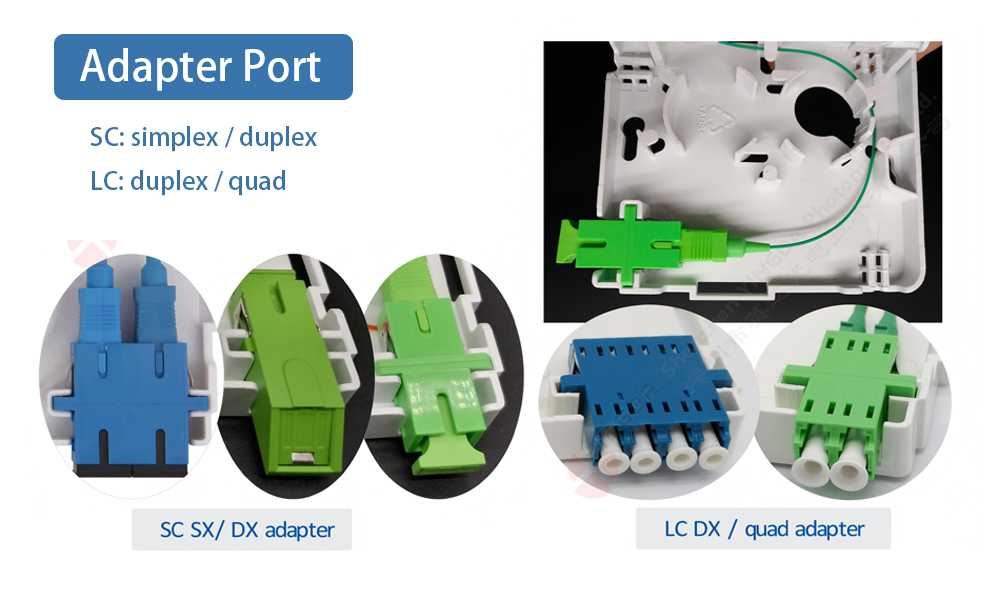

This optical fiber roseta with 1 adapter port at right of the box, left for cable entrance. The port can be SC simplex, duplex adapter, or LC duplex or quad adapters, also shutter adapters can be ok. Adapter with flange or without flange both ok, it can be fix tightly well with clip design. And it can maximum hold 1 to 4 cores single fiber splicing or distribution.

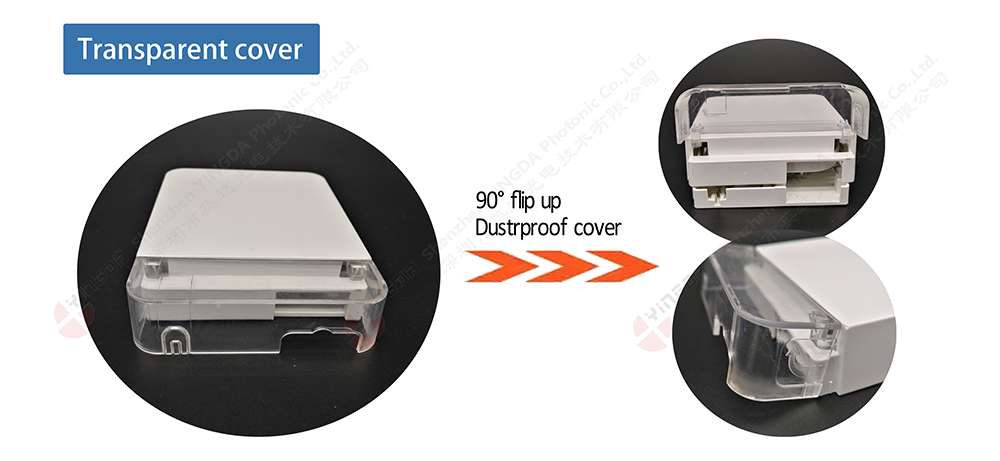

Only press down the both sides to open the cover lid, easy to operate and close. And the cover with a transparent cover for dustrproof function for the cable enter and exit part. It can be flip up 90 degree when we are on site constructions.

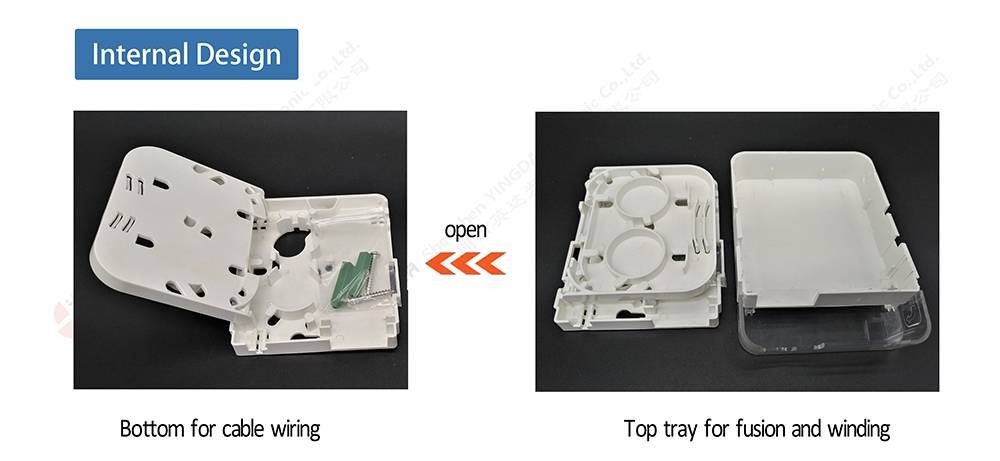

There is a mini splice tray in the middle layer, with 2 slots for fiber sleeve 40mm, and large wiring space for surplus fibers to bring in and splicing.
The standard accessory is only the mounting screws with a small bag configurated in the box itself if empty loaded.

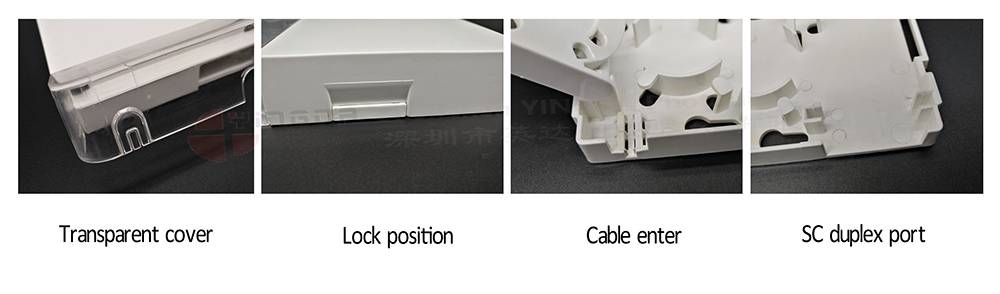

Below is the detailas for the box, from left to right in sequence: the cable entrance mark on the transparent cover, press down buckles at both sides of the box, cable entrance with tighting holes, and the adapter outports. Yingda all Roseta Fibra Optica Movistar are in brand new material, white color, no second hand materials, please rest assured to buy, and confirm 1 year guarantee.

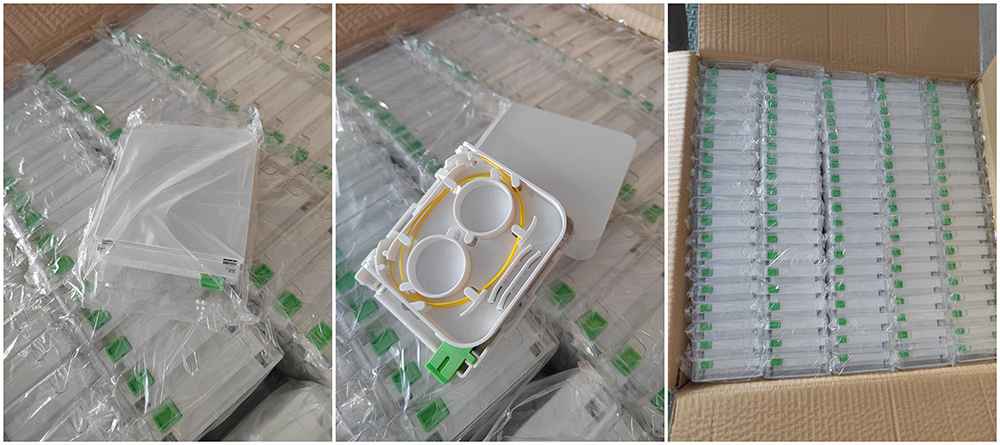

All the roseta fibra optica are pack in a plastic bags firstly, then in master carton boxes well protected, no break in international transportation or violent express delivery. If the customer is still worried, we can use pallet transportation to provide further protection.
Considering the long-term needs of customers and brand promotion, we can screen print customer’s logo and desired description for customers. Please share the your logo file in AI., CDR, JPG, PDF. formation, then we can make you happy.
