Description
Features of Ftth Wall Outlet
- FTTH indoor wall mount, home or work area;
- Hinged cover plate, easy to install and maintenance;
- Provide users with optical access or data access;
- Large store area for surplus fiber inside;
- Suitable for 2pcs SC or LC duplex adapters;
- High engineering plastic, ROHS compliance;
- Total enclosed for better dust-proof.
Specification
| Model | FTB86A |
| Dimension (W*D*H) | 86*86*23mm |
| Max. Capacity | 4 core (single fiber) |
| Cable ports | 6pcs |
| Cable diameter | φ2.0mm, φ3.0mm,φ0.9mm cable and FTTH drop cable 2x3mm |
| Adapter | 2SC LC |
| Fiber bend radius | ≥40mm |
| Extra loss on tray | ≤0.01dB |
| Temperature range | -40℃~+70℃ |
| Anti lateral pressure | ≥2000N |
| Impact resistance | ≥20N.m |

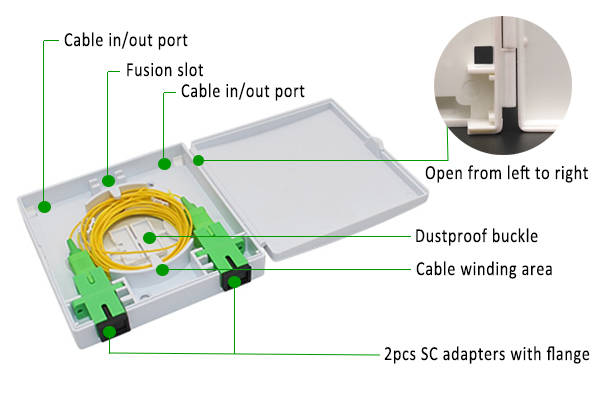

Detailed Display of Ftth Wall Outlet
This box FTB86A features cable in/out ports which allow fiber-optic cables to enter and exit the outlet, enabling the routing of cables. There is a fusion slot where fiber-optic cables can be fused together, ensuring a secure and efficient connection. The cable winding area provides a space to neatly wind excess fiber-optic cable, preventing tangling and damage. It is equipped with 2pcs SC adapters with flange, which are used to connect fiber-optic cables, facilitating signal transmission.
A dustproof buckle helps keep dust out, protecting the internal components from contamination. The outlet is designed to open from left to right, making it easy for installation, maintenance, and inspection of the fiber-optic cables and components inside. Overall, it is a well-designed solution for organizing and connecting fiber-optic cables in home or small-office FTTH setups.
