Description
Features of Roseta Fibra Optica
- Water-proof design with IP-66 Protection level.
- Integrated with splice cassette and cable management rods.
- Manage fibers in a reasonable fiber radius condition.
- Easy to maintain and extend the capacity.
- Fiber bend radius control more than 40mm.
- Suitable for the fusion splice or mechanical splice.
- 1*8 Splitter can be installed as an option.
- Efficient cable management.
- 8 ports cable entrance for drop cable.
- Outputs for flat drop cable 2*3mm.
Specification
| Model | FTB108M |
| Dimension (A*B*C) | 190*155*41mm |
| Max. Capacity | 8 core (single fiber) |
| Cable ports | 1in, 8out |
| Cable diameter | in: 7-12mm, out: 2*3mm |
| Adapter | 8SC / LC duplex |
Roseta Fibra Optica Details

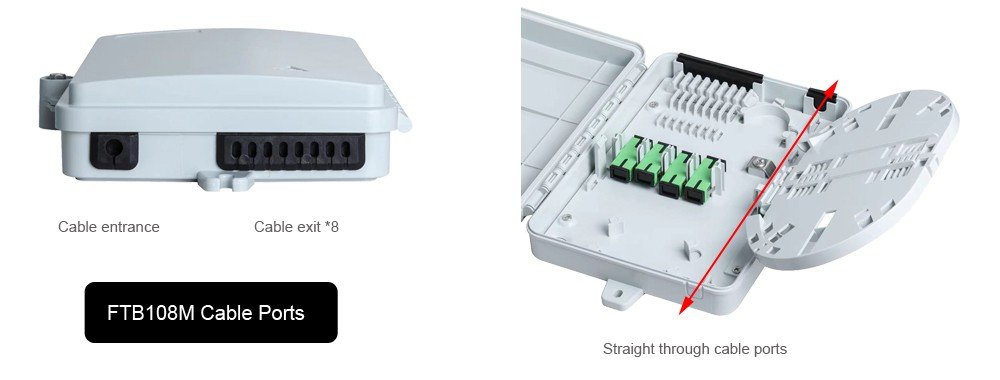

FTB108M roseta de fibra optica support mid span express, the main cable go through the box without cutting off, only stripper a certain length of cable, and bring out 8 fiber for fusion, then the rest fiber go to the next node. The cable inlet and outlet with rubber seals, easy to operate.

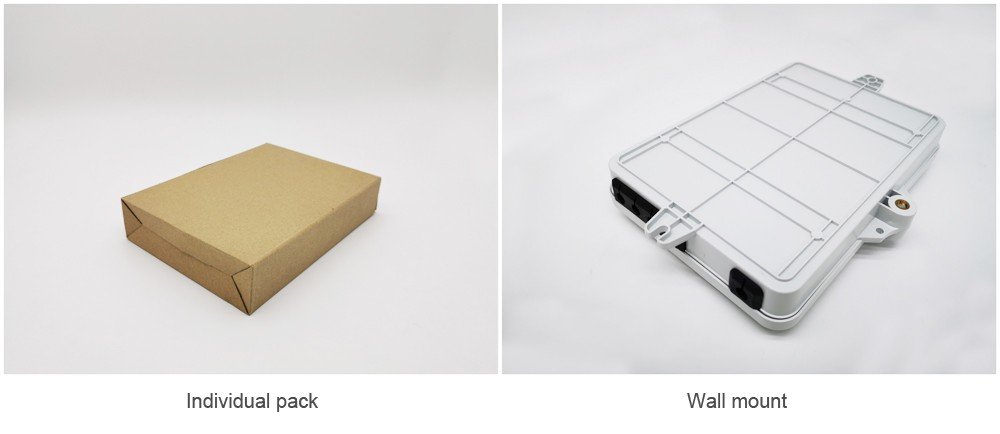

Each fiber optic box is individually packaged with standard accessories. Unless otherwise specified, it is installed using wall-mounted screw holes (top and bottom). A special key is provided to unlock the screws.

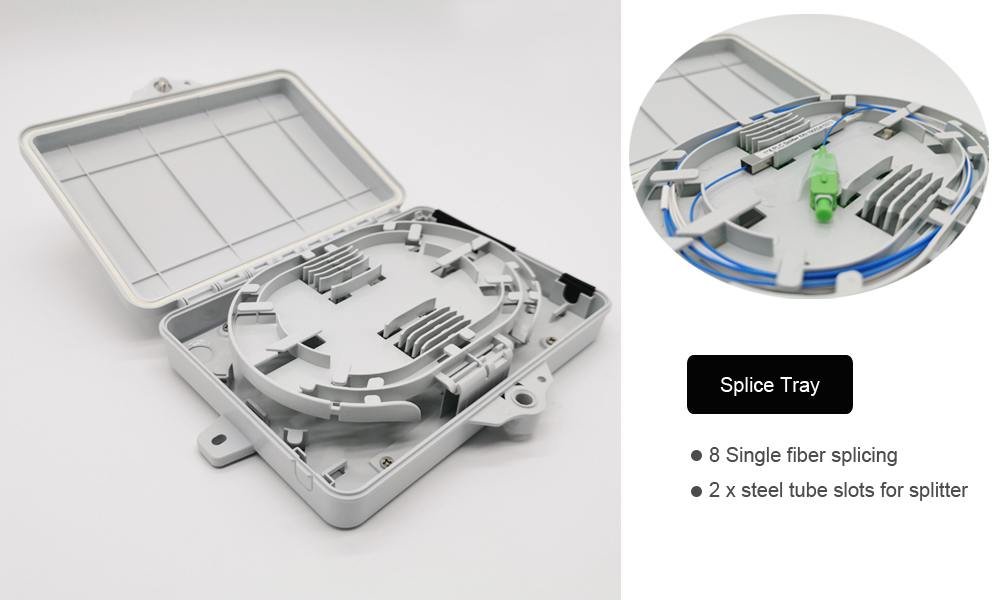

The entire optical roseta features a white waterproof gasket, achieving an IP65 rating, suitable for both indoor and outdoor fiber-to-the-home (FTTH) applications. Each fusion splice tray has 2 splitter slots and 8 splice slots. Fiber optic splitters, pigtails, adapters, and other passive optical components can be configured according to customer requirements.
Assembly services are provided by Yingda. Please inform us in advance if you require these services.
