Description
Fiber Optic Cable Terminal Box Feature
- 2 cable ports suitable for max 15mm cable in and out.
- Cable no cutting and direct connection.
- Splice tray max capacity 12core, can install 8pcs SC simplex adapters.
- Snap-in type, easy to open and close, can repeatable use.
Specification
| Name of Material | Specification | Q’ty | Remark |
| Heat shrinkable tube | ￠3.0*45mm | 8PCS | |
| Nylon cable ties | 3*120mm | 6PCS | |
| Plastic expansion tubes | φ6 | 3PCS | |
| Cross Countersunk head tapping screws | M3.5*25 | 3PCS | |
| Adapter | SC/SX | 8PCS | optional |

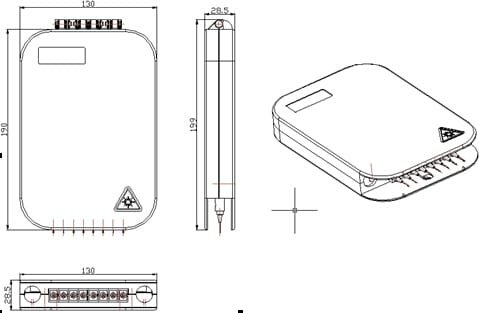

Fiber Optic Cable Terminal Box Dimension
Cable Terminal Box Details

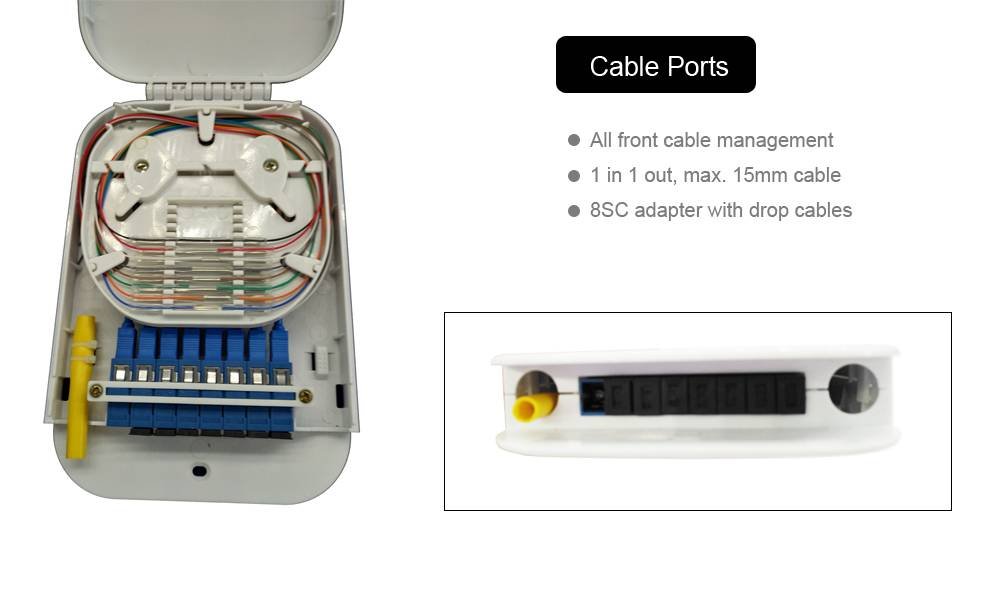

This Fibra GPON splitter box are made of ABS material, and all cable management in front including cable enter, exit, and distriubution. 1in 1 out round cable port at both side of the adapter holder, max. hold 15mm outer diameter of fiber optic cable. 8 SC adapter holders for splitter output pigtail or 8 SC fiber pigtails.

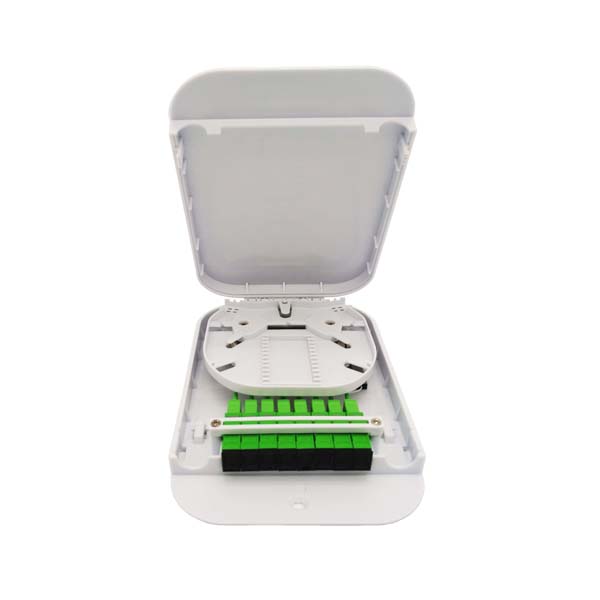

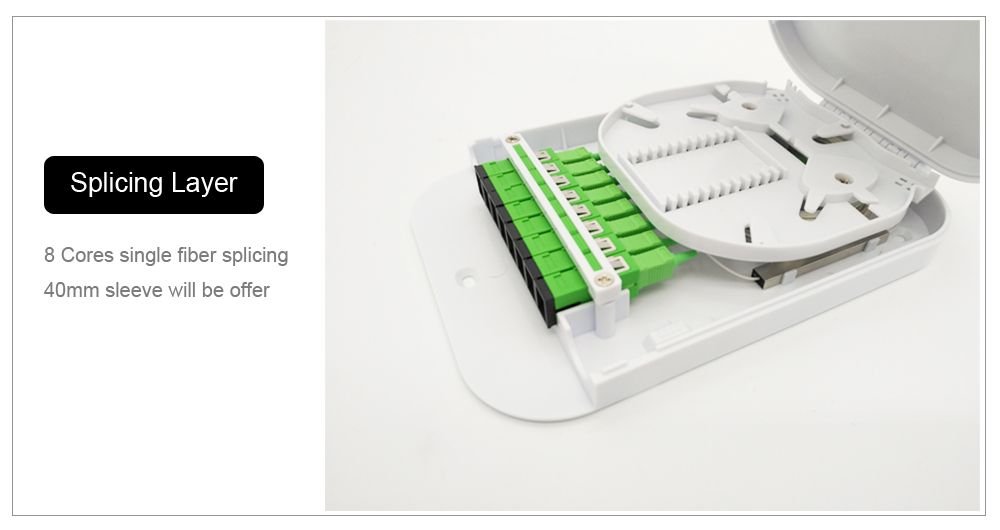

A 12 core fiber optic splicing tray is installed in the middle of the fiber optic terminal box, secured to the bottom bracket of the box with two screws. The fiber optic cable is introduced into the tray through the entry holes on both sides of the rear for splicing and securing. The design provides large space for cable routing.
Below the fiber splicing tray are the entry and exit channels for the optical cables. If the customer does not require fiber splicing, the splicing tray can be removed.

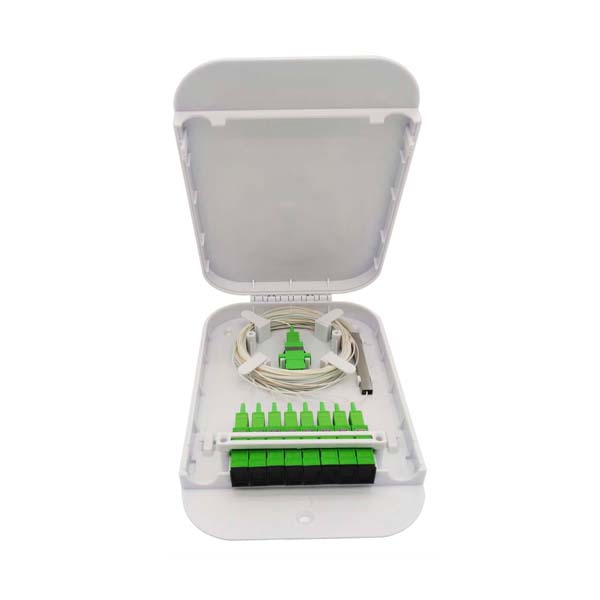

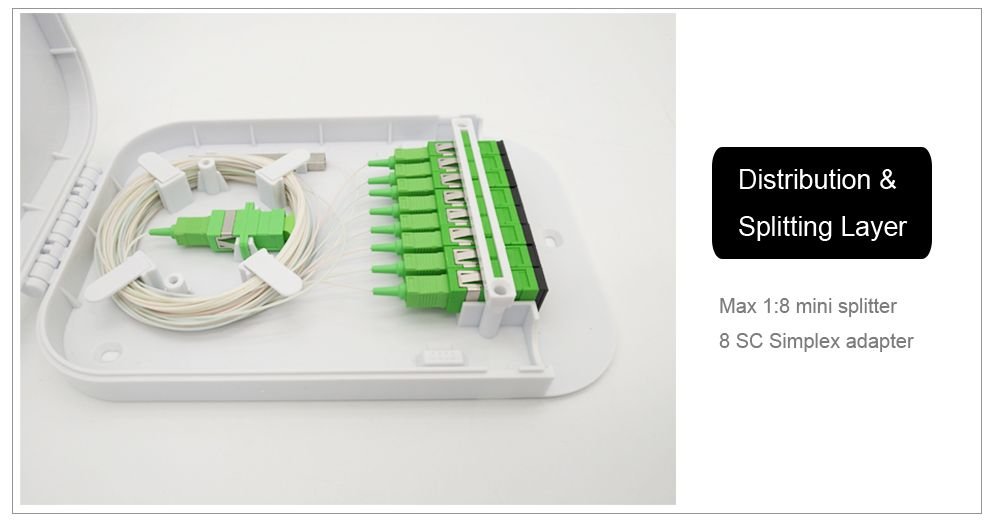

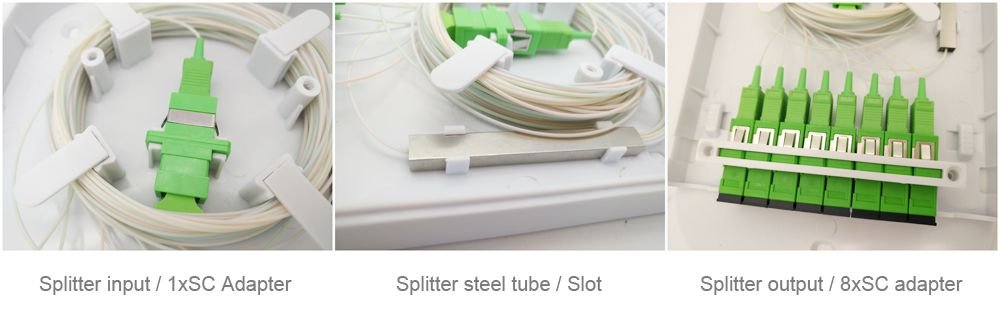

A 1:8 splitter can then be installed directly. The input fiber pigtail of the splitter can be secured in the middle of the winding ring, where a dedicated adapter slot is designed. The 8 sc output pigtails of the splitter are directly inserted into the pre-designed adapter slots. The splitter’s steel tube also has a dedicated slot design for easy fixing.

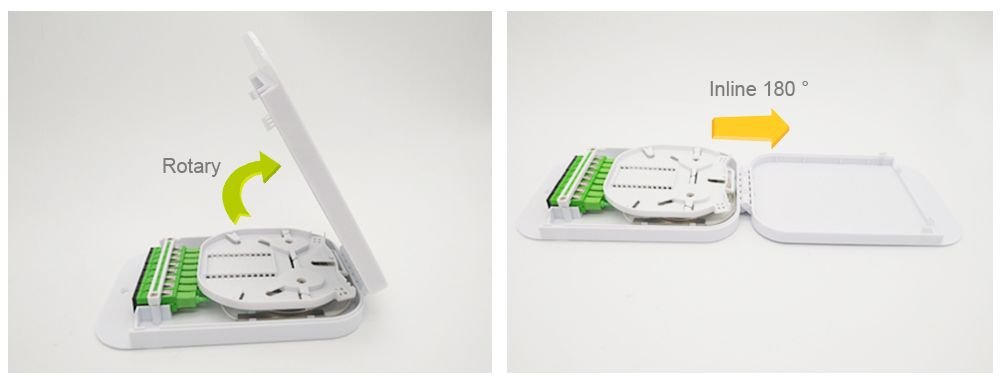

The lid and base are connected with a hinge design, preventing them from separating or falling off. The opening angle can be adjusted according to customer needs, up to a maximum of 180 degrees.
Although this fiber optic panel is only suitable for indoor wall mounting, its internal design is unique, with each functional section clearly defined and complete, making it the perfect partner for FTTH, FTTB, FTTP, and other home, campus, enterprises installation applications.
