Description
Optical Termiatino Box Features
- Box cover and bottom is hinge connected eacy to open and close.
- Wall mounted with screws, kits with standard accessory bag.
- Bottom to bring the feeder cable into the box, top for cable distribution into 8 subscribers with sc port.
- High strength plastic material, non toxic and dermatologist safe.
- The box can use for a minimum period of 20 years.
- Splice tray with 24 cores single fiber fusion splice with cover to protect.
Optical Specification
| Model | FTB108C |

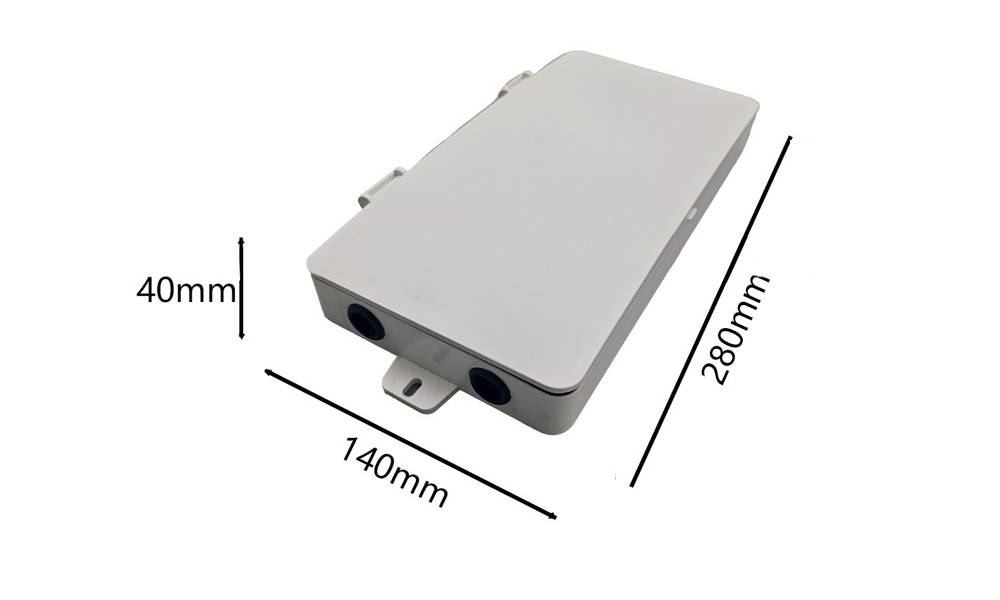

| Dimension (W*D*H) | 280*140*40mm |
| Max.Capacity | 24core (single fiber) |
| Cable ports | 2 in, 8 out |
| Cable diameter | In:Φ10mm |
| SC adapter qty | 8 SC simplex |
| Splice tray quantity | 1 pc 24F tray |
| Color | White |
Optical Termiatino Box Details

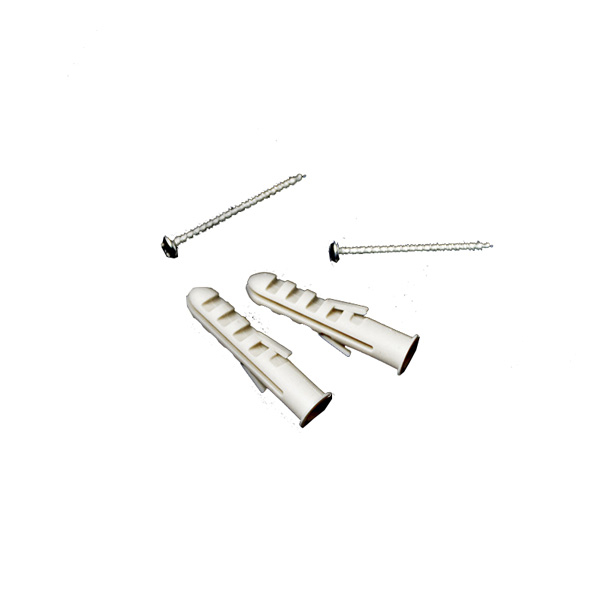

FTB108C standard accessories include expansion screw, sleeve, nylon tie, etc. And the box is large size at 280*140*40mm, which is large space for cable winding and easy to operate.

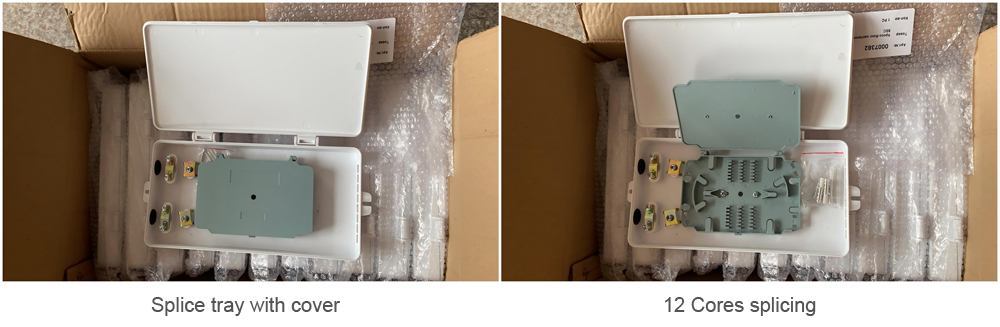

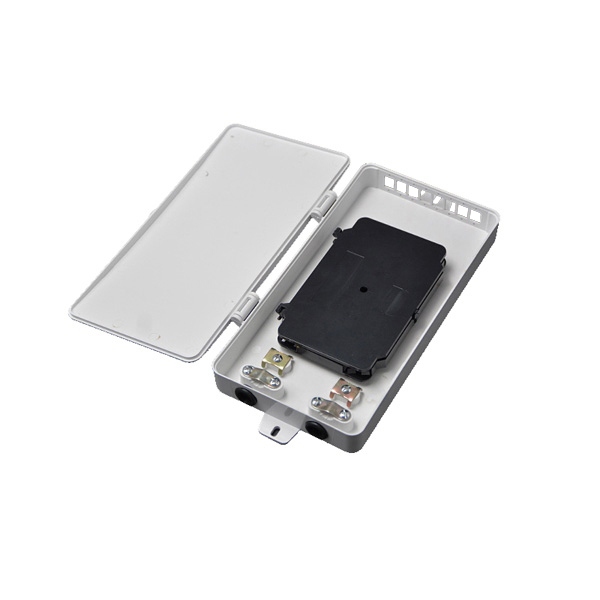

Each optical terminal box will configure with 1 splice tray with lid, and the accessory bag will be put inside of the box. You can maximum splice 12 cores single fiber in a box. There are cable fixtures for the cable enter and exit.

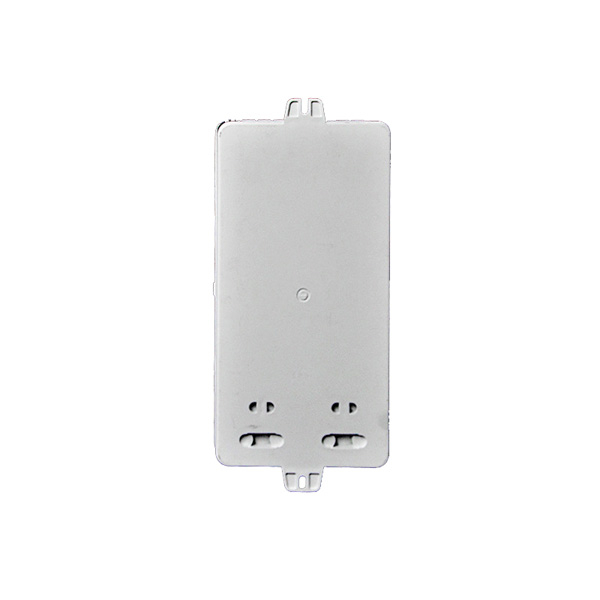

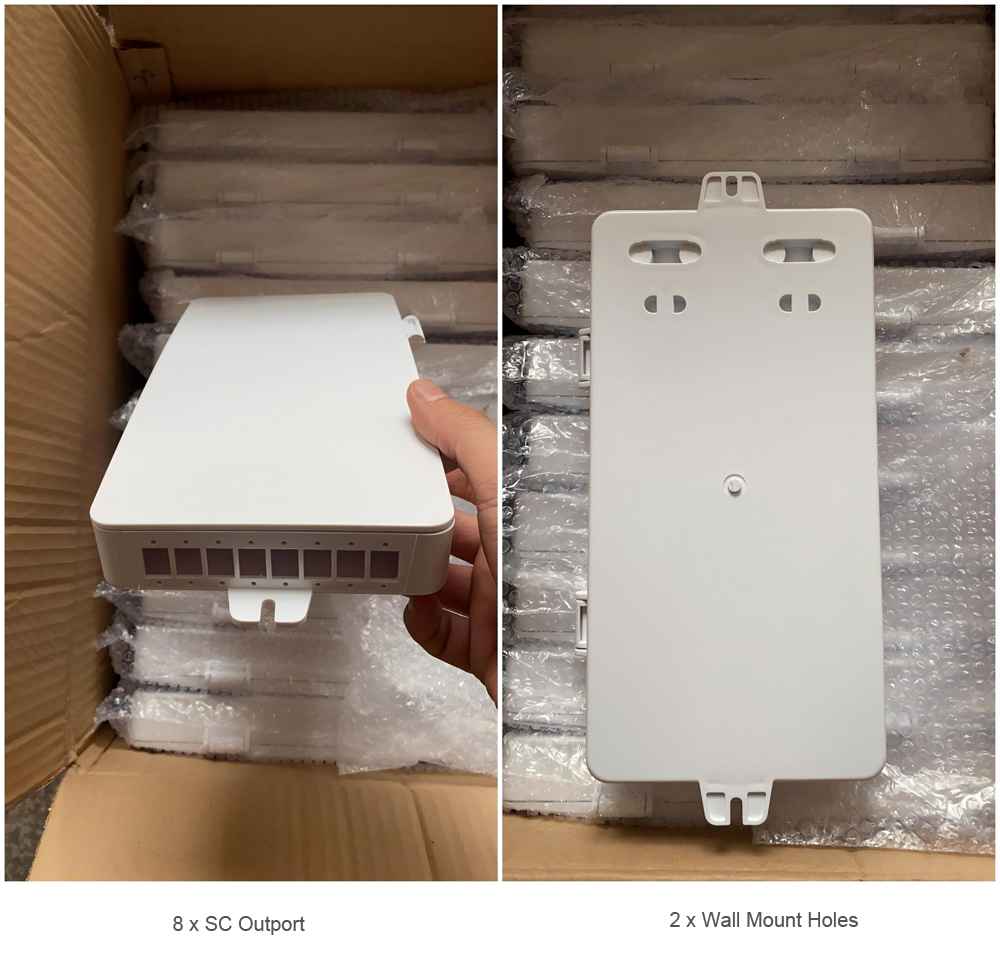

The optical termination box with a hinge desig with dover, wall mounted with 2 screws. And top cable enter with 2 round cable ports, and bottom for cable exit with 8 SC adapter, you can bring cable downward to 8 subscribers with drop cable or pigtails. There is adapter mounting holes to fix the flange, but you can use adapter without flange as well.
