Description
Features of Netway Fiber Termination Box
- FTTH indoor wall mount, home or work area
- Embedded surface frame, easy to install and disassemble

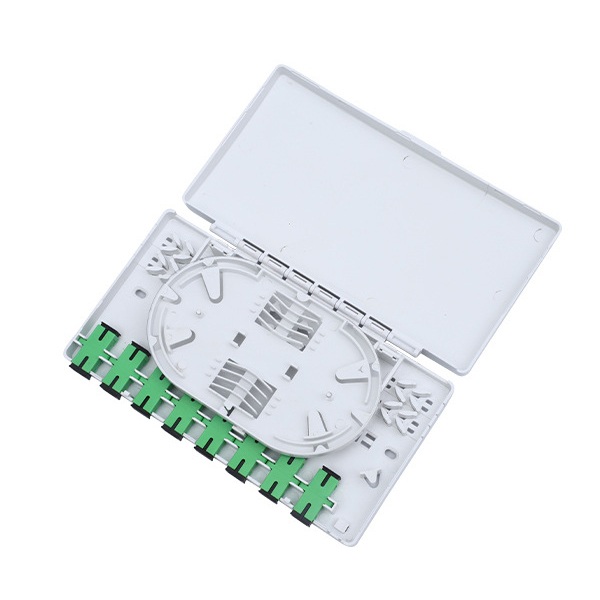

- Integrated with fiber cassette and cable management rods
- 8 pcs SC simplex adapter or LC duplex adapter, 8 cores splicing sleeve holder
- High strength engineering plastic, long lasting
- Dust-proof, and ROHS proof with IP45 protection level
- Front 1port cable enter and 8adapter outs, both sides are 4pcs drop cable exit
- Laser mark, Logo print position reserved on the lid
- Top cover and the bottom hinge design, and 180℃ flat open
Specification
| Model | FTB108B |
| Dimension (A*B*C) | 205*110*28mm |
| Max. Capacity | 8 core (single fiber) |
| Cable ports | 1in, 8out |
| Cable diameter | In:7-10 mm, out:2x5mm |
| Adapter | 8 SC / LC duplex |
| Color | White |
| Splitter | Mini module 1×8 splitter |

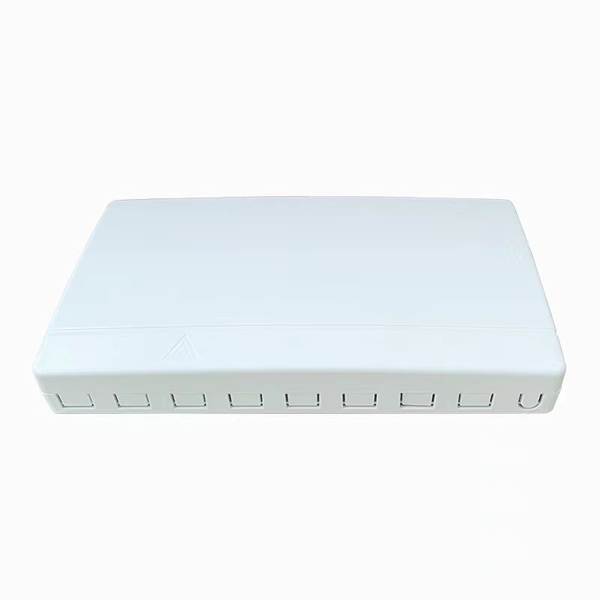

Netway Fiber Termination Box Details

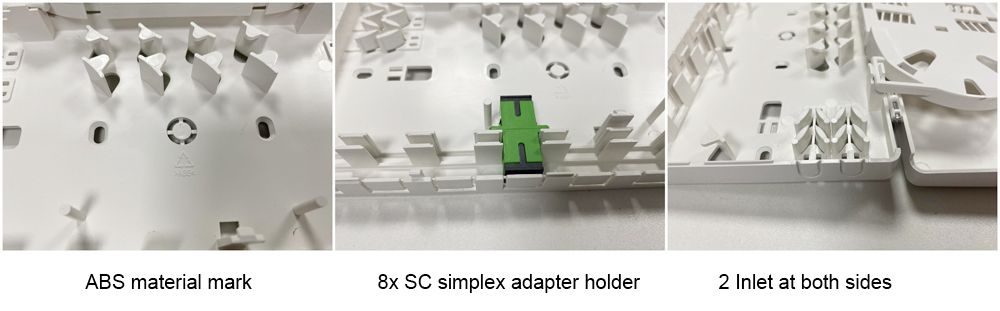

The 8 port wall-mounted terminal box manufactured by Yingda can accommodate 8 drop cables and is suitable for installation in corridors. The fiber optic cable enters from the left and right ends at the bottom, allowing for direct connection. Both the cable entry and exit points have cable fixing devices and ample winding space. If not all 8 core fibers is not needed immediately, the original plastic cover can be kept in place; when needed in the future, simply remove the cover and insert the fiber optic adapter.

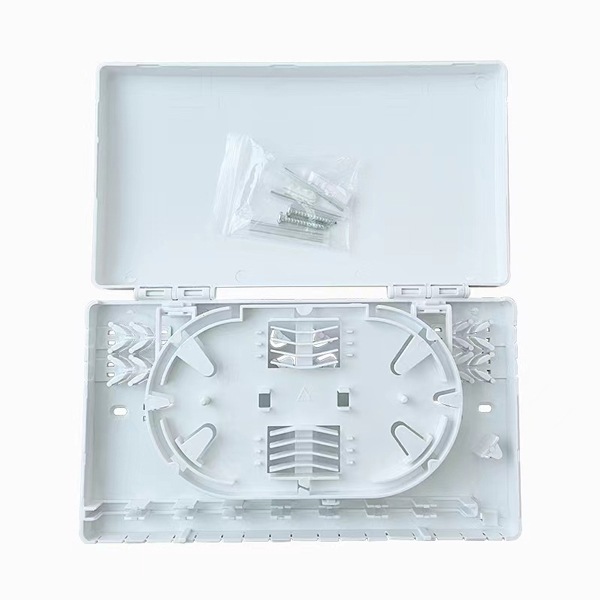

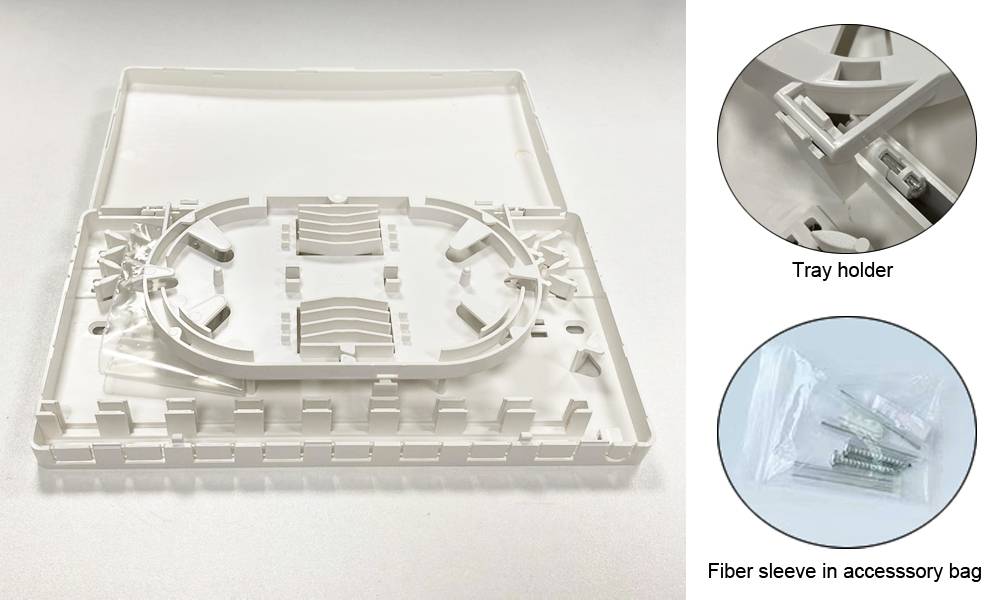

The box contains a removable plastic fiber optic splicing tray, 8 heat-shrinkable tube slots, and one slot for a 1*8 fiber optic splitter (60*7*4mm) in the middle. It is suitable for direct splicing of fiber optic pigtails and cables, or for faster wiring by a 1:8 fiber optic splitter. Fiber optic heat shrink tubes and wall mounting screws are included in the standard accessories package as below.

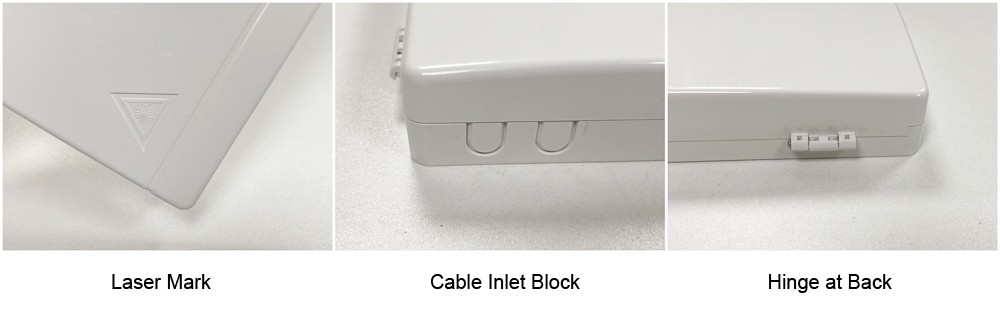

The wall box comes with a laser warning label, reminding customers to be careful of the laser during operation to avoid injury. The lid and base feature a hinge design, preventing them from easily detaching when opened, making installation and operation simple.
The wall fiber box has ample internal space and plenty of room for fiber routing, allowing the use of fibers with a large bending radius, eliminating the need for bend-sensitive fibers and thus saving on cabling costs. Our company can assist with installing adapters, pigtails, or splitters inside the box and properly managing the fiber cables.
