Description

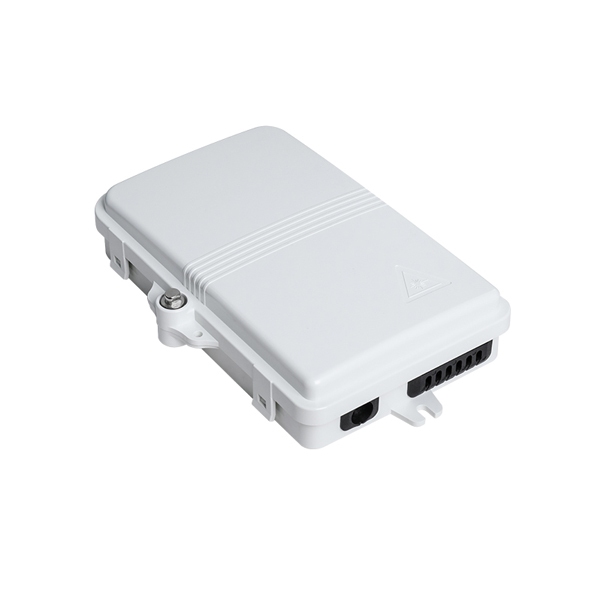

This fiber optic termination box is 6 cores fusion splice with a splice tray, and 1:5 splitter distribution with SC connectors on the bottom, and 1in 6out drop cable terminal box. It is widely used in indoor or outdoor wall mount application.
Features
- FTTH indoor outdoor wall mount, home or work area
- Embedded surface frame, easy to install and disassemble

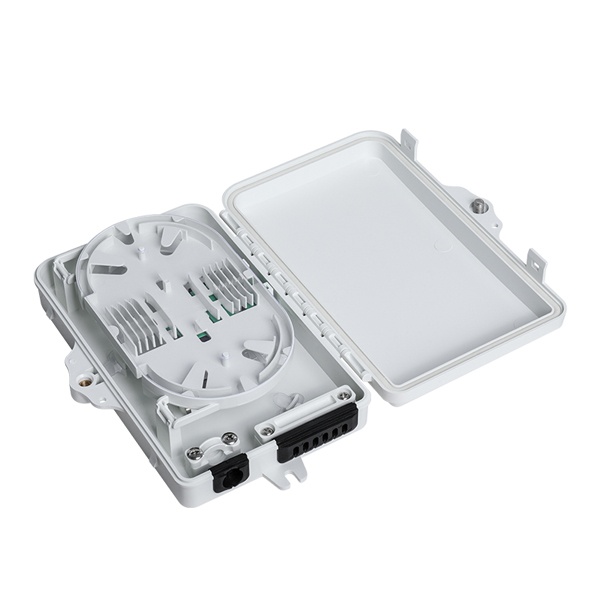

- Integrated with fiber cassette and cable management rods
- 6pcs SC LC duplex adapter, 8 cores fusion splice holder
- High quality engineering plastic, brand new material
- Dust-proof, ROHS proof with IP45 protection grade
- 1 uncut cable entry for cable in and out without cutting
- Laser mark, Logo print position reserved on the lid
Specification
Model | FTB106C |
Dimension (A*B*C) | 186*116*41mm |
Max.Capacity | 6core (single fiber) |
Cable ports | 1in, 6out |
Cable diameter | in:7-10 mm, out:2x5mm |
Adapter | 4 SC / LC duplex |
Standard Accessory: 2*expansion screws, 2*sleeve(optional)
