Description
Features of Fo Termination Box
- FTTH indoor wall mount, home or work area
- Embedded surface frame, easy to install and disassemble
- Integrated with fiber cassette and cable management rods
- 4 SC/LC duplex adapter, 2pcs fusion splice holders
- High quality ABS engineering plastic
- Dust-proof, and ROHS proof with IP45 protection level
- 2pc cable entrance straightly for cable in and out without cutting
- 4pcs drop cable entrance with holders
- Laser mark, Logo print position reserved on the lid
Specification
| Model | FTB104N |
| Dimension (A*B*C) | 165*90*25mm |
| Max.Capacity | 4 core (single fiber) |
| Cable ports | 4 ports |
| Cable diameter | in: mm, out:2x5mm |
| Adapter | 4 SC / LC duplex |
| Color | white |
| Material | ABS |
FO Termination Box Details

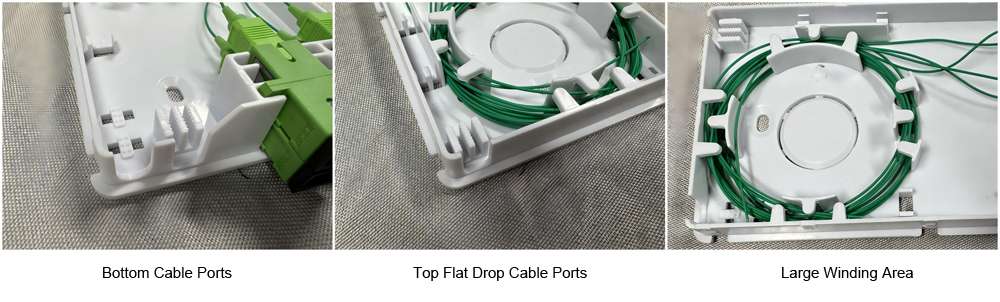

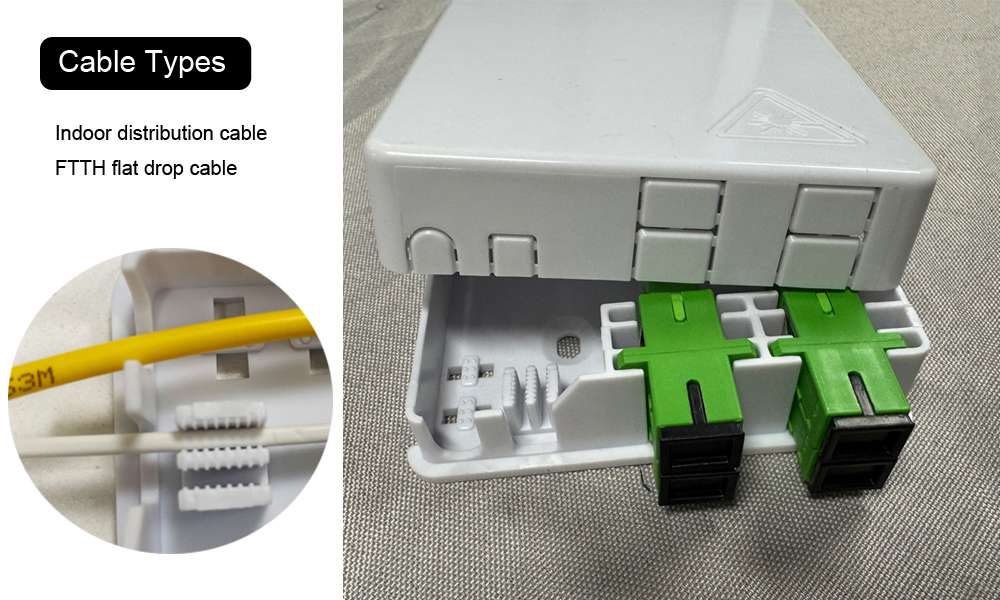

The new FO termination box is wall-mounted, allowing fiber optic cables to enter from the top or bottom. It supports both round distribution cables and flat drop cables. Round cables can be secured with cable ties, with pre-drilled holes. The drop cable has a dedicated flat holes with built-in gears for a more stable and secure hold, preventing it from easily falling off.
If the adapter and fiber optic pigtails are not pre-installed, the plastic baffle to block the inlet and outlet holes will be reserved which prevent dust from entering. The box has ample space, adapter with flange or without flange are optional.

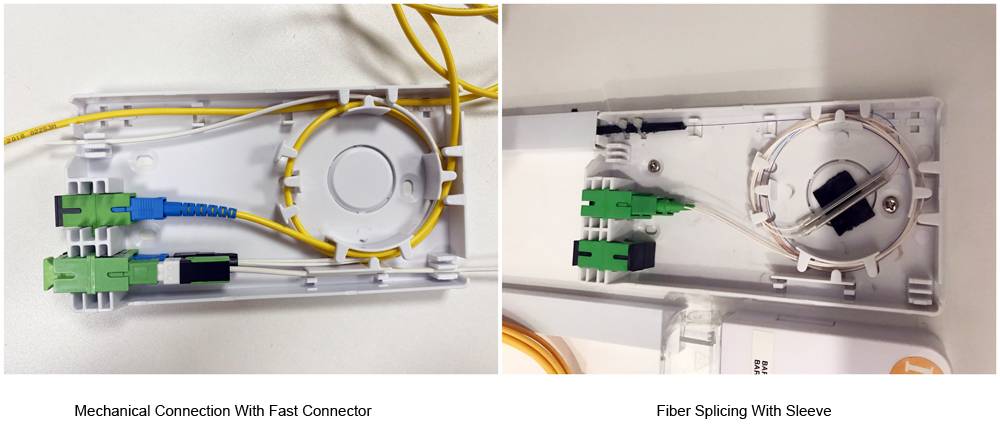

Due to its unique design, this panel can directly introduce multi-core distribution cables for branching out, or directly introduce drop cables, and then install quick connectors for mechanical connection, see left picture. Alternatively, multi-core fiber optic cables can be introduced into the box for fusion splicing, see right picture.

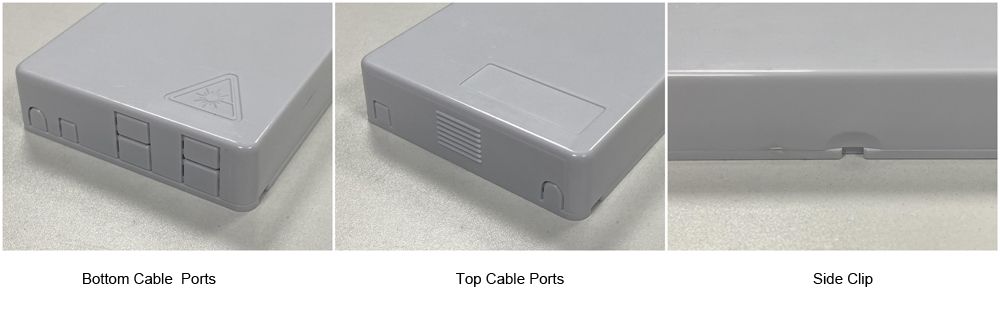

The wall outlet is made from high-strength engineering plastic, virgin materials without the addition of industrial waste. It features a built-in laser-engraved logo, eliminating the need for additional stickers. Space is provided for customer logos or model numbers on appearance to enhance brand recognition and promotion. The box can be opened by gently pressing down from the center on both sides.
Our company support pre-terminating adapters and pigtails for you; fiber optic cable length and color can be customized. The interior space is large, making on-site construction more convenient and faster. The fiber optic bending radius is more optimized.
