Description
Features of Fiber OTB Box
- FTTH indoor wall mount, home or work area
- Embedded surface frame, easy to install and disassemble
- Integrated with fiber cassette and cable management rods
- 4 SC/LC duplex adapter, 8cores fusion splice holder
- High quality ABS+PC engineering plastic
- Dust-proof, and ROHS proof with IP45 protection level

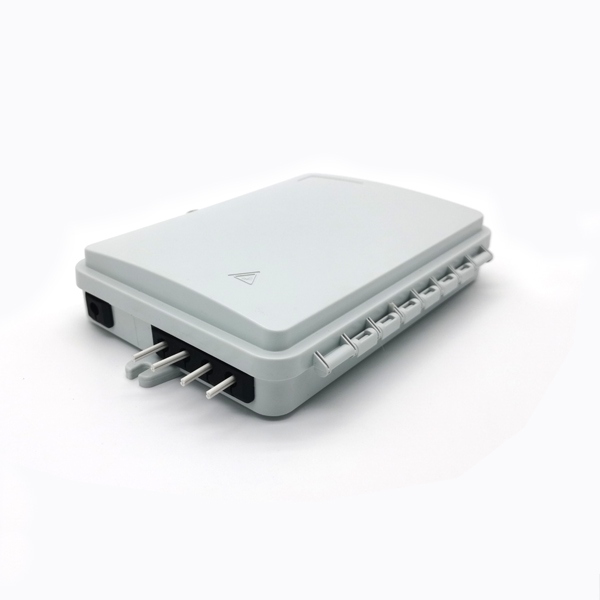

- 2cable entry for cable in and out without cutting
- Laser mark, Logo print position reserved on the lid
Specification
| Model | FTB104M |
| Dimension (A*B*C) | 190*55*41mm |
| Max. Capacity | 4 core (single fiber) |
| Cable ports | 2in(1cable gland, 1 rubber seal port), 4out |
| Cable diameter | in:12 mm, out:2x5mm |
| Adapter | 4 SC / LC duplex |

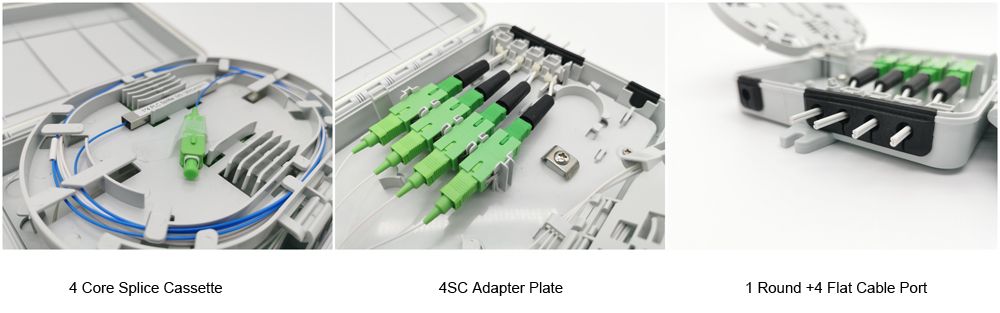

4 Fiber OTB Box Detail

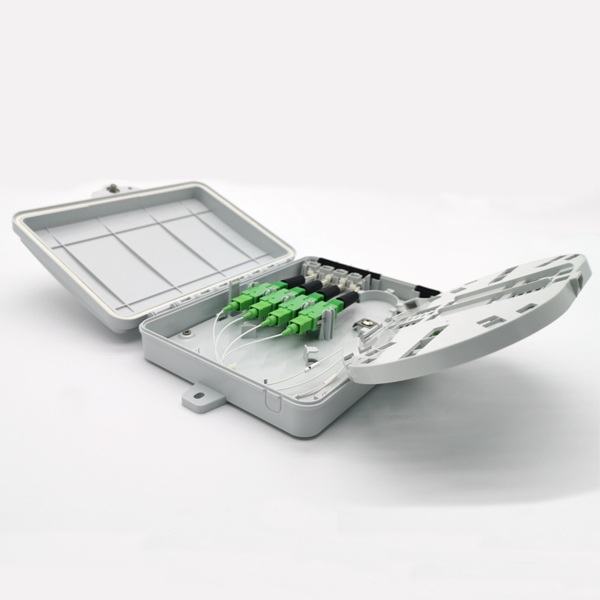

The FTB104M fiber optic terminal box can use a 1:4 fiber optic splitter. Only one fiber needs to be introduced to evenly distribute the optical signal to four users without fusion splicing, saving backbone cable resources, accelerating cabling, and allowing for rapid pre-installation maintenance, thus reducing subsequent maintenance costs. Internally, it features a removable fusion splice tray, two splitter steel tube mounting slots, and an 8-core single-core fiber optic splice protection slot, supporting 40mm, 45mm, or 60mm fusion splice protection sleeves.
The bottom of the box has fiber optic adapter slots for installing four SC adapters (without flange). In the cabling area, the fiber optic drop cable is directly inserted through the rubber seals and pre-terminated with the SC connectors. Both the cable entry and exit are equipped with cable securing devices to effectively prevent fiber movement that could damage the fiber or cause excessive attenuation.
A significant feature of this fiber optic panel is that the fiber optic cable can run straight through the box from top to bottom without needing to be cut. This reduces fiber optic cabling time and costs.
And this fiber optic cable box features a smooth design, and we can silkscreen the customer’s logo or other desired information onto the box exterior.

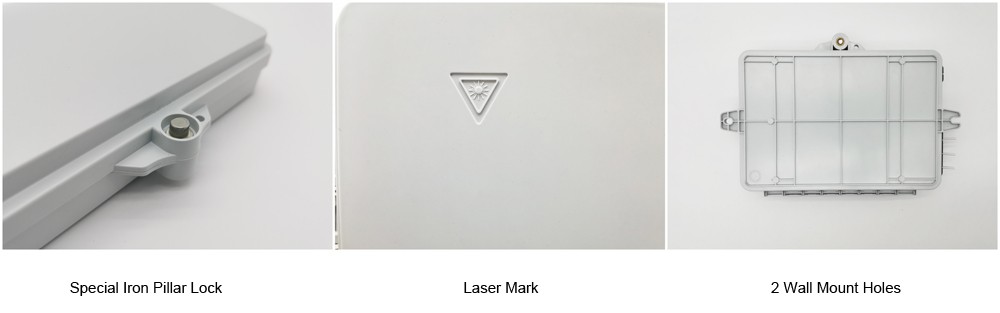

The box requires a special metal key to open, preventing unauthorized access and damage to the fiber optic infrastructure after outdoor installation. The standard configuration is wall-mounted installation, along with the necessary mounting hardware. For other customer needs, please contact our sales staff directly.
