Description
Features of Fiber Termination Enclosure
- Made of high quality plastic, anti-aging, light weight;
- 4 SC simplex or 2 LC duplex adapter slots are set at the output end, and is equipped with dust plugs as;
- required, which meets the direct splicing of 1 ～ 4 single-core pigtails;
- Three-layer partition structure of the box makes 3 clear-cut area for cable entry, fiber pigtail storage;
- and splicing, which avoids crossing lines, and is convenient to lay and maintain the optical cables;
- Multiple cable entry holes on the left, right and upper part of the box meet the flexible and variable;
- routing mode in the construction field;
- Indoor wall mounting.
Specification
| Model | FTB104L |
| Dimension (A*B*C) | 86*86*34mm |
| Max Capacity | 4 core (single fiber) |
| Cable ports | 6PCS |
| Cable diameter | in:4 mm |
| Adapter | 4 SC / LC duplex |
Fiber Termination Enclosure Details

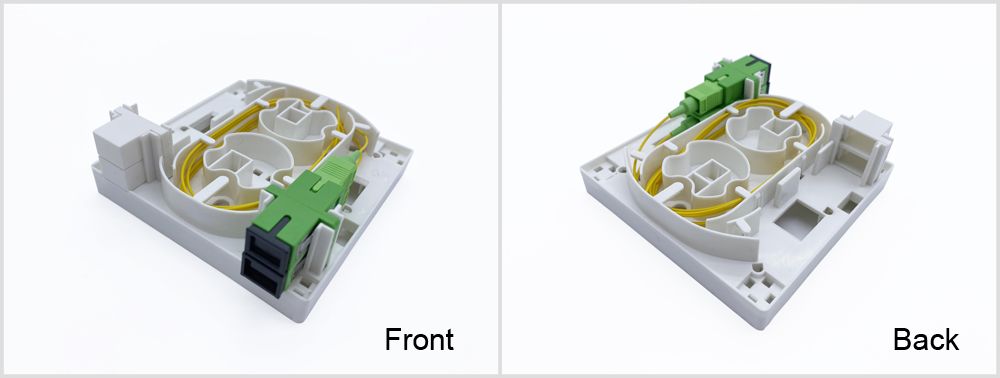

Yingda can pre terminated SC adapters and SC pigtails for customers in factory. Pigtails of 0.9mm in diameter and up to 1 meter in length are acceptable. The center of the box is the cable winding area. 2mm or 3mm fiber optic cables cannot be installed. Due to limited panel space, we recommend customers use G.657A2 or G.657B3 fiber optic cables.

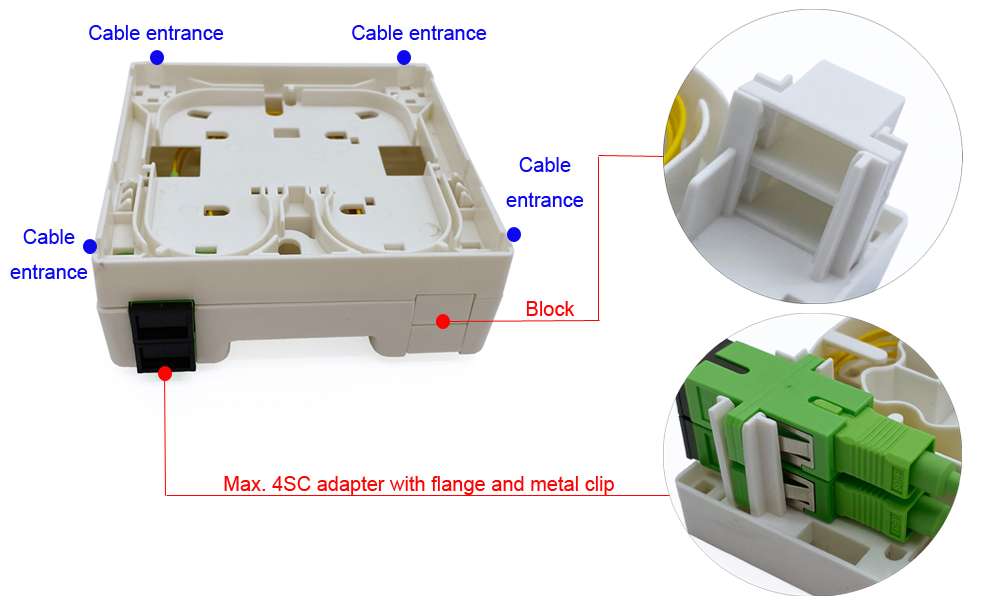

The back of this fiber optic panel features cable entry holes on three sides, with pre-installed blocks at the factory. During on-site installation, the cable can be cut with a blade for insertion. After wall mounting, the fiber optic cable runs out from the bottom of the box, with two SC adapters on each side. The terminal connects to four drop cables or indoor patch cables. If the ports are not in use, plastic covers are provided to prevent dust from entering. The fiber optic adapters must also have mounting ears to ensure a secure locking and prevent them from falling out.

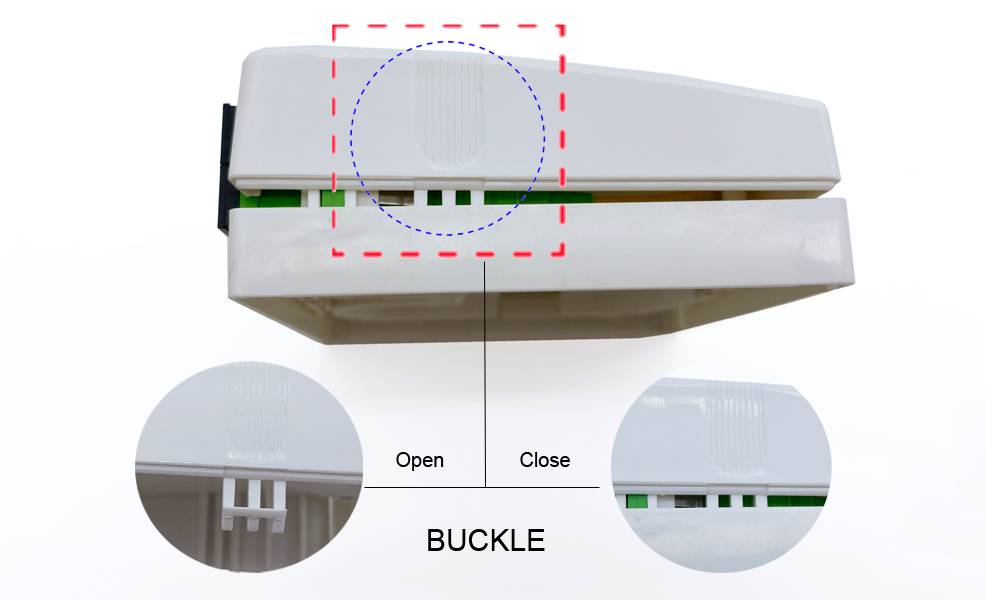

The fiber ternination enclosure box is very easy to open, requiring no tools. Simply press the non-slip area in the middle of both side with your fingers to release the internal latches, thus separating the lid and bottom. To close, simply align the latches and press down until they are fully engaged.
