Description
Features of FTB Fiber Termination Box
- FTTH indoorwall mount, home or work area
- Embedded surface frame, easy to install and disassemble
- Integrated with fiber cassette and cable management rods
- 4 SC/LC duplex adapter, 4cores fusion splice holder
- High quality ABS+PC engineering plastic, laser mark and strength strips on lid for better protection
- Dust-proof,and ROHS proof with IP45 protection level
- 1cable gland or 1uncut port for cable entry.
- Logo print position reserved
Specification
| Model | FTB104H |
| Dimension (A*B*C) | 190*120*44mm |
| Max.Capacity | 4 core (single fiber) |
| Cable ports | 2in(1cable gland, 1 rubber seal port), 4out |
| Cable diameter | in:12 mm, out:2x5mm |
| Adapter | 4 SC / LC duplex |
Fiber Termination Box Details

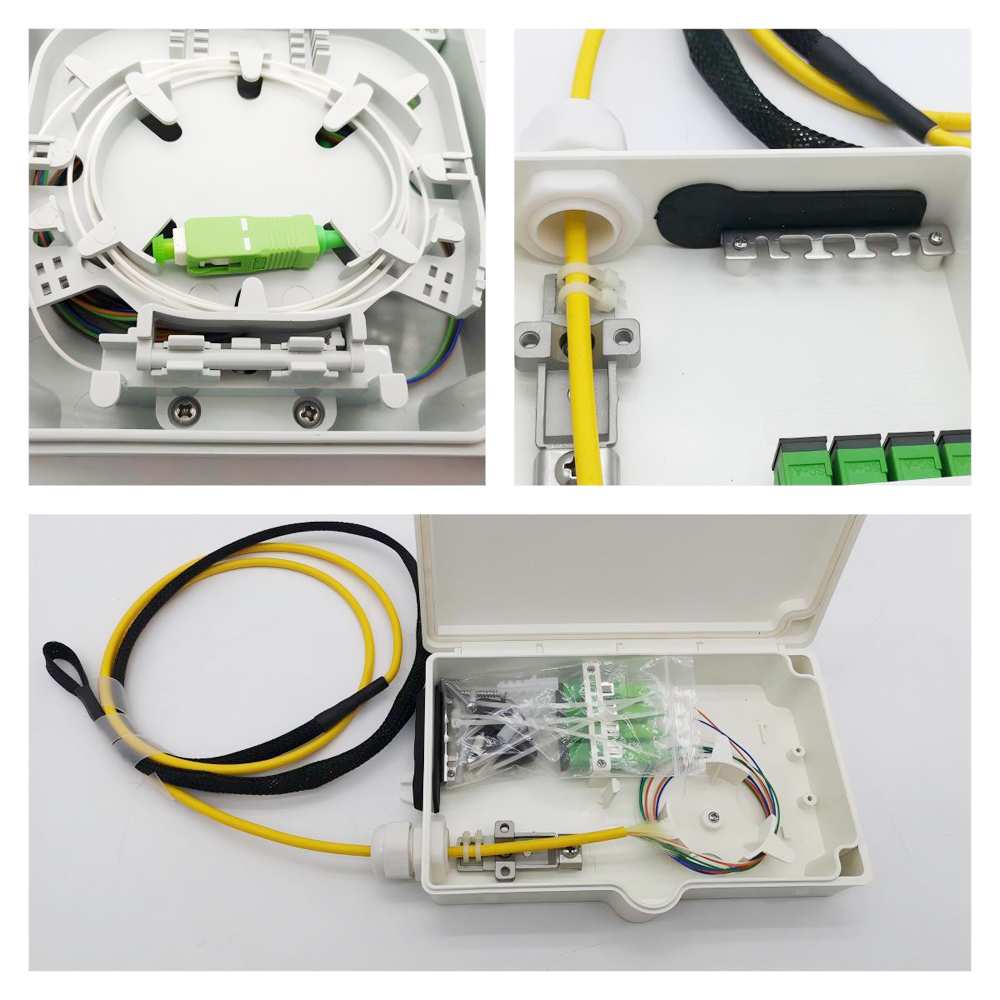

This wall fiber optic termination box comes with a 4-core fiber optic splice cassette and four splice slots, which can accommodate 40mm fiber optic heat fusion protection tubes. Below the splice cassette are the adapter bracket and cable management areas. If a fiber optic splitter is configured inside the box, the splitter’s input pigtail can be wound onto the splice tray, and the output connectors and pigtails of the splitter can be secured below it. See the diagram below.

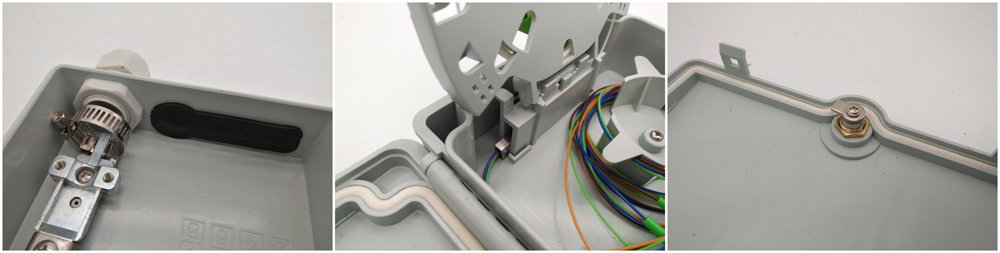

This optical roseta box is suitable for steel tube fiber optic splitter, with the steel tube placed directly below the fusion splice tray base and featuring a dedicated slot design. Fiber optic cable entry and exit have cable clamps and hose clamps, securing the cable reinforcement and protecting the bare fiber after the outer sheath is stripped. The box itself is made of high-strength engineering plastic and features PG waterproof connectors, sealed rubber plugs, and high-performance sealing strips, ensuring it can be used outdoors with an IP65 protection rating.
The internal structure of the cable termination box can be adjusted according to customer needs. Since the fusion splicing tray is fixed to the bottom with two screws, the base and fusion splicing tray can be removed directly if the customer does not require splicing. Drop cable securing devices can be installed at the fiber optic cable exit point.
Each fiber optic terminal box is individually packaged and includes all the necessary accessories for installation, such as: opening key, fiber optic heat shrink tubing, white nylon cable ties, expansion screws, white tubing, hose clamps, etc.
