Description
Features of OTB Optical Termination Box
- FTTH indoor wall mount, home or work area
- Embedded surface frame, easy to install and disassemble
- Integrated with fiber cassette and cable management rods
- 4 SC/LC duplex adapter, 6 cores fusion splice holder
- High ABS+PC/ABS engineering plastic, spring lock for easy operation
- Dust-proof, and ROHS proof with IP45 protection level
- Support uncut cable entry and exit, maximum 11mm
Specification
| Model | FTB104F |
| Dimension (A*B*C) | 105*82*21mm |
| Max.Capacity | 4 core (single fiber) |
| Cable ports | 2 pcs |
| Cable diameter | 11 mm |
| Adapter | 4 SC / LC duplex |
FTB104F Otb Optical Termination Box Details
The entire otb box has a very simple structural design. Simply slide the lid protruding to the left, and the internal spring and bottom locking mechanism will release, allowing the lid to open. The entire box is made of high-strength engineering plastic, ensuring durability for over 20 years.

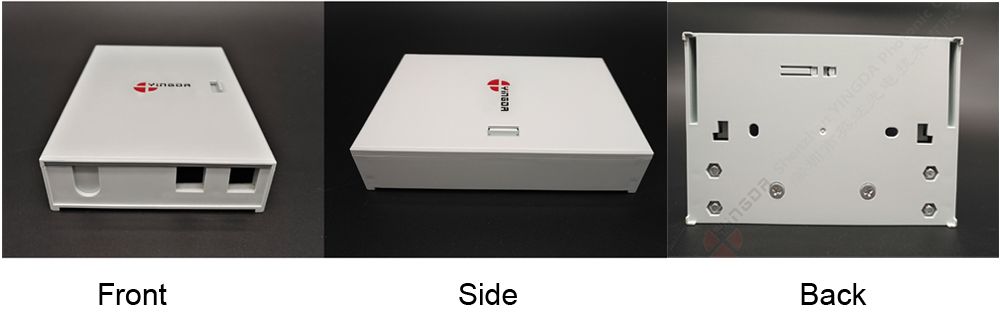

- The left side of the box has the main cable inlet/outlet, with one circular hole at the top and one at the bottom, equipped with a baffle. The fiber optic cable can run straight through the entire box without cutting it.
- The right side is the splicing and wiring area, with two square adapter outlets at the top and bottom.
- The back of the box has two wall-mounting screw holes for quick and easy installation.

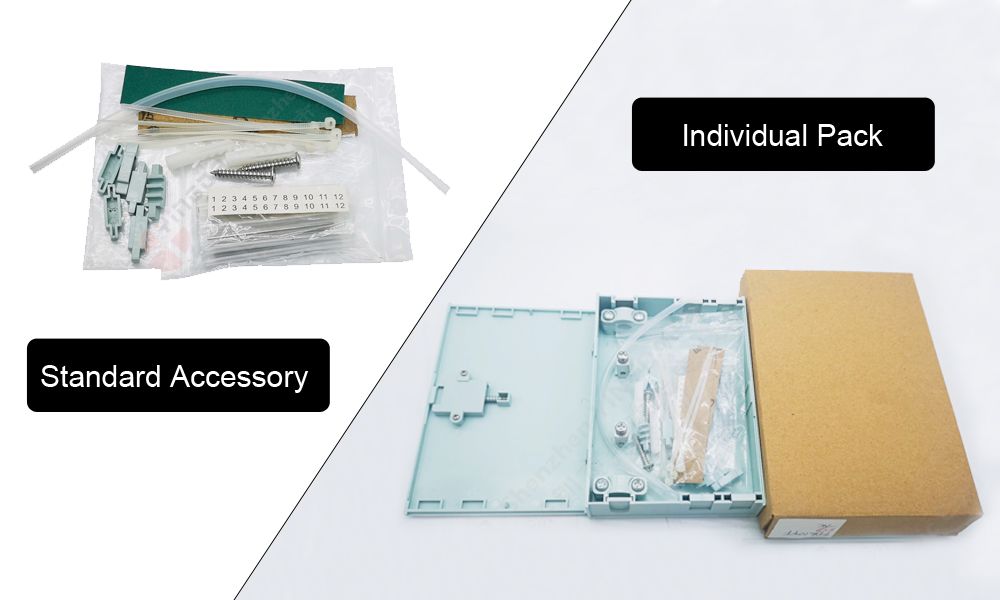

To ease your field construction, Yingda provides individual packaging boxes containing various accessories needed for on-site construction: white tubing, heat shrink tubing, cable ties, wall mounting screws, end caps, number labels, sandpaper, etc. Please inform us in advance if you have any other requirements!

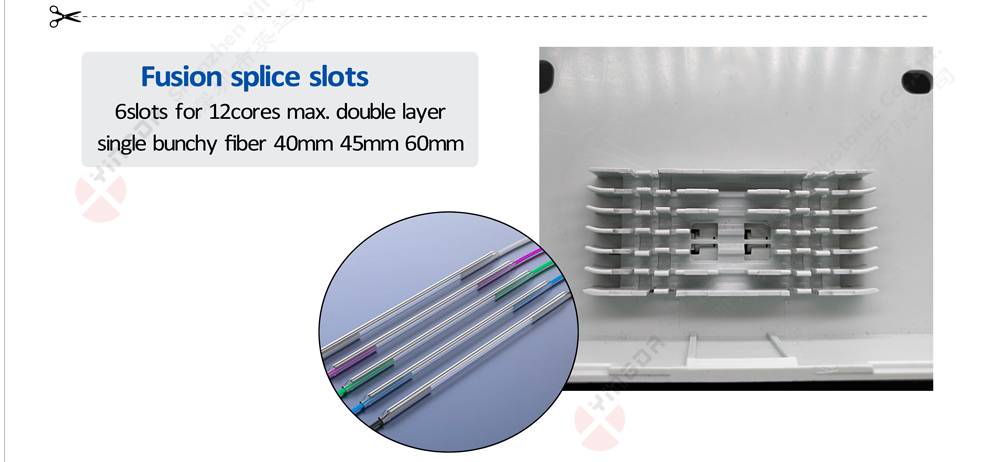

This small socket panel has 6 built-in slots for fiber optic heat shrink tubing, which can hold 6 pieces 40mm, 45mm, or 60mm single fiber splicing sleeves. It has a smooth, curved surface and a reasonable bending radius design.

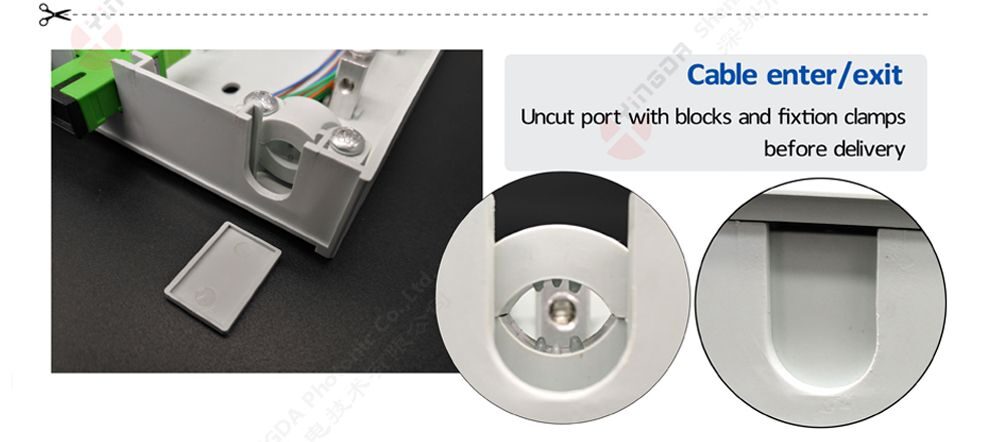

The fiber optic cable inlet and outlet are equipped with a fiber optic cable fixing device. When not in use, the device can be blocked with a plastic block to prevent dust from entering.
