PTO 4 Cores Plastic Ftth Fibre Terminal Box, Loaded With Sc Simplex Adapters, Pigtials Sc, Splice Tray.

Description

Fibre Terminal Box Features

• High strength plastic material PC+ABS
• Indoor wall mount or DIN rail mount, IP45
• Front, left or right cable entry is available
• 4 SC adapter port for fiber access termination with drop cable
• Easy wiring and management with a detachable splice tray
• Color identification for multi-fiber application

FTTH Terminal Box Specification

4 Cores Plastic Fibre Terminal Box Details

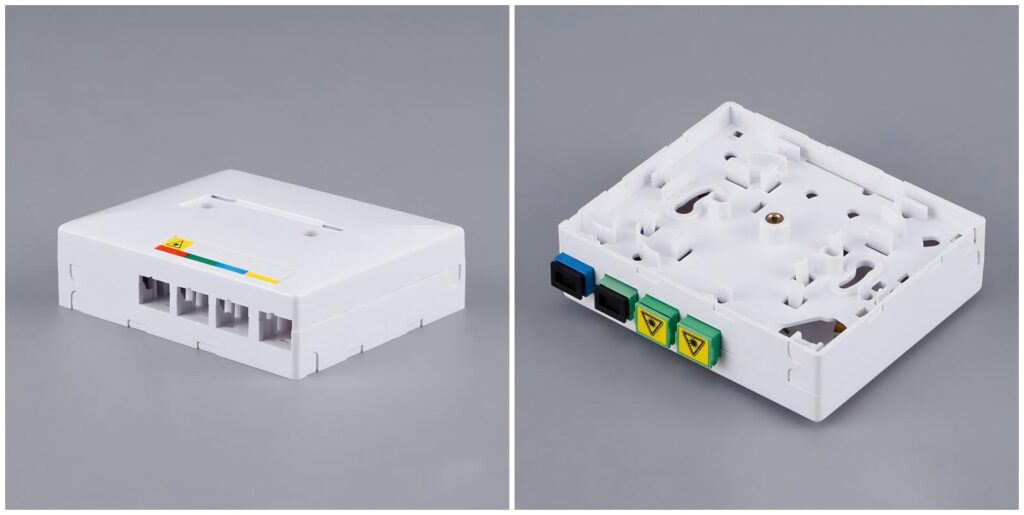

The main optical cable enter the fibre terminal box from the front or the sides, there is block design, in field construction, please cut off the blocks to bring the cable in. While the distribution cable access to each room or optical fiber equipment through the front 4 adapters.

The fibre terminal box lid and bottom are designed separately, with two screw holes in the center of the lid that can penetrate the entire box. Screws can be used for securing the box if needed.

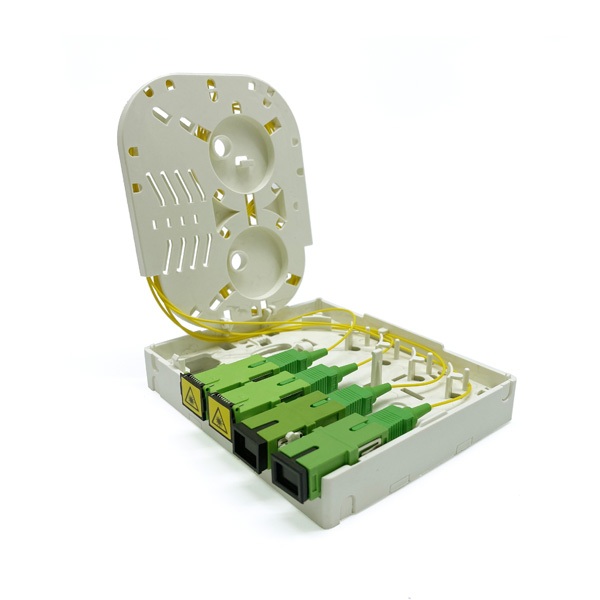

The entire box is double-layered, separating the fiber optic splicing and wiring sections, resulting in more rational space allocation and easier operation.

• The middle section is the fiber optic splicing area, allowing for cable winding and protection of the splice points, supporting up to 4 single fiber cores.

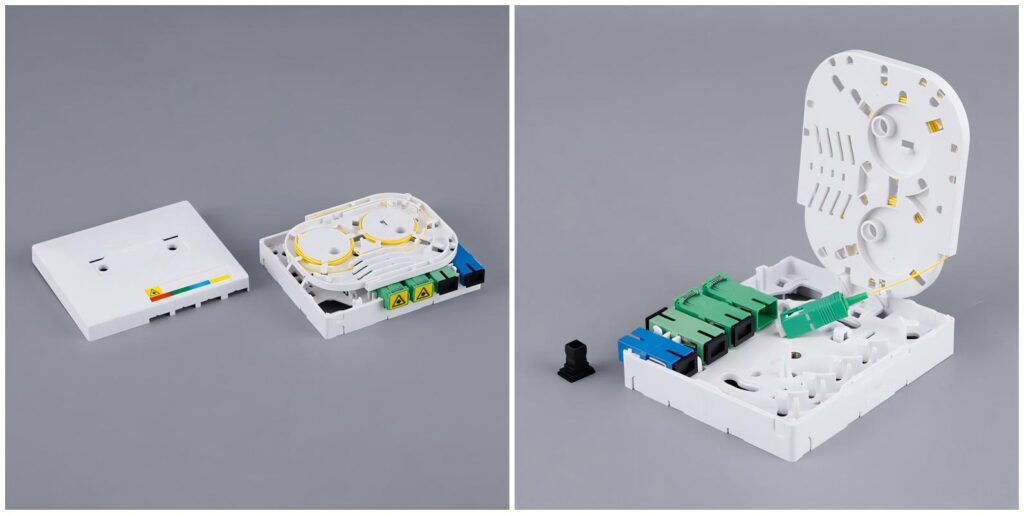

• The bottom is the cable wiring area, which can accommodate up to 4 SC adapters (without mounting ears). Standard adapters or auto shutter adapters can be selected, but only front shutter adapters are supported; side-shutter adapters are not supported.

The standard configuration of the Yingda PTO socket panel is wall mounting screws. Upon customer request, we can provide accessories such as plastic cable ties and fiber optic heat shrink tubing to facilitate fiber optic management and fixing.
