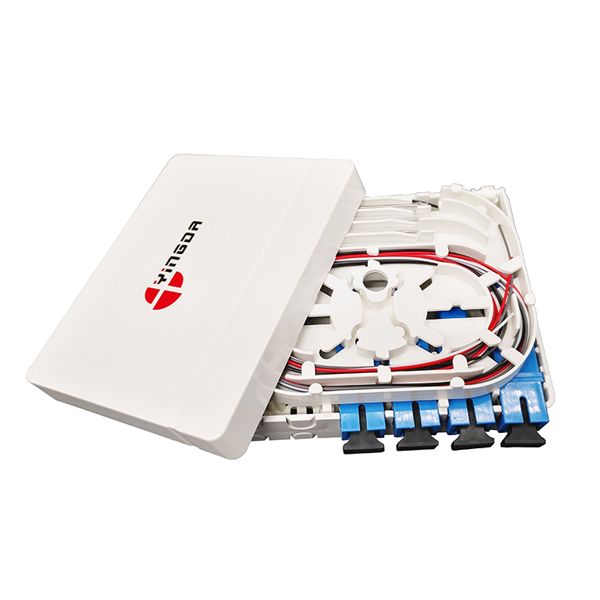

4 Port plastic terminal box fiber is used in the end termination of residential building and villas to fix and splice with pigtails. It can be installed on the wall, and adapt variety of optical connection styles. This fiber termination box can hold up to 4 pcs fiber optic pigtails and SC adapters, or LC duplex adapters or pigtails, the cable can go inside of the box from bottom or front side, 35mm DIN rail rack or wall mounted application,IP45 protection grade.
| Model | FTB104D |
| Dimension (A*B*C) | 100.5*80.5*28.8mm |
| Max. Capacity | 4 core (single fiber) |
| Cable ports | 4 pcs |
| Cable diameter | 2x5mm |
| Adapter | 4 SC / LC duplex |

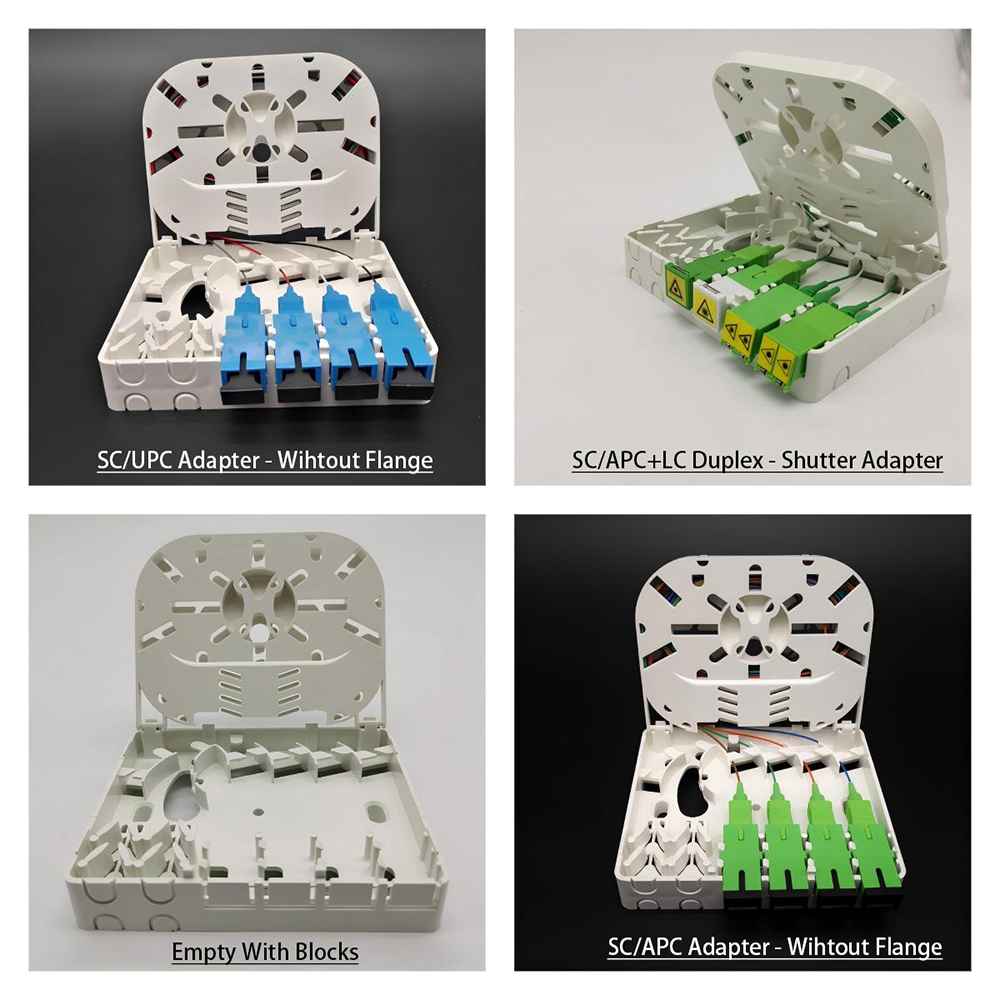

4 Port Fiber terminal box with 4 SC port design, you can use SC UPC APC connectors or LC duplex connectors, both should be without flange, due to the home use outlet limited space. Meanhile, you can use shutter adapters to automatically close the cap if no use, however, please keep in mind that should be FRONT shutter, no SIDE shutter.

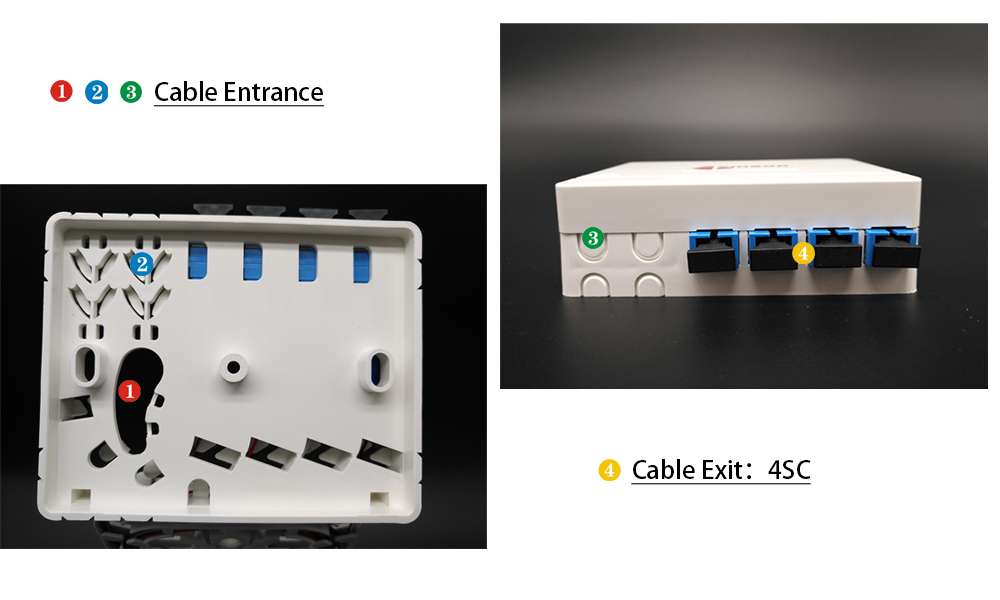

This indoor fiber optic cable enter this 4 port FTTH terminal box from front side or can go directly from the bottom hole of the box, which suitable for fiber optic cable embedded in walls, not laying optical cables on the surface of the wall. And after terminated with connector or splicing, we can bring out of the signal from 4 SC adapters outports to each rooms.

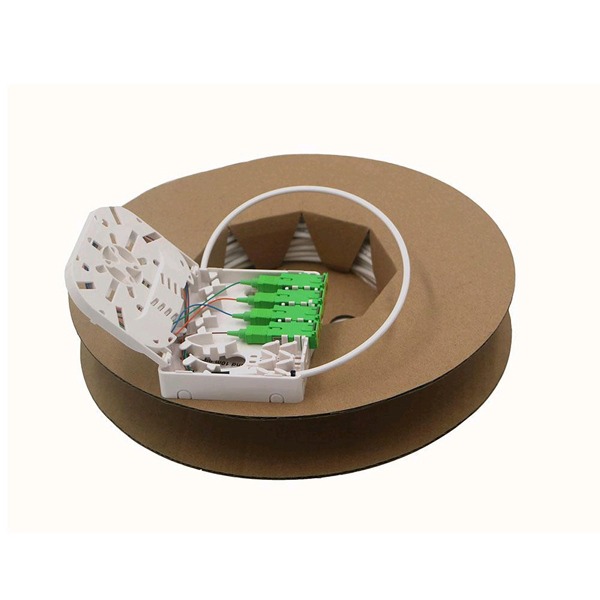

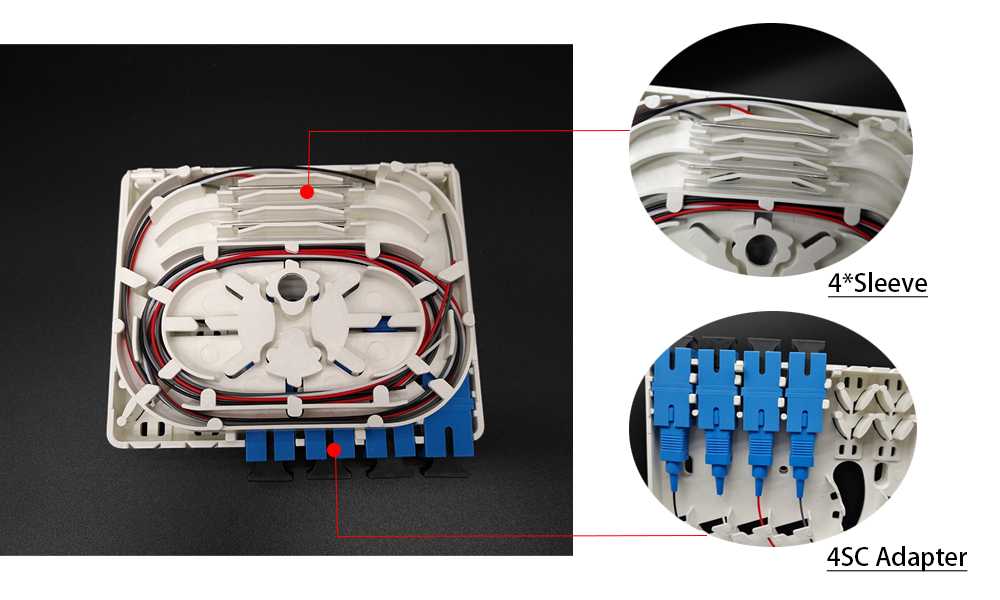

Yingda can pre load the adapters and pigtails in factory for customers, to save your filed installation time and labour cost. This outlet have a mini cassette with 4 slots to hold the splicing sleeves in place, recommend 40*1.0mm fiber sleeve.
This 4 cores plastic terminal box can be wall mounted with screws directly, or with a DIN rack mounting brackets at back for rack mount on patch panels. Flexible use.
