Description
Features of Termination Box For Fiber Optic Cable
- FTTB FTTP indoor wall mounting in home or work area
- Embedded surface frame, easy to install and disassemble
- Integrated with fiber tray and cable management rods
- 4 SC or LC duplex adapter optional
- High strength engineering plastic, white or gray color
- Laser mark on the lid, 2clips on the back, no need key
- Dust-proof, and ROHS proof with IP45 protection level
- max. 1:4 mini plc splitter can be used.
Specification
| Model | FTB104B |
| Dimension (A*B*C) | 150*110*30 mm |
| Max. Capacity | 4 core (single fiber) |
| Cable ports | 2 pcs |
| Cable diameter | 7-10 mm |
| Adapter | 4 SC / LC duplex |
Termination Box Details

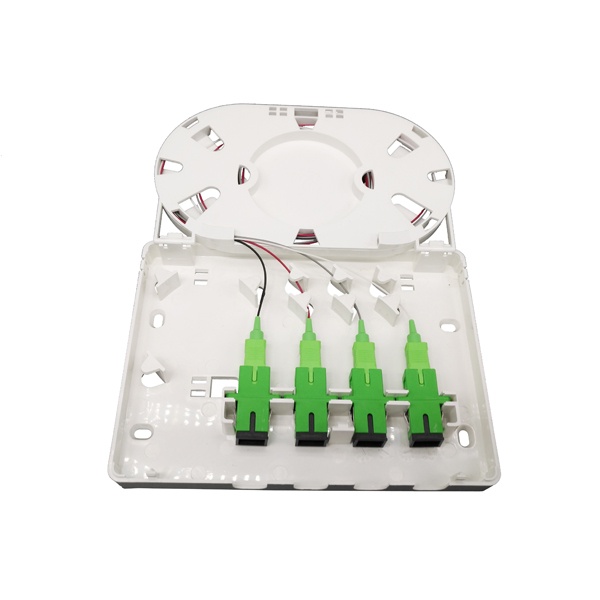

The fiber optic drop box comes with a detachable fiber optic fusion splice tray for easy assembly. It can accommodate up to four heat shrink tubing for splicing four single-core optical fibers.
The fiber optic cable can enter and exit through the left and right cable inlets/outlets for a straight-through connection. It comes with a dustproof shield at the factory, which can be cut off with a blade during on-site construction.
The 4 core cable termination box comes with four adapter outlets, allowing you to install four SC simplex adapters or four LC duplex adapters. Recommend to use adapters with mounting ears for a more secure fit and to prevent them from falling out.
Wall-mounted installation, equipped with 4 expansion screws with dowels, installation distance as shown in the figure below.

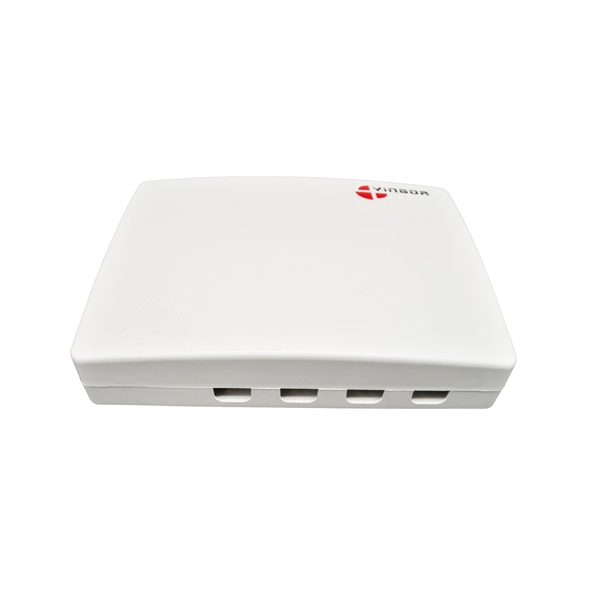

This hot selling fiber optic termination box is made of high-quality plastic, pressure-resistant and durable. The fiber optic bending radius is within a reasonable range, making it widely used in fiber-to-the-home, fiber-to-the-building, and other fiber optic access applications. It features a compact design and comprehensive functionality.
We support printing customer logos on the lid or other locations on the box itself. Multi color and black-and-white printing are available.
