Description

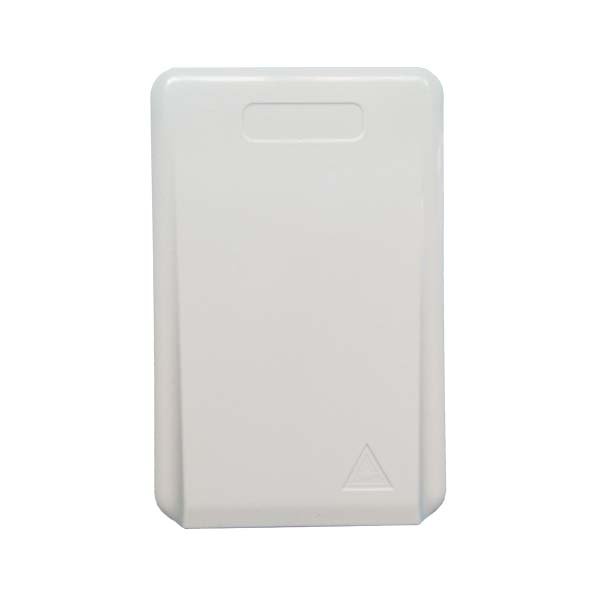

FDB102D fiber rossette box is able to hold up to 2 subscribers. It is used as a termination point for the drop cable, to connect with patch cable in FTTH indoor applications. It integrates fiber splicing, termination, storage and cable connection in one solid protection box.
Features
- Dust-proof design with IP-55 Protection level.
- Integrated with splice cassette and cable management rods.
- Manage fibers in a reasonable fiber radius conditi
- Easy to maintain and extend the capacity.
- Suitable for the fusion splice or mechanical splice.
- Embedded type surface, easy for installation and removal.

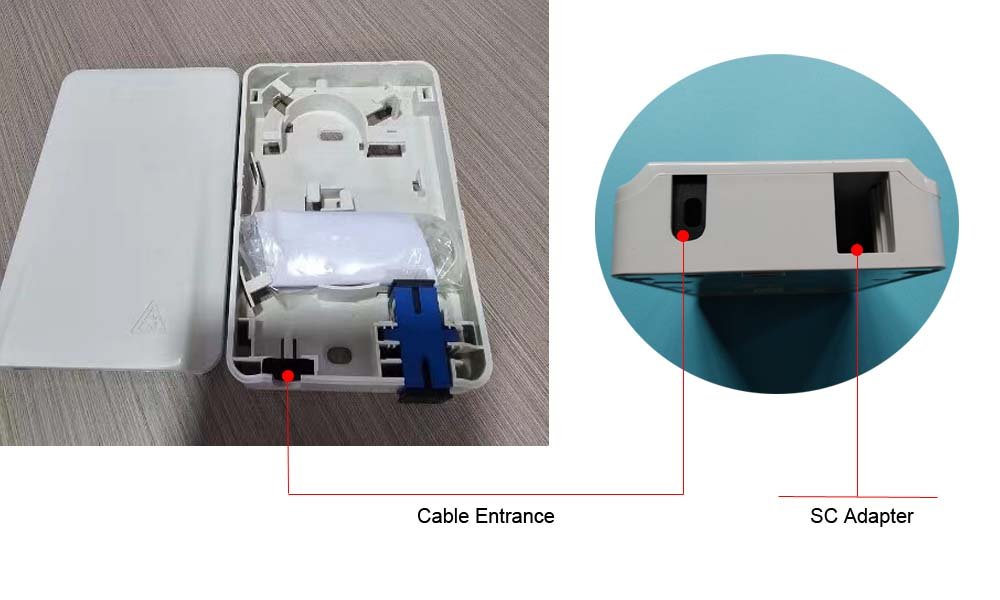

- 2 ports cable entrance for patch cable.
Specification
Model | FTB102D |
Dimension (A*B*C) | 120*78*25 mm |
Max.Capacity | 4 core (single fiber) |
Cable ports | 1in ,2out |
Scope of application | 2*3mm or 3mm |
Adapter | 2 SC / LC duplex |
Standard Accessory:2*expansion screws, 2*sleeve(optional),nylon tie
