Description
Features of Fiber Optic Box Wall
- Dust proof, RoHS proof with IP-55 protection level
- Integrated with 2 splice cassette and cable management rods.
- Manage fiber in a reasonable fiber radius condition
- Easy to maintain and extend the capacity
- Fiber bend radius control more than 40mm
- Suitable for the fusion splice or mechanical splice
- Large area for efficient cable management and storage
- 16 ports exit for drop cable 2*5mm
- 2pcs 1:8 plc splitter with steel tube slots on the bottom
- Distribution cable can go through the box without cut, best choice for ftth indoor construction.
Specification
| Model | FTB016A |
| Dimension (W*D*H) | 220*140*55mm |
| Max. Capacity | 16 core (dual fiber) |
| Cable ports | 2 in, 16out |
| Cable diameter | In:Φ13mm; out 2x5mm |
| Splitter quantity | 2pcs 1×8 or 1pc 1×16 PLC steel tube |
| Splice tray quantity | 2pcs |
| Adapter | 16 SC |
Detailed Display of Fiber Optic Box Wall

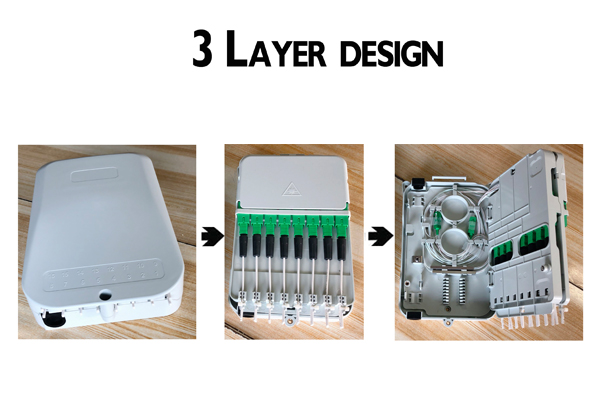

This box features a 3-layer design, facilitating organized internal arrangement.

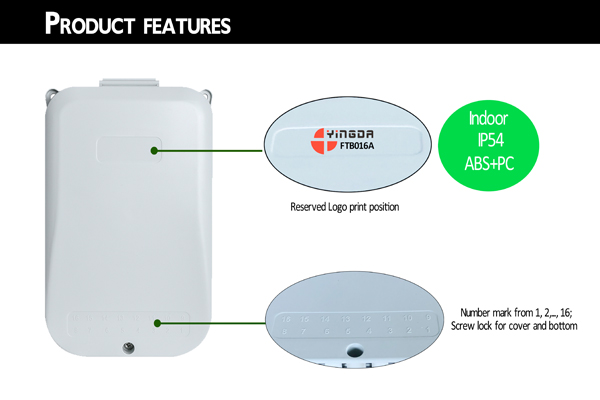

Made of ABS + PC, it has an IP54 rating, suitable for indoor use, ensuring dust and water resistance. There’s a reserved logo print position, and number marks from 1 to 16 are present, with a screw lock for the cover and bottom.

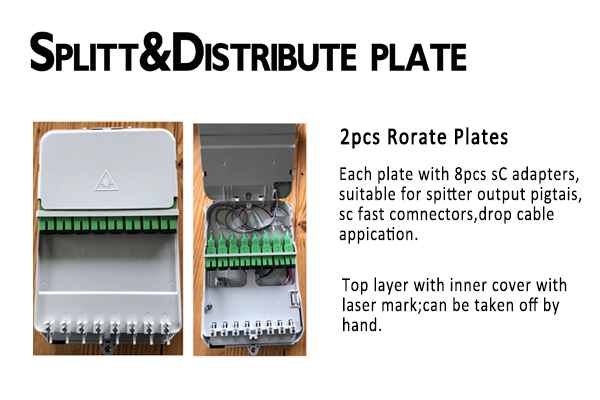

Equipped with 2 rotatable plates. Each plate has 8 SC adapters, suitable for splitter output pigtails, SC fast connectors, and drop cable applications. The top layer has an inner cover with laser marking, which can be removed by hand.

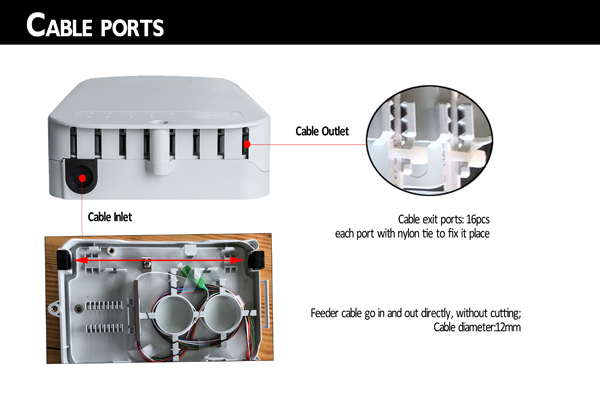

It has a cable inlet and 16 cable outlet ports. Each outlet port has a nylon tie to fix the cable. The feeder cable can go in and out directly without cutting, and the cable diameter is 12mm.

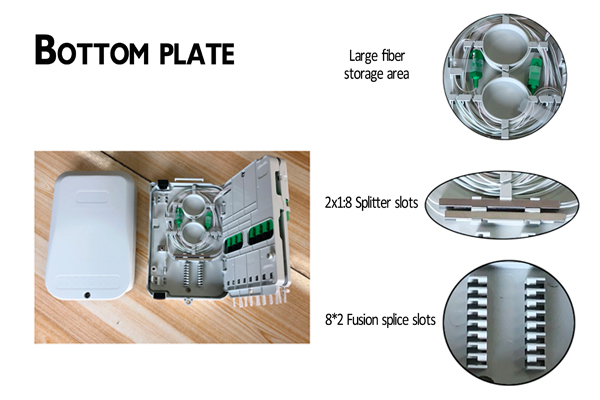

The bottom plate offers a large fiber storage area, 2×18 splitter slots, and 8×2 fusion splice slots, providing ample space for fiber management.
