Description
Features of Terminal Box Fiber Optic
- FTTH indoor wall mount, home or work area
- Embedded surface frame, easy to install and disassemble
- Large space to manager fiber in a reasonable fiber radius condition
- Suitable for 2pc SC, LC duplex adapter, 2 sleeve slot
- ABS plastic, dust-proof, and ROHS proof, IP45 protection level
- Slide cover design, easy to open and close
- Top reserved space to print logo or model
Terminal Box Fiber Optic Specification
| Model | FTB0102 |
| Dimension (A*B*C) | 115*205*35 mm |
| Max. Capacity | 2 core (single fiber) |
| Cable ports | 3 pcs |
| Cable diameter | Entry:7-10mm; out:2x3mm drop cable |
| Adapter | 2 SC simplex, or LC duplex couplers |
Terminal Box Fiber Optic Details

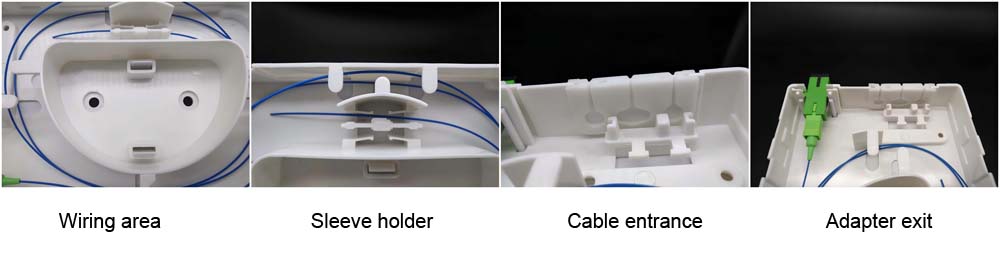

This fiber optic terminal box features a highly rational design with clearly defined functional zones and a large winding area. It doesn’t impose strict requirements on the fiber optic bending radius, facilitating on-site splicing, storage, and protection for installation personnel. The box includes two heat fusion sleeve protection slots, effectively protecting and securing the spliced fiber optic cable.

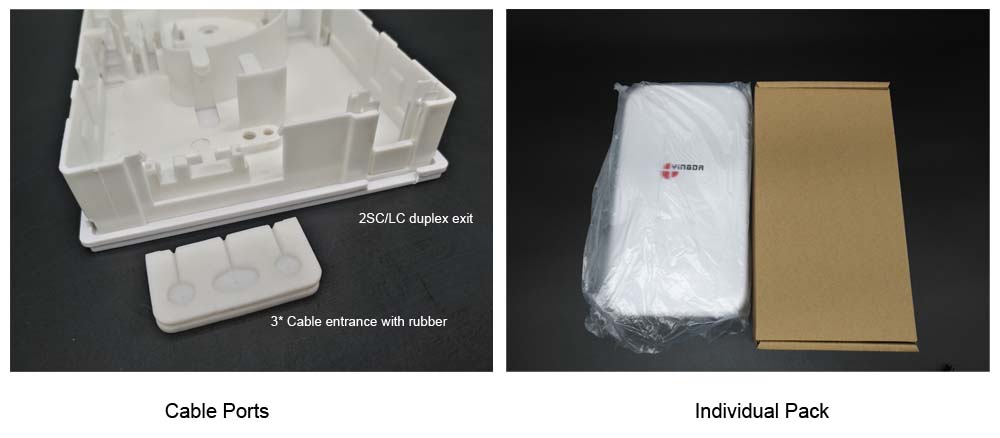

The fiber optic cable inlet uses a removable white rubber plug and comes in two cable sizes, offering both aesthetic appeal and flexible cabling. Cable entry and exit can be completed without cutting the cable. For termination at the outlet, the dust plug can be cut open with a knife, and the adapter can be inserted. Both SC and LC duplex adapters are supported; the adapter with flange earpiece design ensures stability and reliability, and up to two adapters can be installed.

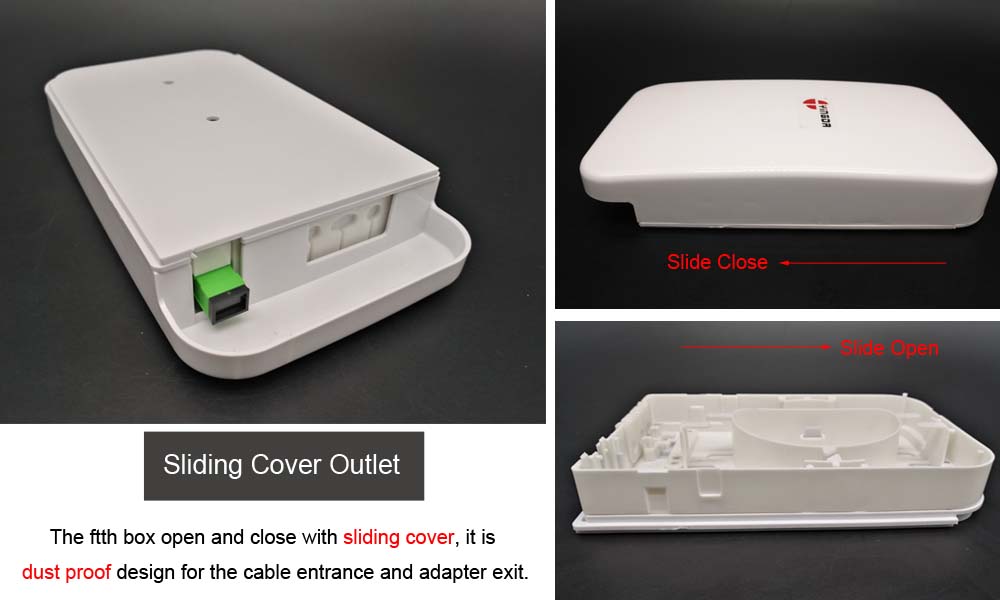

The unique design of this optical terminal box is the upper sliding cover, it is arc shape with front cover for the cable in and out. It effectively protects against dust, particles, or other hard objects impacting or entering the enclosure. Simply slide the lid up or down to open or close the box; no additional tools are needed. Both sides have specially designed locking points to ensure the box won’t fall off, making it stable, reliable, and quick to install.

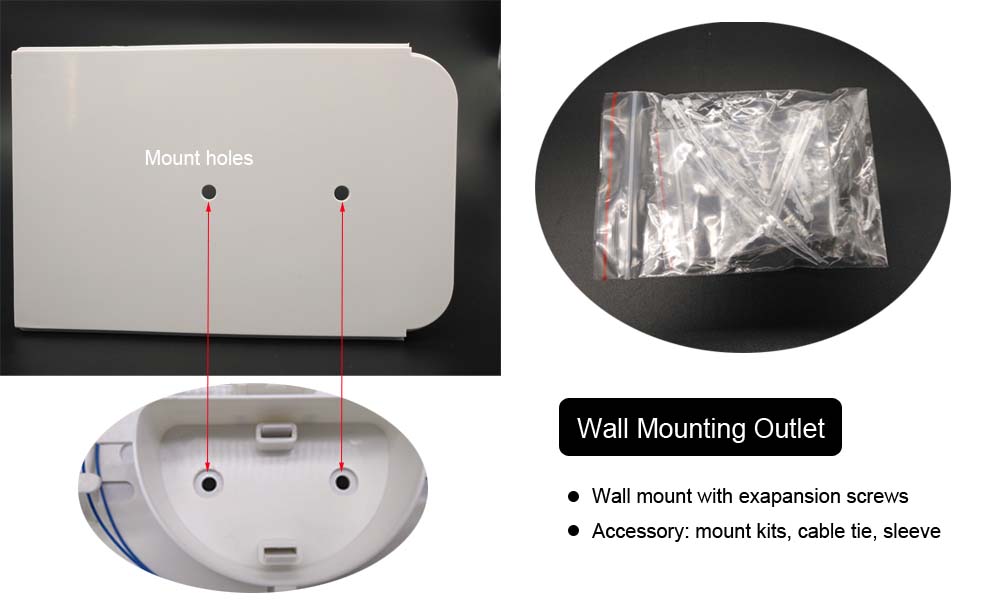

This 2 port terminal box fiber optic socket is mounting on all with 2 pieces screws, which will be configured with the accessory bag. The mounting holes are at the back of the box with bottom. We can drill a hole on wall, and fix it directly inside of the box before wiring.
