12 Core Indoor Fiber Termination Box Wall Mount

Description

Fiber Termination Box Wall Mount Characteristics

Total enclosed structure.
Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP54。
Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution, etc. all in one.
Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.
Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
Cabinet can be installed by the way of wall-mounted.

Mechanical Specifications

Item	Specifications	Remark
External dimension(mm)	151.8105.759
Installation hole position(mm)	141
Color	PANTONE 428C	Customize
Size and quantity of optical cable hole	Optical cable straight through without cutting
Input type/type of output	SC adapter
Capacity(Max)	12 cores
Into the largest cable diameter (mm)	ᴓ12
Cable outlet size(mm)	2*3~ᴓ5
IP protection level	IP54
Flammability	HB(Conventional)	can be customized according to requirements
Neutral YINGDA spray test (NSS)	48 h	can be customized according to requirements

Detailed Display of Fiber Termination Box Wall Mount

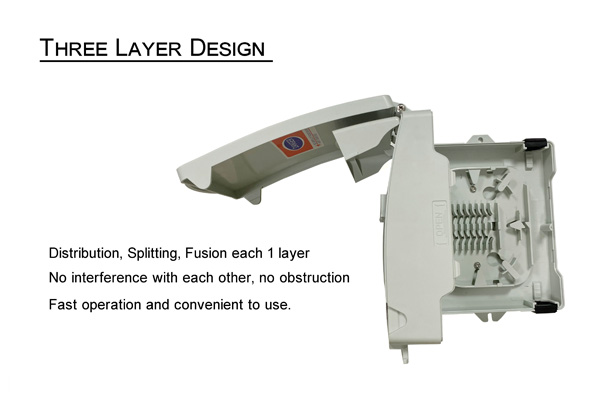

The fiber termination box features a three-layer design where distribution, splitting, and fusion each occupy one layer. These layers have no interference or obstruction with each other, enabling fast operation and convenient use.

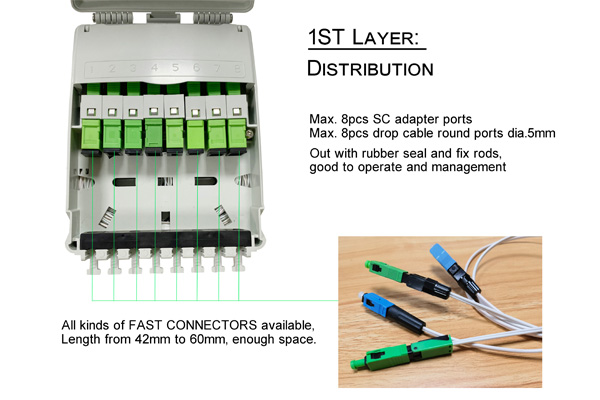

1st Layer:

It can accommodate a maximum of 8pcs SC adapter ports and 8pcs drop cable round ports with a diameter of 5mm.
The ports come with rubber seals and fix rods, which is beneficial for operation and management.
All kinds of fast connectors are available, with lengths ranging from 42mm to 60mm, providing sufficient space.

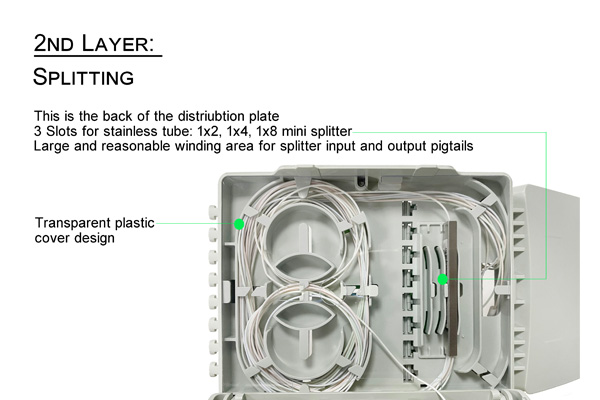

2nd Layer:

This layer is at the back of the distribution plate.
There are 3 slots for stainless tubes, suitable for 1×2, 1×4, 1×8 mini splitters.
It has a large and reasonable winding area for splitter input and output pigtails.
A transparent plastic cover design is adopted.

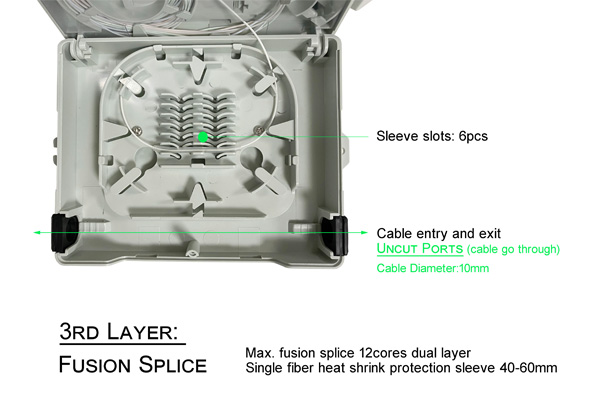

3rd Layer:

It has 6pcs sleeve slots.
For cable entry and exit, there are uncut ports (cable go through) with a cable diameter of 10mm.
It can perform a maximum fusion splice of 12 cores in dual layer, and uses single fiber heat shrink protection sleeves with a length of 40 – 60mm.

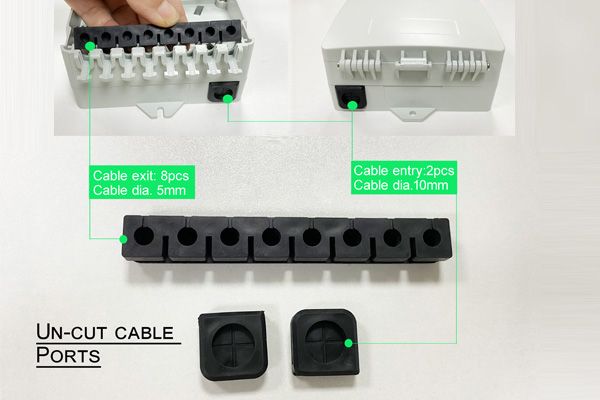

There are 8pcs cable exit ports with a cable diameter of 5mm and 2pcs cable entry ports with a cable diameter of 10mm.

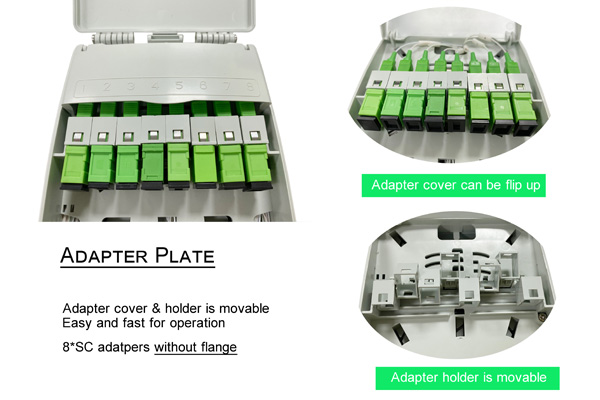

The adapter cover and holder are movable, making operation easy and fast. It is equipped with 8*SC adapters without flange. The adapter cover can be flipped up, and the adapter holder is also movable.

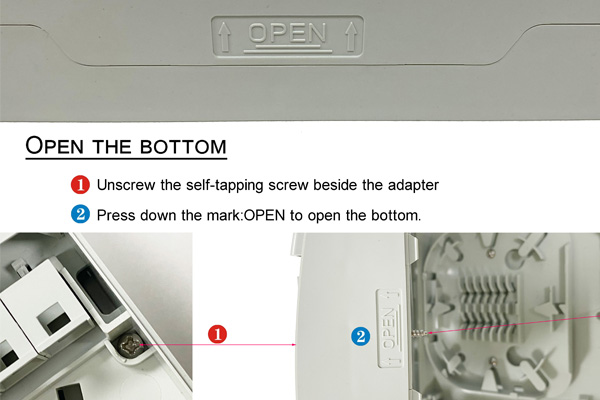

The bottom of the box could be opened:

First, unscrew the self-tapping screw beside the adapter.

Then, press down the “OPEN” mark to open the bottom.

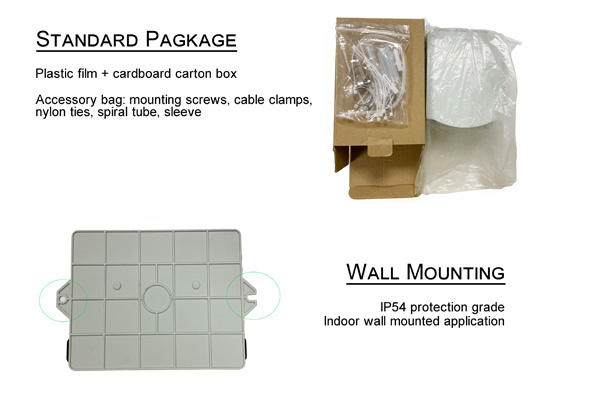

Something about the package:

It comes with a plastic film and a cardboard carton box. The accessory bag includes mounting screws, cable clamps, nylon ties, spiral tube, and sleeve. With an IP54 protection grade, it is suitable for indoor wall-mounted application.

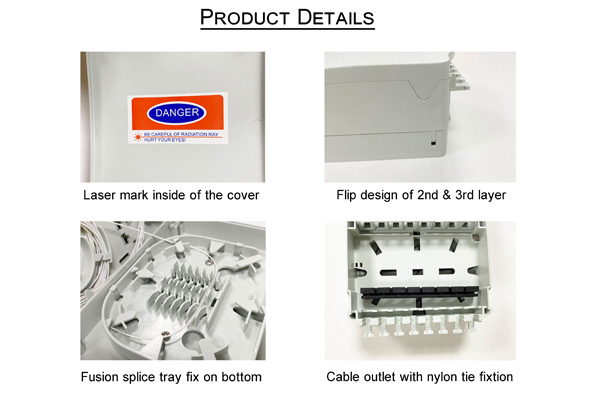

There is a laser mark inside the cover. The 2nd and 3rd layers have a flip design. The fusion splice tray is fixed on the bottom. The cable outlet uses nylon tie fixation.
