Description
Characteristics of Fiber Splice Box Outdoor
- Total enclosed structure.
- Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP54。
- Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution, etc. all in one.
- Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.
- Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
- Cabinet can be installed by the way of wall-mounted.
Mechanical Specifications
| Item | Specifications | Remark |
| External dimension(mm) | 222*126*50 | |
| Installation hole position(mm) | 195 | |
| Color | PANTONE 428C | Customizable |
| Size and quantity of optical cable hole | Optical cable straight through without cutting | |
| Input type/type of output | SC adapter | |
| Capacity(Max) | 8 cores | |
| Into the largest cable diameter (mm) | ᴓ12 | |
| Cable outlet size(mm) | 2*3~ᴓ5 | |
| IP protection level | IP54 | |
| Flammability | HB(Conventional) | can be customized according to requirements |
| Neutral salt spray test (NSS) | 48 h |
Detailed Display of Fiber Splice Box Outdoor

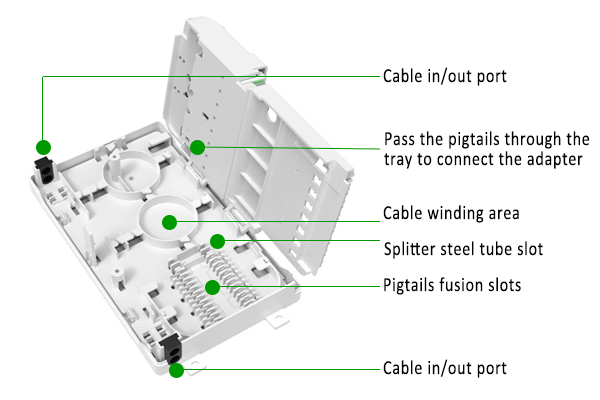

This box is a specialized device for outdoor fiber optic cable management and splicing. There are dedicated ports for cables to enter and exit the box, facilitating the connection of feeder and drop cables. Pigtails can be passed through a tray to connect with adapters. There are also pigtails fusion slots to securely hold pigtails during the fusion splicing process. Cable winding area allows for neatly coiling excess cable, preventing tangling and ensuring proper cable management. The splitter steel tube slot is provided to accommodate the steel tube of a splitter, ensuring the splitter is held firmly in place.
A screw lock secures the entire box, providing protection against unauthorized access and safeguarding the internal components from the outdoor environment. Number marks (1, 2, 3…) are present to enable clearer wiring of drop cables, making it easier to identify and manage individual cable connections. The box is equipped with 8 pieces of SC adapters “without flange”, which are used for connecting pigtails and patch cords. There are also 8 drop cable ports, allowing for the connection of multiple drop cables to distribute signals to different locations.

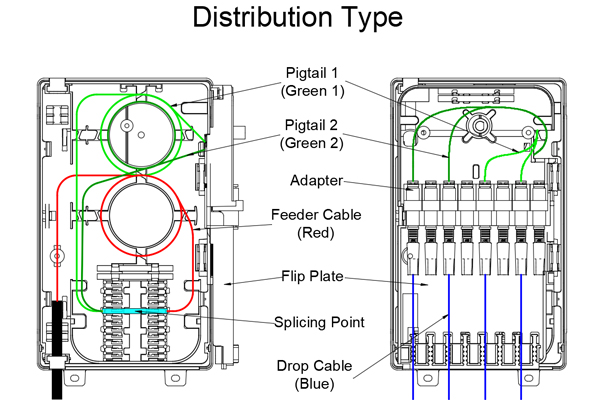

In the distribution type setup, feeder cables (red) and pigtails (green 1, green 2) are spliced at the splicing point. The pigtails then connect to adapters, and drop cables (blue) are connected to the adapters via patch cords, enabling the distribution of optical signals. A flip plate is also part of the structure, likely aiding in accessing the splicing area.

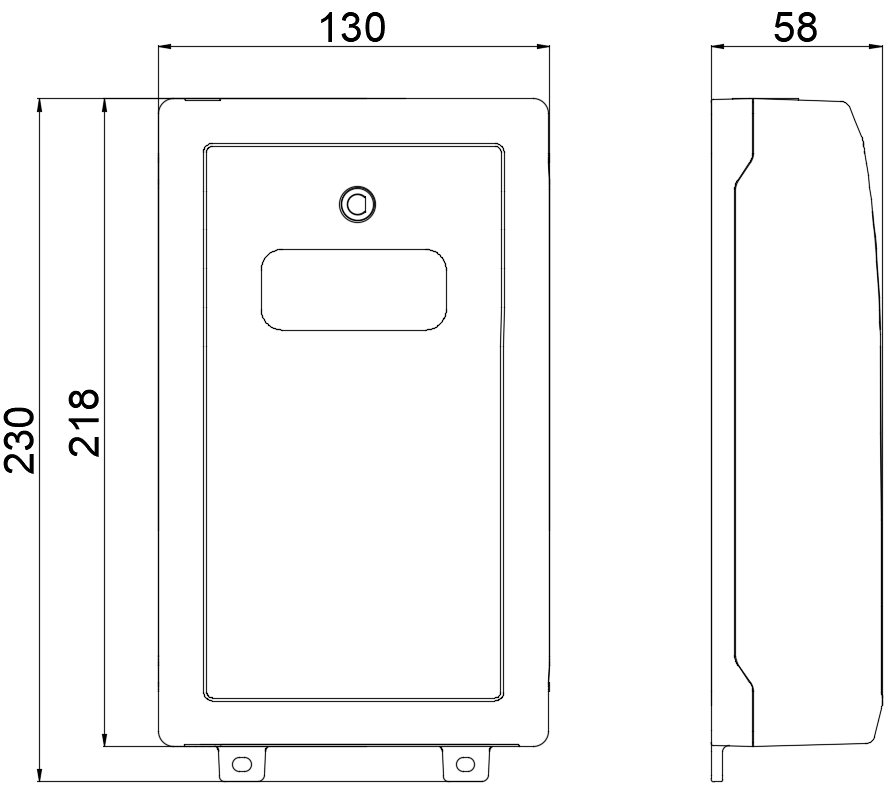

The box has dimensions of 230 (height) × 130 (width) × 58 (depth) mm, with an internal usable height of 218 mm, making it compact yet spacious enough for efficient fiber management.
