Wall Mounted Indoor Fiber Box For Ftth Fttb Network, 8 Sc Adapters And Pigtails Sm & Mm, Flat Cable, 4 Cable Entrance Diameter 10mm

Description

Features of Outdoor Fiber Box

• The 2lids of the box is round edge and close by 1 screw at the top, opening of the lid will not affect the movement of the other parts of the box. Both cover is removable.
• Unique design of separate covers for the adapter and cable entry/exit ports makes it more safe, nice and humanity.
• All the metal parts is steel stainless AISI-303and resistant to the corrosion in normal temperature.
• All the materials used is non toxic and dermatologist safe.
• The box can use for a minimum period of 20 years.
• Special design of 3 layers stray: splitter tray, splice tray, fiber management tray.
• Adapter panel on the bottom is rotated by a metal rod, convenient and fast to installation.
• The distribution cable can go through the box no need cut, better choice for ftth on-site construction.
• Application: FTTH FTTX Network.

Specification

Detailed Display of Outdoor Fiber Box

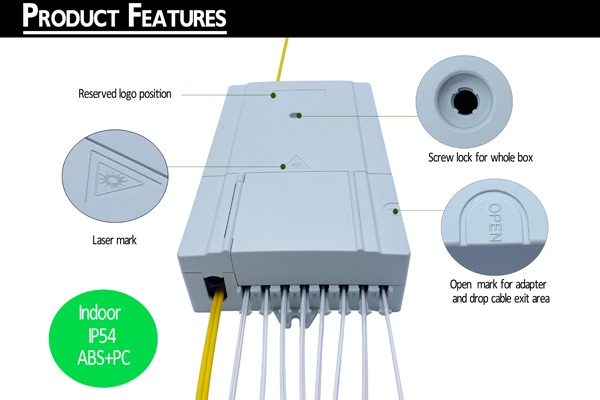

The box has a reserved logo position, a screw lock for the whole box, a laser mark, and an open mark for the adapter and drop cable exit area. It is suitable for indoor use with an IP54 protection rating and is made of ABS + PC material.

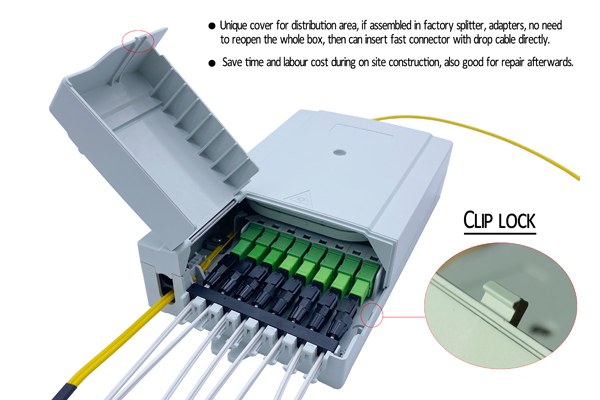

There is a unique cover for the distribution area. If factory-assembled splitters and adapters are used, there’s no need to reopen the whole box; fast connectors can be directly inserted with drop cables, saving time and labor costs during on-site construction and facilitating future repairs. It also utilizes a clip lock mechanism for secure closure.

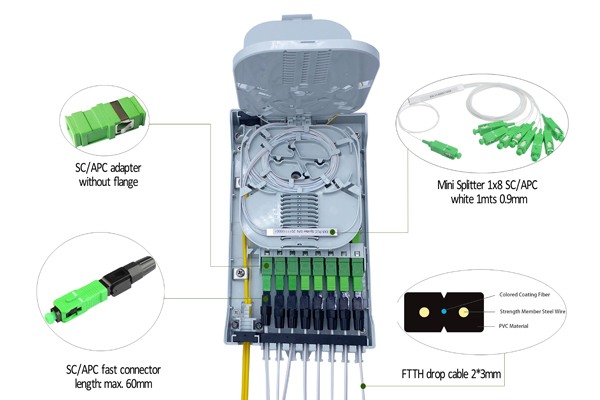

Regarding components, it uses SC/APC adapters without flanges and SC/APC fast connectors with a maximum length of 60mm. The mini splitter is a 1×8 SC/APC type, white, with a diameter of 0.9mm. The fiber used is colored coating fiber, specifically single-mode G.657A2, and the FTTH drop cable has dimensions of 2×3mm.

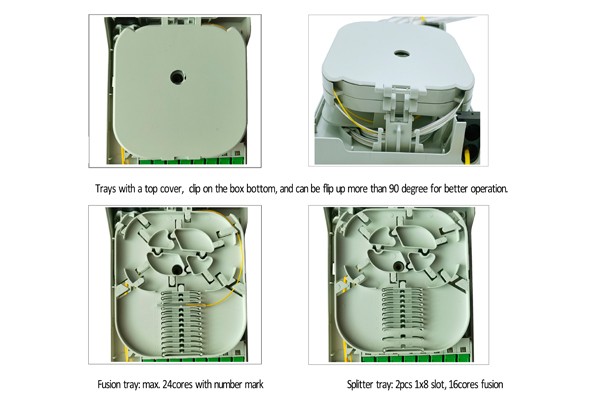

The trays come with a top cover, which clips onto the box bottom and can be flipped up more than 90 degrees for easier operation. The fusion tray can handle a maximum of 24 cores with number marks, and the splitter tray has 2 positions for 1×8 splitters and can manage 16 cores for fusion.

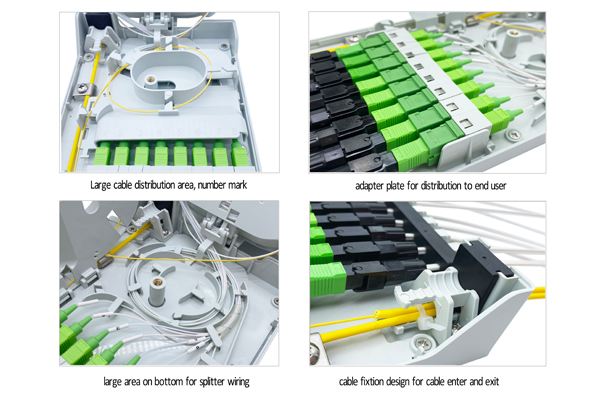

There is a large cable distribution area with number marks, an adapter plate for distribution to end-users, a large area at the bottom for splitter wiring, and a cable fusion design for cable entry and exit.

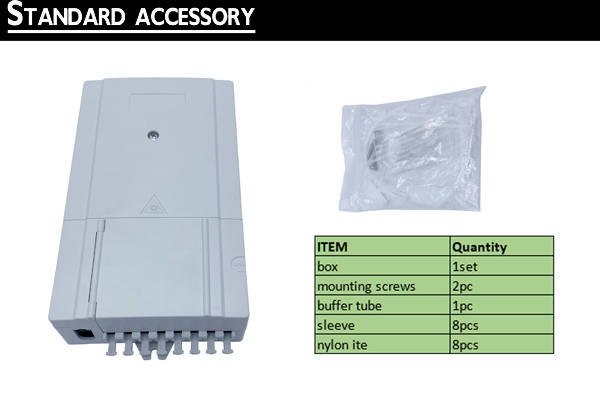

As for standard accessories, it includes 1 set of the box, 2 mounting screws, 1 buffer tube, 8 sleeves, and 8 nylon ties.

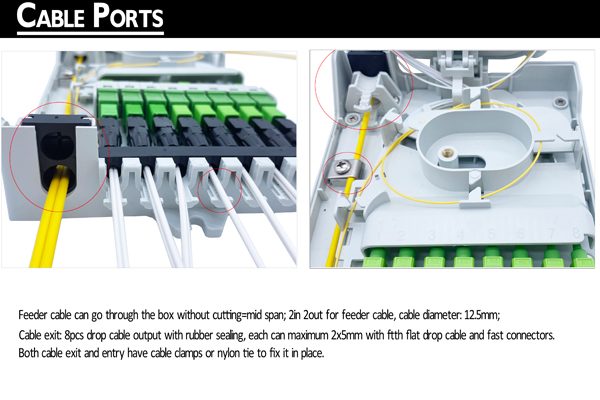

In terms of cable ports, the feeder cable can pass through the box without cutting, allowing for a 2-in 2-out configuration, with a cable diameter of 12.5mm. There are 8 drop cable outputs with rubber sealing, each capable of accommodating a maximum 2×6mm flat drop cable with fast connectors. Both cable exits and entries are equipped with cable clamps or nylon ties to secure the cables in place.
