8 Core Outdoor Fiber Termination Box Supplier

Description

Features of Outdoor Fiber Termination Box

The cover is 2parts, 1 for adapter, 1 for fusion, left part for distribution cable, all fix by 3 screws, opening of the lid will not affect the movement of the other parts of the box.
Unique design of separate covers for the adapter and cable entry/exit ports makes it more safe, nice and humanity.
All the metal parts is steel stainless AISI-303and resistant to the corrosion in normal temperature.
All the materials used is non toxic and dermatologist safe.
The box can use for a minimum period of 20 years.
Adapter bracket is separate by hinge connection, 360degree turn for fast and easy installation or remove.
Integrated fusion tray and splitter tube clip in the box
The distribution cable can go through the box no need cut, better choice for ftth on-site construction.

Specification

Model	FTB008
Dimension (WDH)	17013545 mm
Max. Capacity	8 core (dual fiber)
Cable ports	2 in, 8 out
Cable diameter	In:Φ10mm; out 2x5mm
Splice tray quantity	3pcs: 1splice tray, 1splitter tray, 1*fiber management tray
Adapter	8SC

Detailed Display of Outdoor Fiber Termination Box

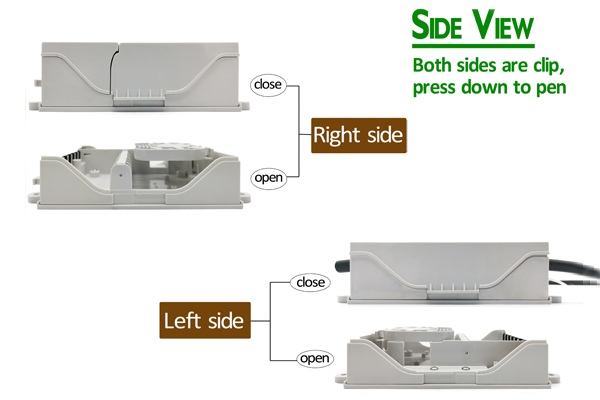

The box FTB008 features clips on both sides. To open or close the box, simply press down on these clips. This design ensures easy access while maintaining a secure closure.

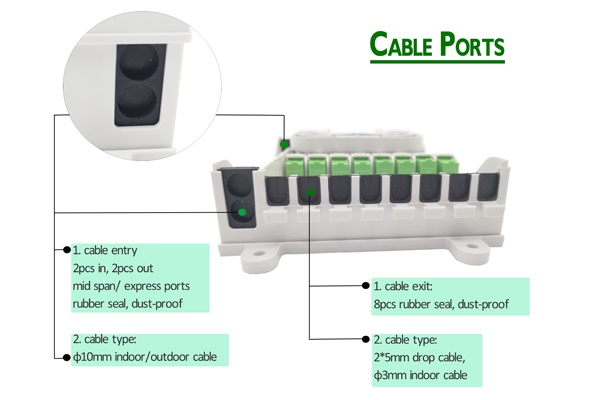

There are 2 cables for input and 2 for output. These mid-span/express ports are equipped with rubber seals to provide dust-proof protection. The suitable cable type is Φ10mm indoor/outdoor cable. It also has 8 ports with rubber seals for dust-proofing. The applicable cable types are 2*5mm drop cable and Φ3mm indoor cable.

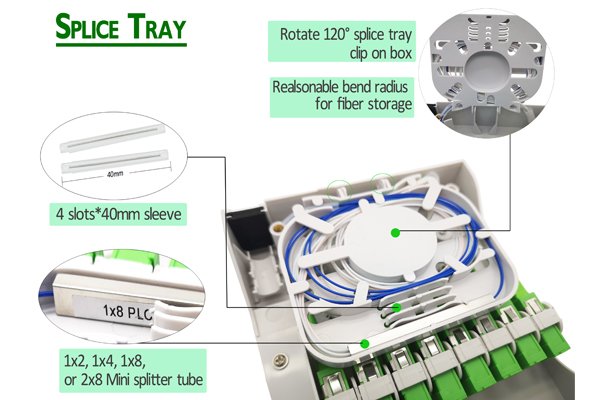

Its splice tray can rotate 120° and clips onto the box. It offers a reasonable bend radius for fiber storage, which helps prevent fiber damage. And this box has 4 slots for 40mm sleeves. Compatible splitters include 1×2, 1×4, 1×8, or 2×8 Mini splitter tubes, providing flexibility in fiber splitting configurations.

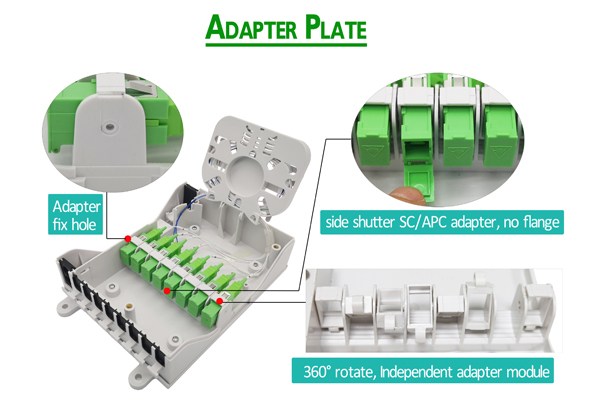

The adapter plate has fix holes for securing adapters. It uses side shutter SC/APC adapters without flanges, which can rotate 360° and works independently, allowing for convenient connection adjustments.

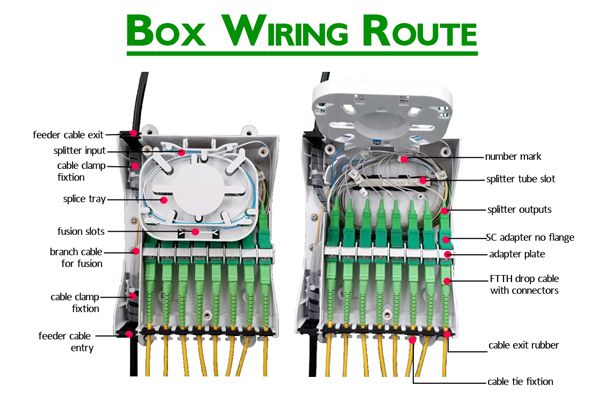

Key components in the wiring route include the feeder cable exit, splitter input, cable clamp fixture, splice tray, fusion splice branch cables (for fusion), cable clamp fixture, feeder cable entry, number mark, splitter tube slot, splitter outputs, SC adapter (no flange), adapter plate, FTTH drop cable with connectors, cable exit rubber, and cable tie fixture. This organized layout ensures proper cable management and signal transmission.

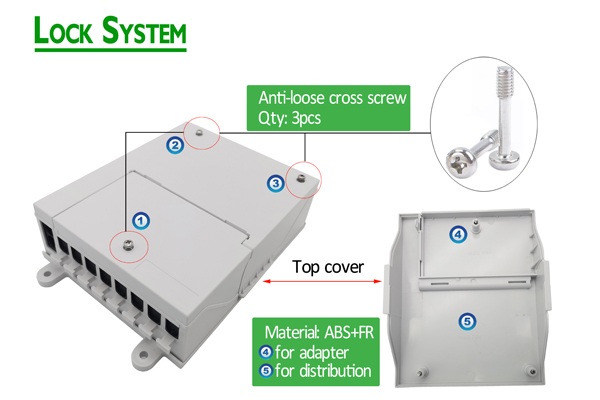

The top cover is secured with 3 anti-loose cross screws. This box is made of ABS+FR material. Specific areas (marked ④ and ⑤) are for the adapter and distribution respectively, ensuring structural integrity and functional partitioning.

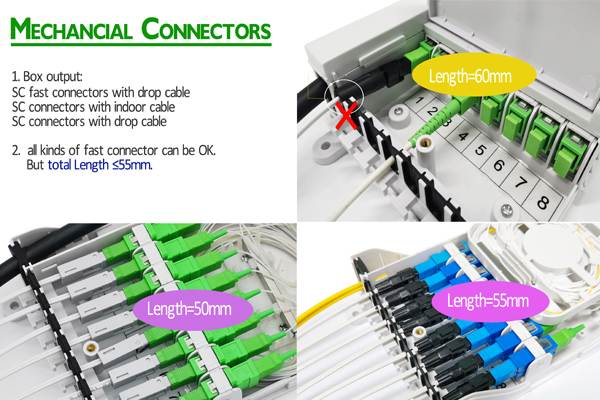

Options of box outputs include SC fast connectors with drop cable, SC connectors with indoor cable, and SC connectors with drop cable. All kinds of fast connectors can be used as long as their total length is ≤55mm. Examples of compatible lengths shown are 50mm, 55mm, but 60mm (with the 60mm length being marked as not suitable).

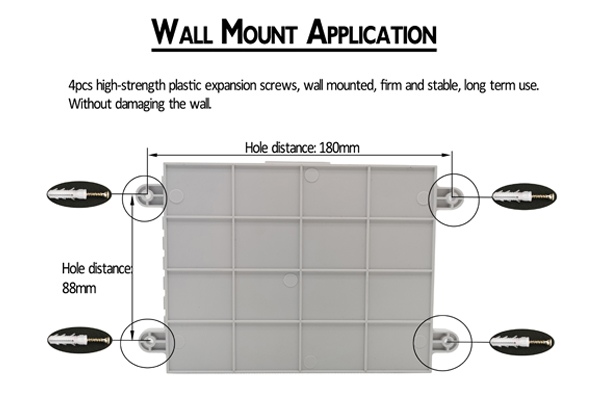

For wall mounting the Outdoor Fiber Termination Box, 4 pieces of high-strength plastic expansion screws are used. When installed on the wall with these screws, the box is firm and stable, suitable for long-term use. Moreover, this mounting method does not cause damage to the wall.

Regarding the hole distances for mounting: the horizontal hole distance is 180mm, and the vertical hole distance is 88mm. These precise hole distance specifications ensure accurate and secure installation of the box on the wall.
