Description
Configuration Table
| Model | FRB-4D |
| Material | PC+ABS |
| Color | White(default) |
| Size （Pic 1） | H x W x D = 80 x 80 x 31(mm) |
| Max. Adaptor Capacity | 4 Ports (SC) |
| Empty Weight | 70 G |
| Loaded Weight | 90 G |
Detailed Display of Optical Termination Box 4 Ports

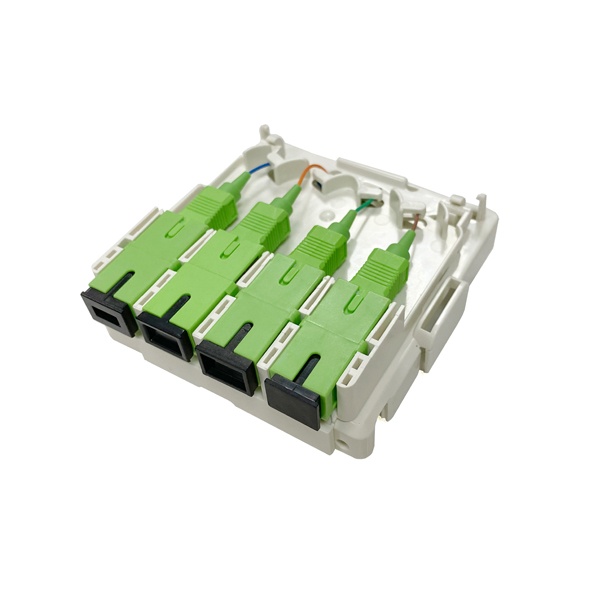

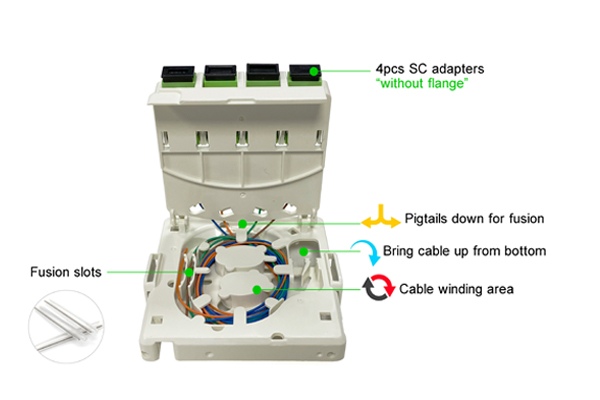

There are 4pcs SC adapters without flange. Fusion slots are provided for fiber fusion. Besides, pigtails go down for fusion. cables are brought up from the bottom, and there is a dedicated cable winding area.

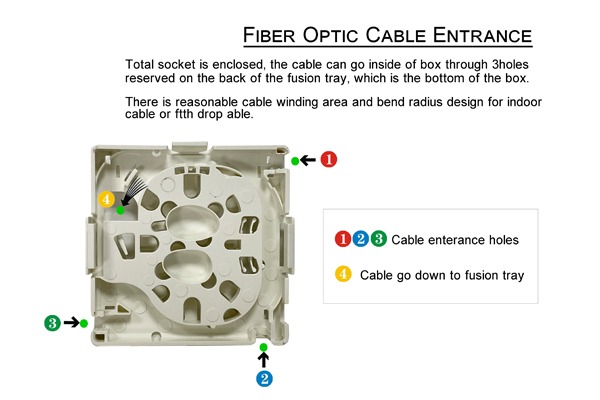

The total socket is enclosed. Cables can enter the box through 3 reserved holes on the back of the fusion tray (the bottom of the box). It has a reasonable cable winding area and bend radius design suitable for indoor cables or FTTH drop cables.

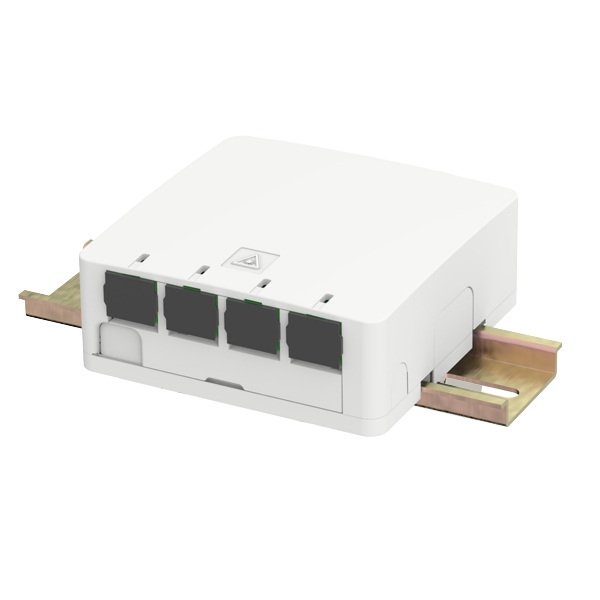

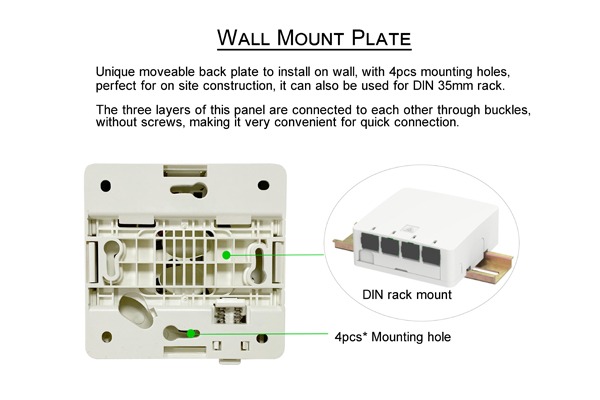

It has a unique moveable back plate for wall installation, with 4pcs mounting holes, perfect for on-site construction. It can also be used for DIN 35mm racks. The three layers of this panel are connected to each other through buckles without screws, enabling very convenient quick connection.

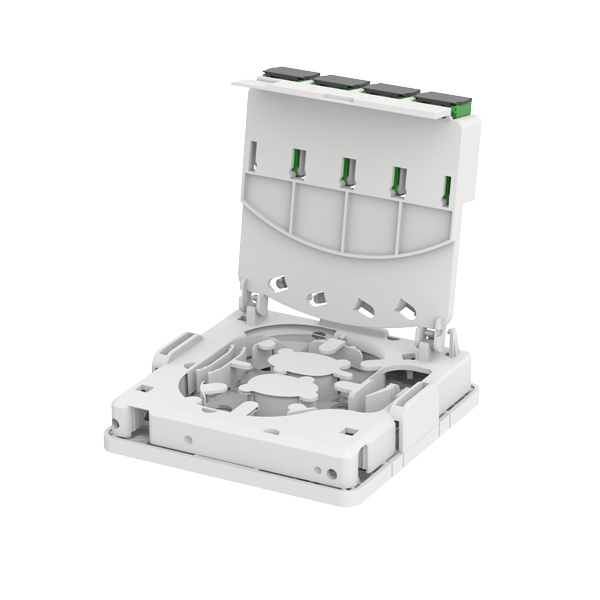

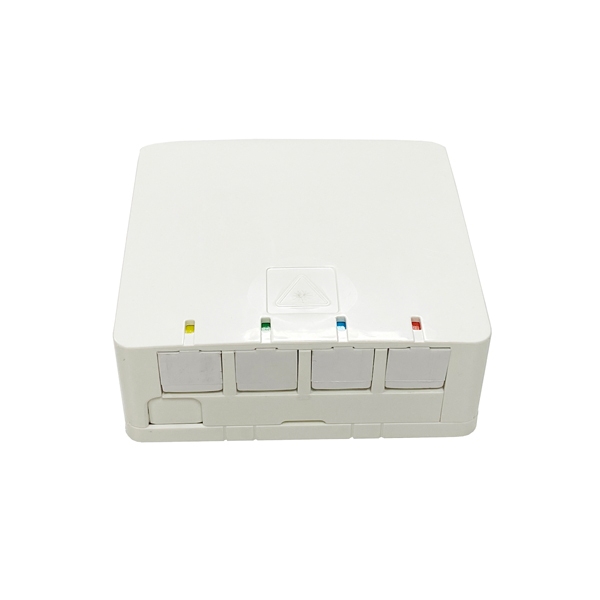

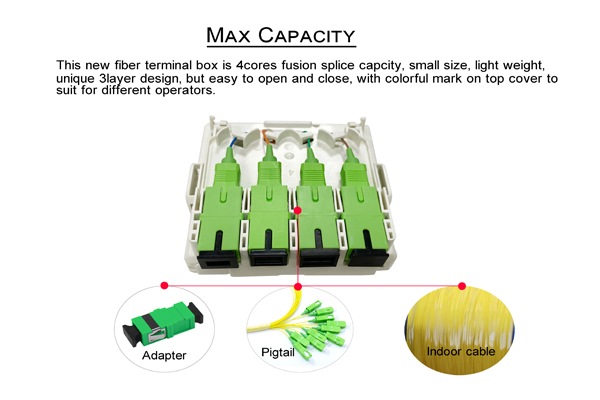

This new fiber terminal box has a 4-cores fusion splice capacity. It is small in size, light in weight, with a unique 3-layer design that is easy to open and close. There are colorful marks on the top cover to suit different operators. Components involved include adapters, pigtails, and indoor cables.
