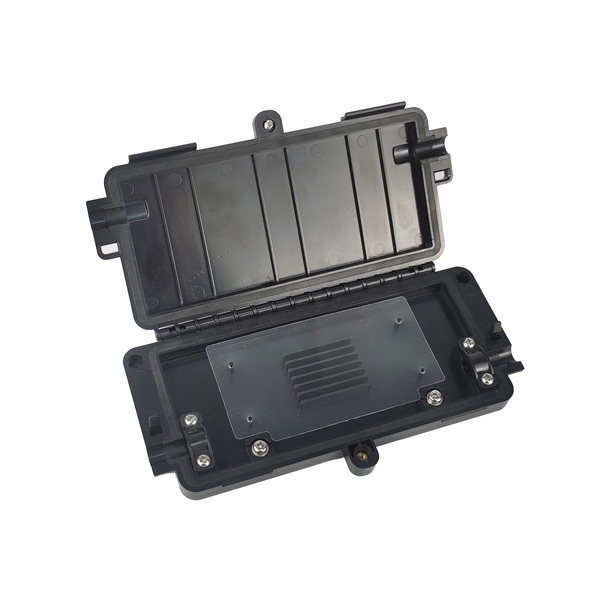

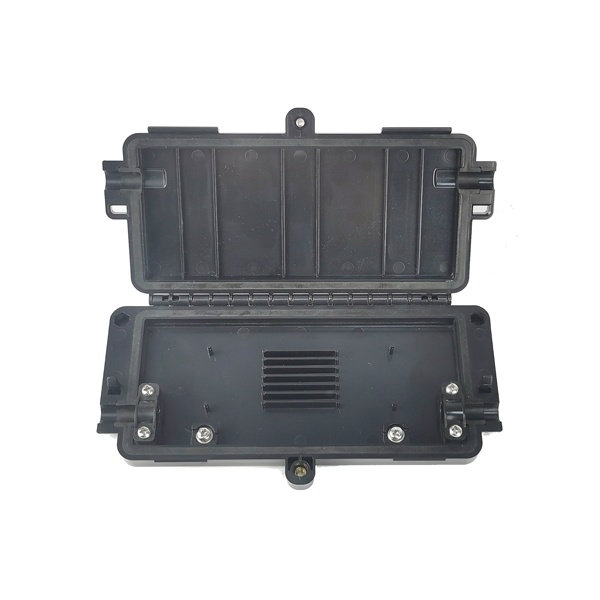

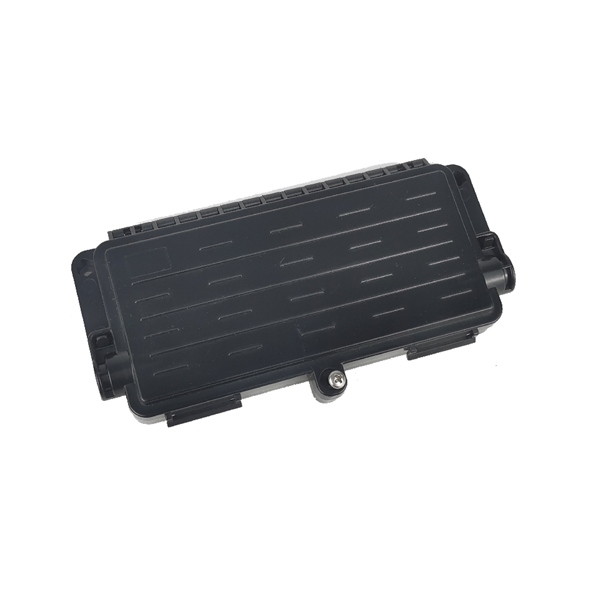

12 Cores Fiber Optic Ftth Outdoor Box For Fiber Fusion Splicing, 1in 2out Cable Ports, Horizontal Closure

Description

Specification of Ftth Outdoor Box 12  Cores

• Water-proof design with IP65 Protection level.
• Integrated with splice cassette and cable management system.
• Manage fibers in a reasonable fiber radius condition.

Configuration Table

Detailed Display of Ftth Outdoor Box 12  Cores

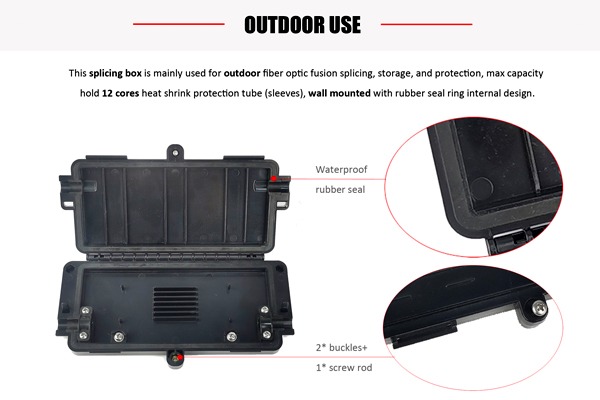

This product can hold up to 12 cores of heat-shrink protection tubes (sleeves). The box adopts a wall-mounted design with a waterproof rubber seal inside to ensure good waterproof performance. For the locking mechanism, there are 2 buckles and 1 screw rod, which enhance the sealing and stability of the box when closed.

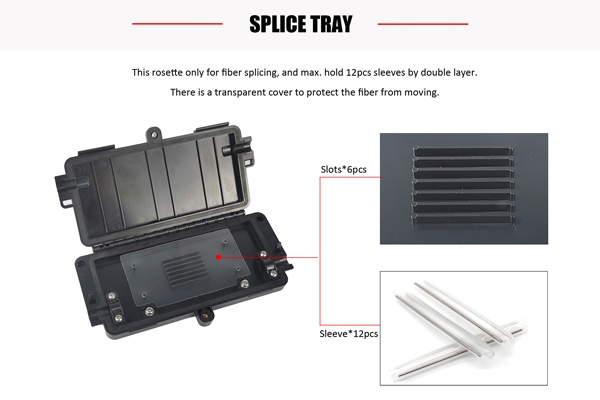

The splice tray is dedicated to fiber splicing and can hold a maximum of 12 sleeves with a double – layer structure. There is a transparent cover to prevent the fiber from moving, ensuring the fibers stay in place during and after splicing. It is equipped with 6 slots to accommodate the sleeves.

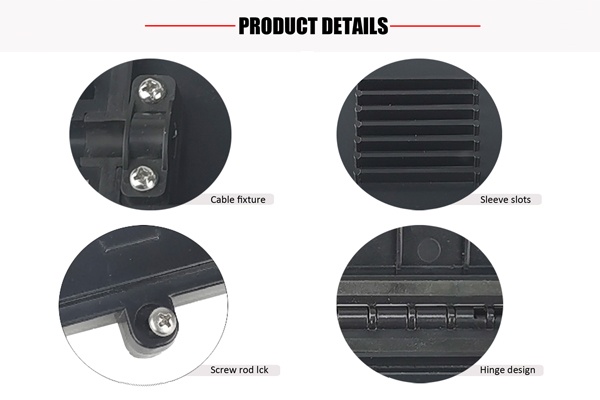

More details:

• Cable fixture: Secures the cable firmly, preventing it from being pulled or damaged.
• Sleeve slots: Provide positions for placing the sleeves, facilitating organized fiber splicing.
• Screw rod lock: Works with the screw rod to tightly lock the box, enhancing its overall sealing and durability.
• Hinge design: Allows the box to be opened and closed smoothly, making operations like fiber splicing and maintenance more convenient.
