Mini 4 Core Din Fiber Optic Terminal Box

Description

Features of Fiber Optic Terminal Box

Flexible termination methods: splicing + pigtail, FTTH fast connector on site.
3 layer design, tray top for fusion and winding, tray back for patch distribution, bottom for cable enter and management;
The product is made of high-quality plastic, with small size, light weight, and beautiful appearance.
Unique reversible tray, making fiber circuit clearer and less prone to crossing
Adapter preset with a dust cover, which can be opened according to construction requirements. SC adapter without flange for output, up to 1-4 cores single fiber splicing.
Cable entrance set on the back, the top and bottom, left and right sides, flexible wiring;
Box body retains the traditional screw fixation, adding a DIN rail clamping, making installation convenient.

Specification

Model	FRB-4C
Dimension(LWD)	808028mm
Adapter qty	4 ports SC
Max capacity	4 cores
Material	ABS
Cable ports	5 pcs
Cable type	ø3mm or 2*3mm drop cable
Color	White
Bend radius	≤0.01dB
Working temperature	-40 ~+60℃
Side pressure	≥2000N/10 cm
Pack information
Quantity/carton	250pcs
Carton size	500390320mm
Gross weight/carton	17.3kg

Detailed Display of Fiber Optic Terminal Box 4 Cores

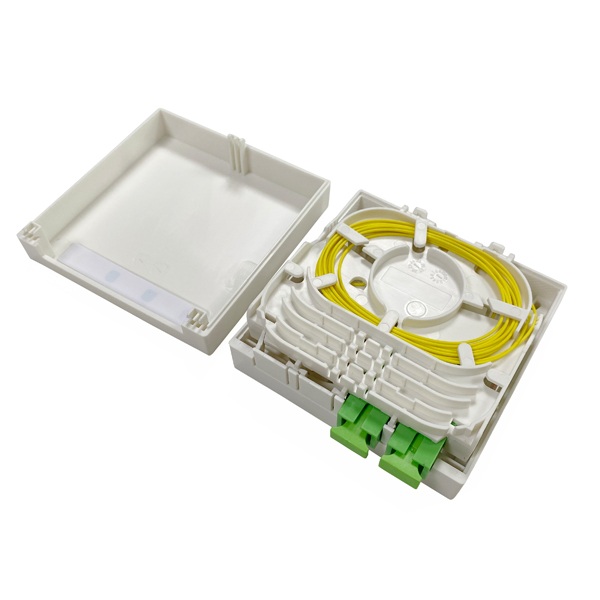

This fiber box has a durable plastic casing that can be opened to access the internal components. The box is designed to neatly organize and protect the fiber optic cables and connections.

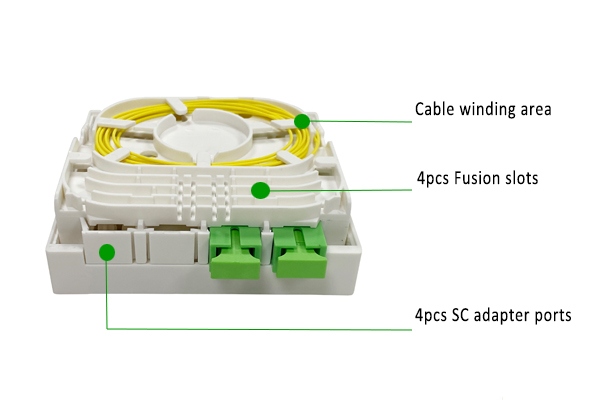

There is a designated area for winding fiber optic cables. This helps in managing the excess length of the cables, preventing them from being tangled or damaged, which is crucial for maintaining good signal transmission. It is also equipped with 4 fusion slots. These slots are used to hold the fiber optic cables in place during the fusion splicing process, ensuring accurate and stable splicing operations.

Besides, there are 4 SC adapter ports. These ports allow for the connection of SC-type fiber optic connectors, enabling the transfer of optical signals between different fiber optic cables or devices.

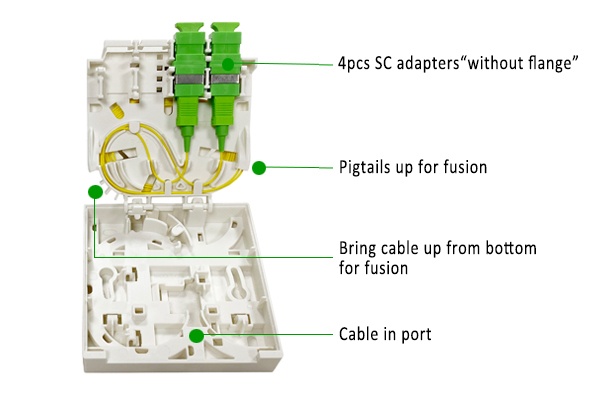

The box comes with 4 SC adapters without flanges, which are compatible with the SC adapter ports and facilitate the connection process. Pigtails are set up for fusion, making it convenient to perform fusion splicing with the incoming fiber optic cables. And cables can be brought up from the bottom for fusion, and there is a cable in port to guide the entry of the fiber optic cables into the box, ensuring a proper and organized routing path.
