Figure 8 fiber cable with stranded messenger wires are better support than an ordinary steel wire and is suitable for vertical wiring or overhead introduction of optical fiber into the room. Yingda pre terminated the fiber optic cable are with pushable SC connector at one side, which can be directly pulling through a wall, then docking with fiber optic adapters, while the other side is standard SC connectors with rubber seal, which is designed to connect with the outdoor fiber splitter boxes, rubber seal prevent water from entering.
This Figure 8 fiber cable provide better protection and higher tensile strength then indoor drop cable, anti-rat bite, anti-ultraviolet, strong support for overhead aerial wires.
| Item | Value |
| Connector | SC LC FC ST E2000 DIN D4 SMA FDDI MTRJ MU MPO MTP LX.5 VF45, etc. |
| Operating wavelength | 1260-1650nm |
| Fiber type | G652D, G657A2, G657A1, G655, G657B3, OM1 OM2 OM3 OM4,OM5, etc. |
| Cable jacket | LSZH, PVC, PE, TPU, etc. |
| Polish manner | UPC, APC（8°）, PC |
| Fiber radius of curvature | ≥ 40 mm (G.652D and G.655C); ≥ 20 mm (only G.657A2) |
| Insertion Loss | ≤ 0.1dB (Master)
≤ 0.3dB (Standard) Tested by JDS RM 3750 |
| Return Loss | UPC ≥ 55dB,APC ≥ 60dB (typ.65dB)–Single mode
UPC≥ 35dB (typ.38dB)-Multimode Tested by JDS RM3750 |
| Repeat ability | ±0.1dB |
| Operating temperature | -40 ° C to 85 ° C |
| Geometry Requirement
(For Single mode) |
Ferrule End face Radius:
7mm ≤ R ≤ 12mm (APC) 10mm ≤ R ≤ 25mm (Standard) Apex Offset ≤ 30 μm (Master) Apex Offset ≤ 50 μm (Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 |
| No. | Items | Unit | Specification | ||
| G657A2 | |||||
| 1 | Mode Field Diameter | 1310nm | μm | 9.0±0.4 | |
| 1550nm | μm | 10.1±0.5 | |||
| 2 | Cladding Diameter | μm | 124.8±0.7 | ||
| 3 | Cladding Non-Circularity | % | ≤0.7 | ||
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 | ||
| 5 | Coating Diameter | μm | 245±5 | ||
| 6 | Coating Non-Circularity | % | ≤6.0 | ||
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | ||
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 | ||
| 9 | Attenuation(max.) | 1310nm | dB/km | ≤0.4 | |
| 1550nm | dB/km | ≤0.3 | |||
| 10 | Macro-Bending Loss | 1turn×10mm radius @1550nm | dB | ≤0.75 | |
| 1turn×10mm radius @1625nm | dB | ≤1.5 | |||
| Items | Specifications | |

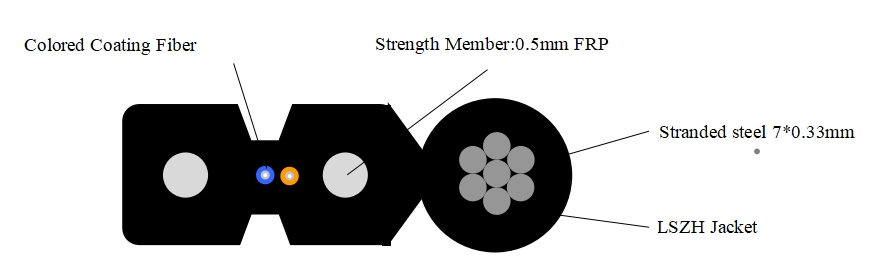

| Fiber Count | 1 | |
| Colored Coating Fiber | Dimension | 250±15μm |
| Color | Blue, Orange | |
| Strength Member | Dimension | 0.5mm |
| Material | FRP | |
| Self-Supporting Member | Dimension | 0.33*7mm |
| Material | Galvanized Steel Wire | |
| Outer Jacket | Dimension | 5.2±0.2mm×2.1±0.1mm |
| Material | LSZH | |
| Color | Black | |
| Items | Unit | Specifications |
| Tension（Long Term） | N | 500 |
| Tension（Short Term） | N | 1000 |
| Crush（Long Term） | N/10cm | 1000 |
| Crush（Short Term） | N/10cm | 2200 |
| Min. Bend Radius（Dynamic） | mm | 20D |
| Min. Bend Radius（Static） | mm | 10D |
| Installation Temperature | ℃ | -20～+60 |
| Operating Temperature | ℃ | -40～+70 |
| Storage Temperature | ℃ | -40～+70 |
