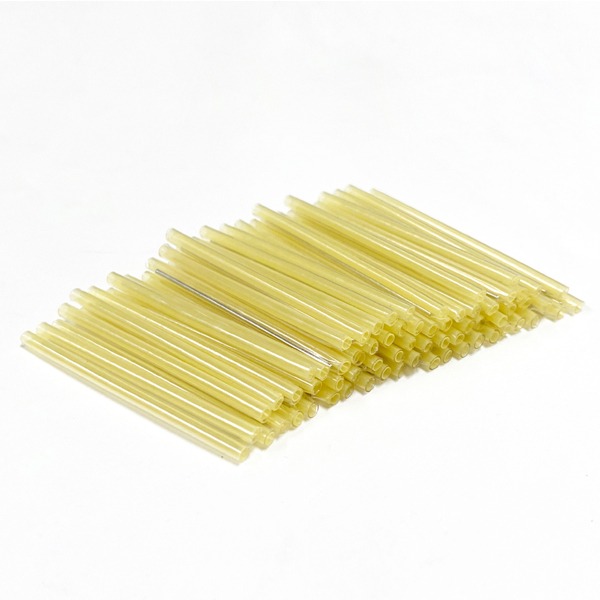

High Shrink Colored Single Fiber Protection Sleeve Fiber Optic, Tube Length 45mm, 0.8mm SS304 Stainless Steel Reinforcement, IOD after recovery 2.0mm

0.8mmx45mm Fiber sleeve consists of a transparent heat shrinkable sleeve (outer tube), a transparent hot melt tube (inner tube) and a 304 stainless steel rod strength member. It is a protective element specially designed for optical fiber splicing below 0.9mm or 2.0mm fiber optic cable.

Description

Splice Sleeves Features

  • Does not affect the light guide characteristics of optical fiber; protects splice points and improves mechanical strength
  • Easy to operate, reducing the risk of fiber damage during installation;
  • Transparent casing, the fiber connection status is clear at a glance;
  • The sealed structure enables the connection to have good temperature and humidity resistance.

Operating temperature: -45℃ to +100℃

Complete shrinkage temperature: 120℃



Fiber Optic Sleeve Specification

Structure of clear single fiber splice sleeves 35mm length, ultra thin, high shrink, stainless steel 0.5mm, iod after recovery 1.6mm for 900um optical fiber cable, 100pcs/bag

Part no. Heat shrink tube

(outer tube)

Hot melt tube(inner tube) Stainless steel rod(reinforcement core) IOD after recovery



Outer diameter(D1) Length(L) Inner diameter (D) Length(L) Diameter(d) Length(l)
YDHS-4508 3.0 45 1.4 45 0.8 40 2.0



 Technical Parameters

Item Testing methods Typical data
Tensile strength ASTM D2671 ≥18 MPa
Elongation at break ASTM D2671 700%
Density ISO R11830 0.94 g/cm2
Dielectric strength IEC 243 20 KV/mm
Dielectric constant IEC 243 2.5 max
Length change rate ASTM 2671 0±5%

high shrink colored single fiber protection sleeve fiber optic, tube length 45mm, 0.8mm ss304 stainless steel reinforcement, iod after recovery 2.0mm

high shrink colored single fiber protection sleeve fiber optic, tube length 45mm, 0.8mm ss304 stainless steel reinforcement, iod after recovery 2.0mm
