Description
Patch Cord Pigtail Features
- Low insertion loss, high return loss
- 100% test before delivery by the insertion loss and return loss tester, and microscope.
- UPC or APC ferrule end face, suitable for different application
- Single mode fiber or multimode fiber both can use
- Cable diameter 0.9mm 2mm or 3mm or custom
- Every one piece will be pack with a plastic bag, and with test report sticker on the bag.
Patch Cord Pigtail Application
Pigtail in ofc can be installed in many types of fiber optic equipment, like ftth mini wall mount box, fiber termination box, optical distribution box, joint splice closure, ODF, cabinet, or distribution frame, etc.
Patch Cord Pigtail Specification
| Product name | E2000 pigtail |
| Fiber count | 1 core |
| Fiber type | Single mode, Multimode |
| Cable diameter | 0.9mm, 2.0mm, 3.0mm |
| Cable sheath | PVC, LSZH, TPU, PE |
| Polish mode | UPC, APC |
| Cable sheath | Yellow, orange, aqua, purple, green |
| Insertion loss | ≤0.2dB (typical 0.05dB) |
| Return loss | ≥55dB (typical:60dB) |
| Changeability | ≤0.1dB (typical 0.05dB) |
| Repeat ability | ≤0.1dB (typical 0.05dB) |
| Plug times | ≥1000times |
| Working temperature | -40 ~+80℃ |
| Storage temperature | -40 ~+85℃ |
Patch Cord Pigtail Details
Yigda patch cord pigtail E2000 are use RM or HS type Europe 2000 Connectors, with auto shutter cover on top of the connector, no need additional dust cap.

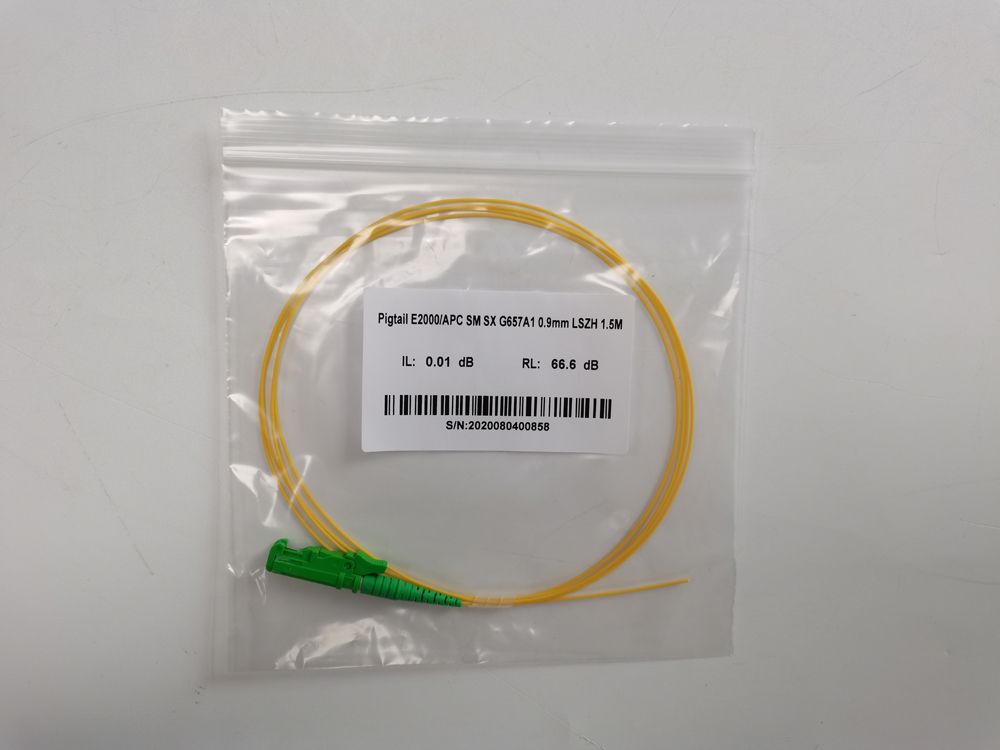

Each pigtail will be test 100% before deliver with test data on the individual plastic bag with serial number, which is traceability.

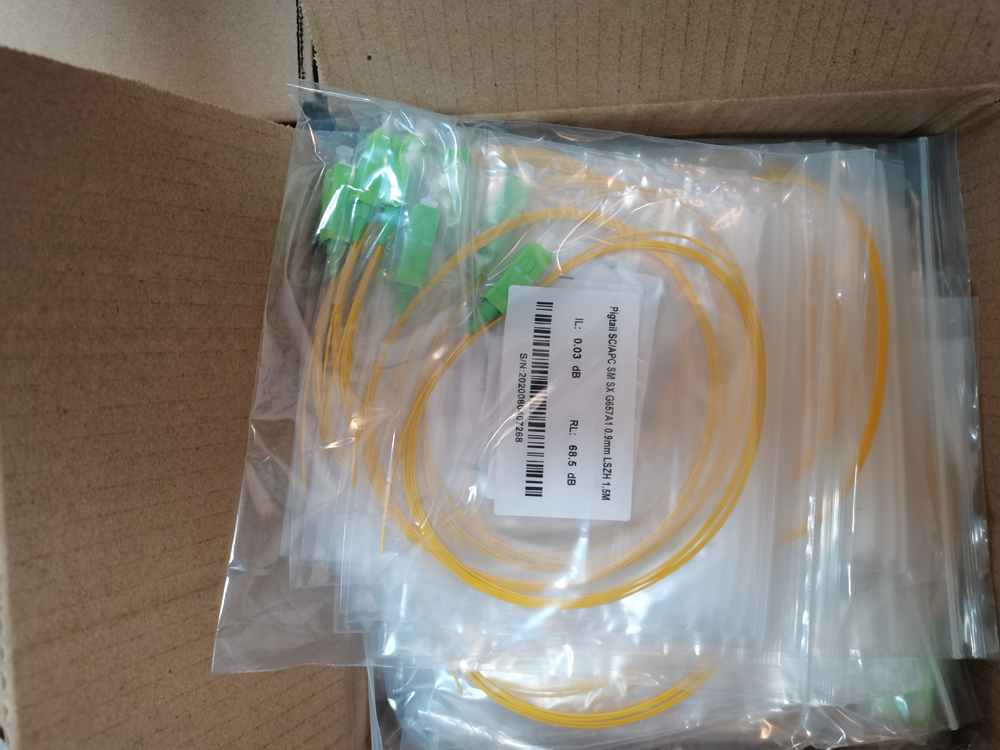

Yingda provide safe and durable package for patch cord pigtails, 1pc/bag, 10pcs/bag, then pack in inner carton box, then in outer carton box.
We provide custom package method for cost reduction or brand promotion.
