Description
Fiber Optic Signal Splitter 2×64 Features
- Low Insertion loss
- Low PDL
- Compact Design
- Good channel-to-channel uniformity
- High Reliability and Stability
- Conforms to Telcordia GR-1209&GR-1221, ROHS
Fiber Optic Signal Splitter 2×64 Specification
| Parameters | 2×64 |
| Operating Wavelength(nm) | 1260～1650 |
| Insertion Loss (dB)（P/S Grade） | 21.0/ 21.5 |
| Loss Uniformity(dB) | 2.2 |
| Return Loss (dB)（P/S Grade） | 55/50 |
| Polarization Dependent Loss(dB) | 0.4 |
| Directivity (dB) | 55 |
| Wavelength Dependent Loss(dB) | 0.5 |
| Temperature Stability(-40～8℃)(dB) | 0.5 |
| Operating Temperature(℃) | -40～85 |
| Storage Temperature(℃) | -40～85 |

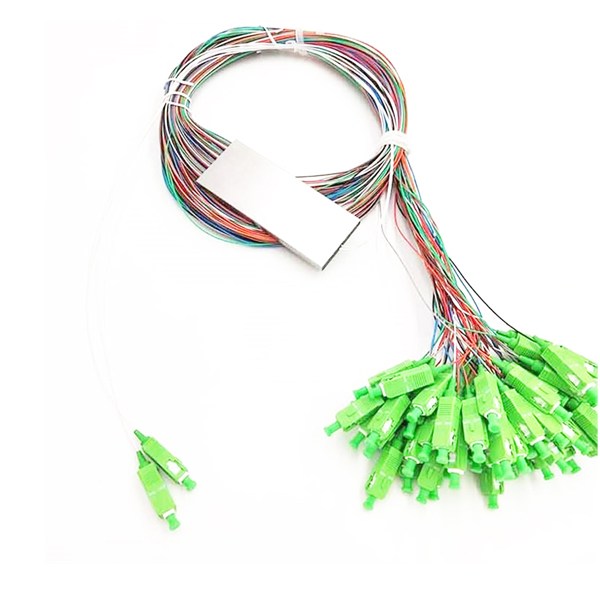

Detailed Display of Fiber Optic Signal Splitter 2×64
The 2×64 fiber optic signal splitter is a passive optical component that distributes optical signals. It has 2 input ports and 64 output ports, enabling the splitting of optical power from 2 input paths to 64 output paths in fiber optic communication systems.
The green connectors are SC type, which are widely used for their simplicity and good performance. SC connectors feature a push-pull latching mechanism, ensuring stable connections and easy installation and removal.
The splitter is connected with fiber cables. These cables are typically made of silica glass or plastic for optical signal transmission. The outer sheath of the cables provides protection against physical damage, bending, and environmental factors like moisture and dust. The colorful fibers inside may indicate different optical wavelengths or be used for identification and management purposes in a fiber optic network.
