Fiber Optic Splitter Unbalanced 50/50 Features
- Low insertion loss and high return loss
- PDL automatic screening system(Ultra low PDL is available)
- High reliability and stability
- Connector can up to grade B
- 100% 3D tested by Daisi and Sumix
- High-low temperature cycle test
- 100% test before delivery
- FTTH Cabling solution could be design
Fiber Optic Splitter Specification
| Split ratio (%) | 85/15 | 80/20 | 70/30 | 60/40 | |
| Operating wavelength (nm) | 1260-1650 | ||||
| Fiber type | G657A or customized | ||||
| IL max(dB) | channel 1 | 1.6 | 1.8 | 2.1 | 2.7 |
| channel 2-9 | 21.0 | 18.6 | 16.5 | 15.1 | |
| IL uni(dB) | Channel 2-9 | 1.8 | 1.8 | 1.8 | 1.8 |
| Return loss (dB) | ≥55 | ||||
| Directivity (dB) | ≥55 | ||||
| PDL (max.) | 0.3 | 0.3 | 0.3 | 0.3 | |
| Uniformity (max.) | 0.8 | 0.8 | 0.8 | 0.8 | |
| Wavelength dependent loss (dB) | ≤0.3 | ||||
| TDL (max.) | 0.5 | ||||
| Operating temperature | -40 ~+85 | ||||
| Storage temperature | -40 ~+85 | ||||
| Dimension (mm) / LXWXH | Bare fiber steel tube | 60x7x4 | 60x7x4 | 60x7x4 | 60x7x4 |
| 900um steel tube | 60x7x4 | 60x7x4 | 60x7x4 | 60x7x4 | |
| ABS box | 120x80x18 | 120x80x18 | 120x80x18 | 120x80x18 | |
Fiber Optic Splitter Unbalanced 50/50 Details
This fiber optic splitter features a 1×9 configuration, which has one input port and nine output ports. The splitter is designed to split an incoming optical signal into nine separate output signals with unequal power distribution.

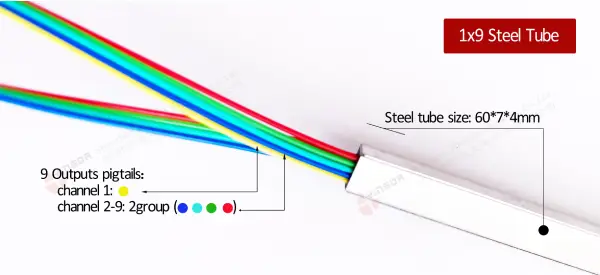

Type: A 1×9 steel tube is utilized.
Size: The steel tube measures 60×7×4mm.
Inside the steel tube, there are 9 output pigtails. Channel 1 is identified by a yellow pigtail, while channels 2-9 are grouped with pigtails in colors like blue, green, and red.

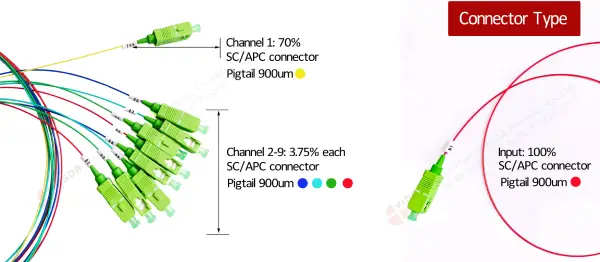

The input port uses an SC/APC connector with a 900μm pigtail (colored red). It receives 100% of the incoming optical signal. Equipped with an SC/APC connector and a 900μm pigtail (yellow). This channel (channel 1) carries 70% of the split optical power. Each of other channels (channel 2-9) uses an SC/APC connector with a 900μm pigtail (in colors such as blue, green, red, etc.). Each of these channels carries 3.75% of the split optical power. All output pigtails have a diameter of 900μm.
