Blockless PLC Splitter 1×8 Features
- Low Insertion loss
- Low PDL
- Compact Design
- Good channel-to-channel uniformity
- High Reliability and Stability
- Conforms to Telcordia GR-1209&GR-1221, ROHS
Structure of Blockless PLC Splitter 1×8

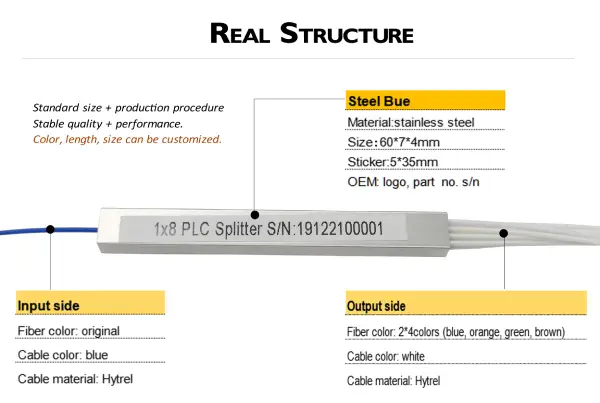

Inside the metal splitter module (the rectangular part with the label), there’s a PLC chip. This chip is the core, fabricated using planar lightwave circuit technology. It has a waveguide structure that precisely splits the incoming optical power into 8 equal (or as per design ratio, though 1×8 is usually designed for uniform splitting) output channels through optical interference and mode coupling principles.
Blockless PLC Splitter 1×8 Specification
| Parameters | 1×8 |
| Operating Wavelength(nm) | 1260～1650 |
| Insertion Loss (dB)（P/S Grade） | 10.2/10.5 |
| Loss Uniformity(dB) | 0.8 |
| Return Loss (dB)（P/S Grade） | 55/50 |
| Polarization Dependent Loss(dB) | 0.2 |
| Directivity (dB) | 55 |
| Wavelength Dependent Loss(dB) | 0.3 |
| Temperature Stability (-40～8℃)(dB) | 0.4 |
| Operating Temperature(℃) | -40～85 |
| Storage Temperature(℃) | -40～85 |
Details of Blockless PLC Splitter 1×8
The splitter 1×8 is a passive optical component used in fiber optic communication networks. It evenly distributes an optical signal from 1 input fiber to 8 output fibers, enabling functions like signal splitting in PON (Passive Optical Network) architectures, fiber test systems, etc.
The green connectors are typically SC/APC type. SC connectors feature a push-pull latching mechanism for easy insertion and removal. APC polishing (with an 8° angle) minimizes back reflection, which is crucial for maintaining signal integrity, especially in high-speed, long-haul optical networks.

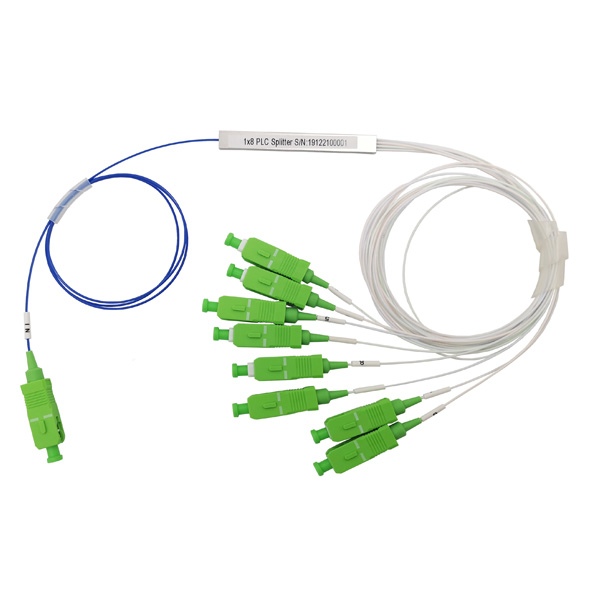

There are two main types of fiber cables visible. The blue-jacketed fiber is often the input side (the single fiber that carries the incoming signal to be split). The white-jacketed fibers are the output sides (the eight fibers that transmit the split signals).
