GPON Fiber Splitter are fully passive optical branching devices that exhibit very low insertion loss and PDL. This 1×6 GPON Unbalanced Fiber Splitter is crucial for passive optical networks. It distributes one input optical signal to six outputs at unequal power ratios. With neatly arranged green connectors and organized colored fibers, it ensures stable connections. Featuring SC/APC connectors for low insertion and high return loss, it suits indoor and outdoor deployments.
| Split ratio (%) | 85/15 | 80/20 | 70/30 | 60/40 | |
| Operating wavelength(nm) | 1260-1650 | ||||
| Fiber type | G657A or customized | ||||
| IL max(dB) | channel 1 | 1.6 | 1.8 | 2.1 | 2.7 |
| channel 2-9 | 21 | 18.6 | 16.5 | 15.1 | |
| IL uni(dB) | Channel 2-9 | 1.8 | 1.8 | 1.8 | 1.8 |
| Return loss (dB) | ≥55 | ||||
| Directivity (dB) | ≥55 | ||||
| PDL (max.) | 0.3 | 0.3 | 0.3 | 0.3 | |
| Uniformity (max.) | 0.8 | 0.8 | 0.8 | 0.8 | |
| Wavelength dependent loss (dB) | ≤0.3 | ||||
| TDL (max.) | 0.5 | ||||
| Operating temperature (℃) | -40 ~+85 | ||||
| Storage temperature (℃) | -40 ~+85 | ||||
| Dimension(mm) | Bare fiber steel tube | 60x7x4 | |||
| 900um Steel tube | 60x7x4 | ||||
| ABS box | 120x80x18 | ||||

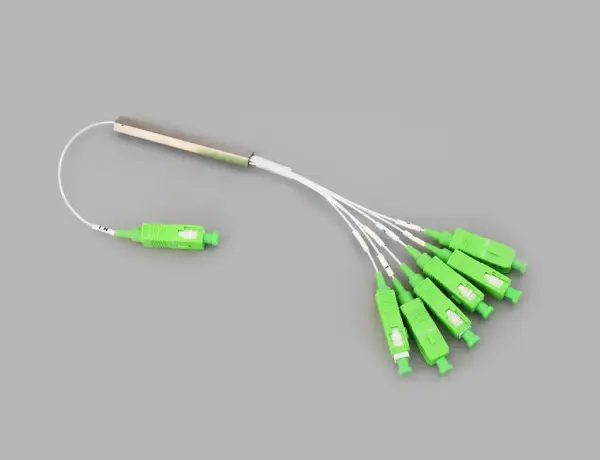

In terms of structure,this splitter with a compact, rectangular plastic casing. Inside, there are green connectors neatly arranged, and a bundle of colored optical fibers that are well-organized, ensuring efficient signal distribution.
Moreover, this unbalanced splitter features with a metallic ferrule at one end, which is used for connecting to the input optical fiber. From this ferrule, multiple fibers extend, each terminated with a green connector, allowing for connection to different output devices.
As an unbalanced splitter, it distributes the optical signal from one input port to six output ports with unequal power ratios. This design is beneficial in GPON systems where different users or network segments may require varying signal strengths, optimizing the use of optical power and enhancing network performance. The green connectors are typically SC/APC type, which provide low insertion loss and high return loss, ensuring reliable signal transmission. The overall construction ensures durability and stable optical performance, making it suitable for both indoor and some outdoor optical network deployments.
 |
 |
 |
|
