Single Mode Fiber Optic Splitter 1×4 ST UPC Connectors, 1.5 mts, G.657b3 Fiber, Bag Pack

This 1×4 splitter uses PLC technology to split one input optical signal (from the “IN” end) into four uniform (or with a specific splitting ratio, usually uniform for 1×4 splitters) output signals, which are sent out through the ports numbered “1”–“4”. It’s widely used in FTTH, optical local area networks, and optical communication system fiber distribution, distributing signals from the main fiber to multiple user-side or branch devices.

SKU YDPLC-MM-104-STST Category Tags , Brand:

Description

Fiber Optic Splitter 1×4 Features

  • Low Insertion loss
  • Low PDL
  • Compact Design
  • Good channel-to-channel uniformity
  • High Reliability and Stability
  • Conforms to Telcordia GR-1209&GR-1221, ROHS



Fiber Optic Splitter 1×4 Specification

Parameters 1×4
Operating Wavelength(nm) 1260~1650
Insertion Loss (dB)(P/S Grade) 7.1/
7.3
Loss Uniformity(dB) 0.6
Return Loss (dB)(P/S Grade) 55/50
Polarization Dependent Loss(dB) 0.2
Directivity (dB) 55
Wavelength Dependent Loss(dB) 0.3
Temperature Stability
(-40~8℃)(dB)
0.4
Operating Temperature(℃) -40~85
Storage Temperature(℃) -40~85



Details of Fiber Optic Splitter 1×4

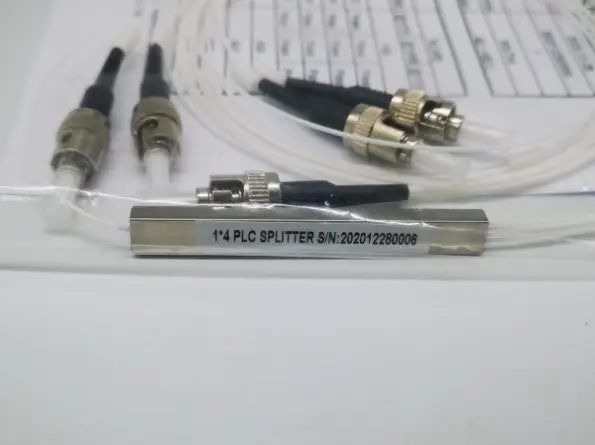

The core is a module (the silver strip in the pictures) marked with “1*4 PLC SPLITTER”. It also has a serial number (like “S/N:202012280006” in the picture) for product identification and traceability.

High Reliability: Based on mature PLC technology and standard connectors, it ensures low-loss and stable signal splitting, with optical indexes like insertion loss and return loss meeting industry standards.

single mode fiber optic splitter 1x4 st upc connectors, 1.5 mts, g.657b3 fiber, bag pack

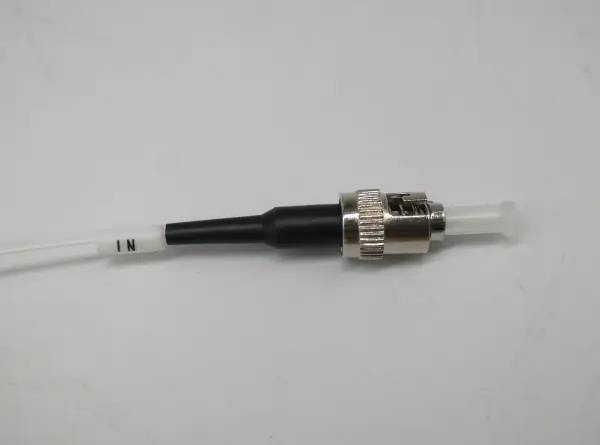

There is one input fiber labeled “IN”.  It uses a connector (similar to FC type here, connected by screwing to ensure stable optical signal transmission) to receive the input optical signal.

single mode fiber optic splitter 1x4 st upc connectors, 1.5 mts, g.657b3 fiber, bag pack

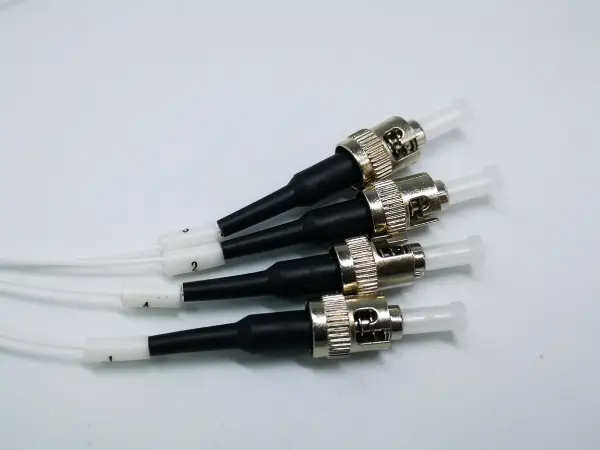

Four output fibers are provided. Numbers “1”, “2”, “3”, and “4” on these fibers (in the fourth picture) are used to distinguish different output ports, facilitating accurate connection to receiving devices or subsequent optical links in optical network systems. Their connectors match the input side for compatibility. The white outer sheath of the fibers protects the internal structure and helps with wiring and identification.

single mode fiber optic splitter 1x4 st upc connectors, 1.5 mts, g.657b3 fiber, bag pack

Easy Connectivity: Uniform connectors enable quick connection to other optical devices, simplifying network wiring and maintenance.
