Description
PLC Splitter 1×16 Features
- Low Insertion loss
- Low PDL
- Compact Design
- Good channel-to-channel uniformity
- High Reliability and Stability
- Conforms to Telcordia GR-1209&GR-1221, ROHS
PLC Splitter 1×16 Specification
| Parameters | 1×16 |
| Operating Wavelength(nm) | 1260～1650 |
| Insertion Loss (dB)（P/S Grade） | 13.5/ 13.7 |
| Loss Uniformity(dB) | 1.2 |
| Return Loss (dB)（P/S Grade） | 55/50 |
| Polarization Dependent Loss(dB) | 0.25 |
| Directivity (dB) | 55 |
| Wavelength Dependent Loss(dB) | 0.5 |
| Temperature Stability (-40～8℃)(dB) |
0.5 |
| Operating Temperature(℃) | -40～85 |
| Storage Temperature(℃) | -40～85 |
Detailed Display of PLC Splitter 1×16
Uses planar lightwave circuit technology to evenly split 1 input optical signal into 16 output signals, enabling optical power distribution in PON (Passive Optical Network) architectures like FTTH.

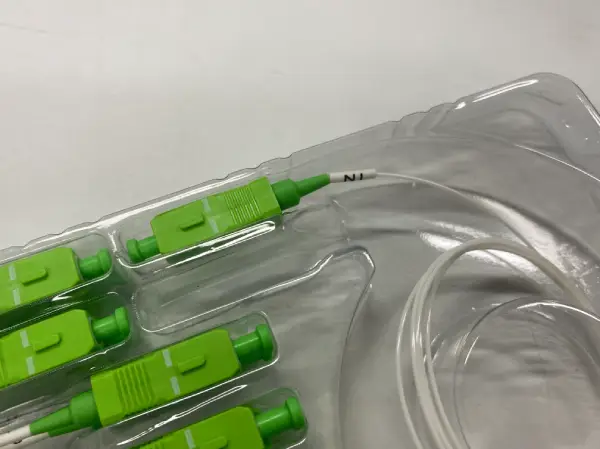

Green SC/APC connectors (green color indicates APC polish, reducing back reflection for better signal quality). The SC interface ensures easy, standardized coupling with optical ports. Typically a single fiber (e.g., white jacket in images), carrying the incoming optical signal.

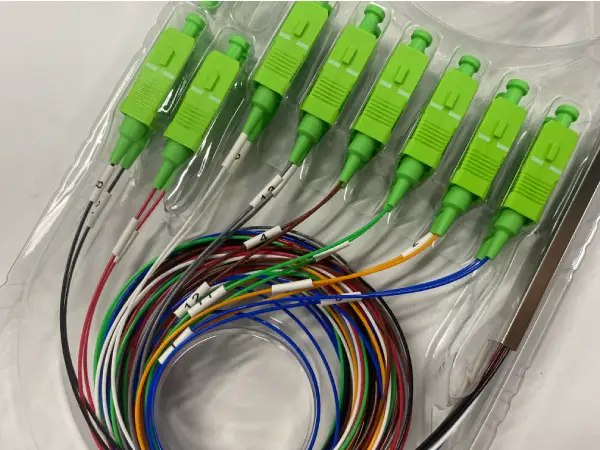

Multi-colored fibers (standard color coding for identification, e.g., blue, orange, green, etc.), each delivering a split signal to end-devices or distribution points.
