1260-1650nm Full Wavelength Passive Optical Network Splitter 1×9 60 40 Without Connectors, 0.9mm Steel Tube White Color

1X9 Passive optical network splitter use a plc chip 1×9 to divide optical signals to 9 channels in unequal splitting ratio from 1% to 100%. Channel no.1 is big split ratio from 50% to 100%, the rest 8 channels are equal split ratio. For example 1×9 splitter 60/40, that means channel 1 is 60%, and channel 2-9 total 40%, and each channel will be 5%.

SKU YDPLC-MM-109-60-40 Category Tags , Brand:

Description

Passive Optical Network Splitter Features

  • Low insertion loss and high return loss
  • PDL automatic screening system(Ultra low PDL is available)
  • High reliability and stability
  • Connector can up to grade B
  • 100% 3D tested by Daisi and Sumix
  • High-low temperature cycle test
  • 100% test before delivery
  • FTTH Cabling solution could be design



Passive Optical Network Splitter 1×9 60%/40% Specification

Split ratio (%) 60/40
Operating wavelength (nm) 1260-1650
Fiber type G657A or customized
IL max(dB) channel 1 2.7
  channel 2-9 15.1
IL uni(dB) Channel 2-9 1.8
Return loss (dB) ≥55
Directivity (dB) ≥55
PDL (max.) 0.3
Uniformity (max.) 0.8
Wavelength dependent loss (dB) ≤0.3
TDL (max.) 0.5
Operating temperature -40 ~+85
Storage temperature -40 ~+85
Dimension (mm) / LXWXH Bare fiber steel tube 60x7x4
  900um steel tube 60x7x4
  ABS box 120x80x18



Passive Optical Network Splitter 1×9 60%/40% Details

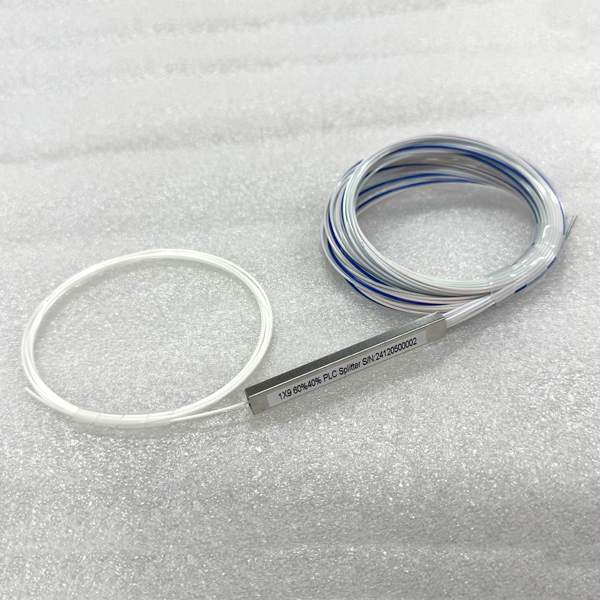

There is a circular optical fiber loop and a bundle of optical fibers with blue and white stripes, along with a component that appears to be part of the splitter structure. These elements are essential for the splitting and transmission of optical signals.

1260 1650nm full wavelength passive optical network splitter 1x9 60 40 without connectors, 0.9mm steel tube white color

A closer view of a part of the splitter is presented. The visible component has markings on it, which contain product specifications or identification information. This helps in identifying and ensuring the correct configuration of the splitter for optical network applications.

1260 1650nm full wavelength passive optical network splitter 1x9 60 40 without connectors, 0.9mm steel tube white color

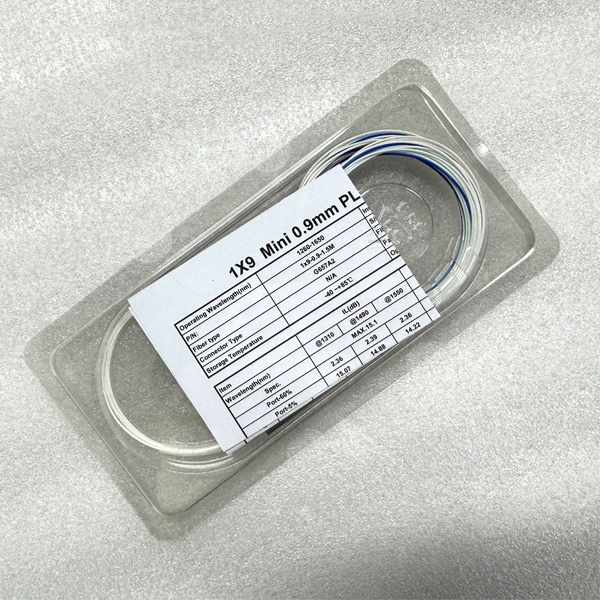

The splitter is packaged in a transparent plastic case, which helps protect it and allows for easy identification of the product. Inside the package, there is a spectfication with detailed information, including technical parameters, model number, and other relevant data about the Unbalanced Passive Optical Network Splitter 1×9 60%/40%, ensuring proper storage and easy access to product details.

1260 1650nm full wavelength passive optical network splitter 1x9 60 40 without connectors, 0.9mm steel tube white color

Passive optical splitters like this one are key components in optical communication networks, used to split an incoming optical signal into multiple outgoing signals with specified power distributions. The 60%/40% splitting ratio means that when an optical signal enters the input port, approximately 60% of the optical power goes to one output port, and around 40% goes to another, enabling flexible distribution of optical signals in passive optical network (PON) architectures. The multiple fibers indicate that it can split one input into nine outputs, each with the appropriate power allocation as per the 60%/40% ratio for different output paths.
