Description
Features
- Excessive fibers can be stored in storage Easy in fiber management.
- Fully mechanical sealing. Easy installation and No other sealing adhesive tape is needed.

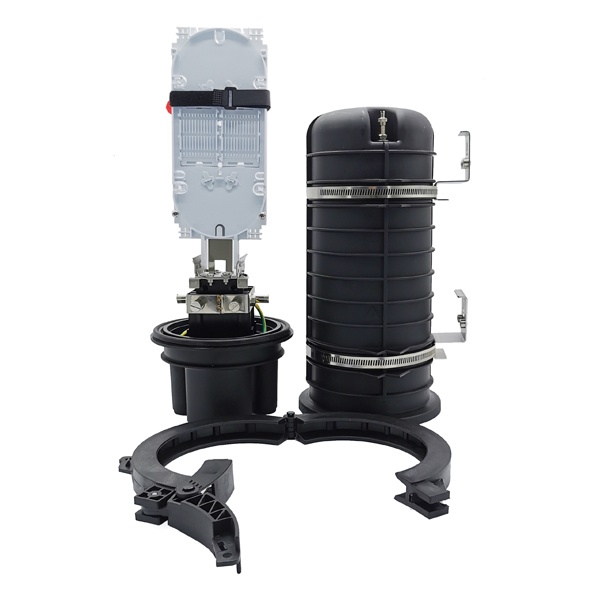

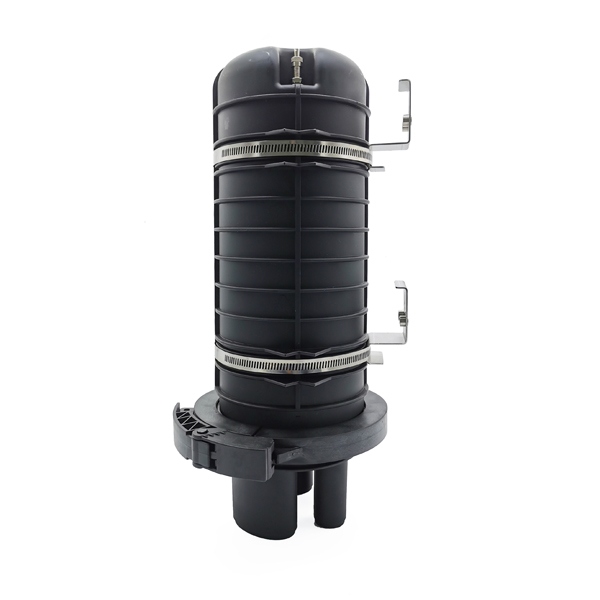

- Base and dome sealed with clamp and O-ring Cable entry ports sealed with rubber.

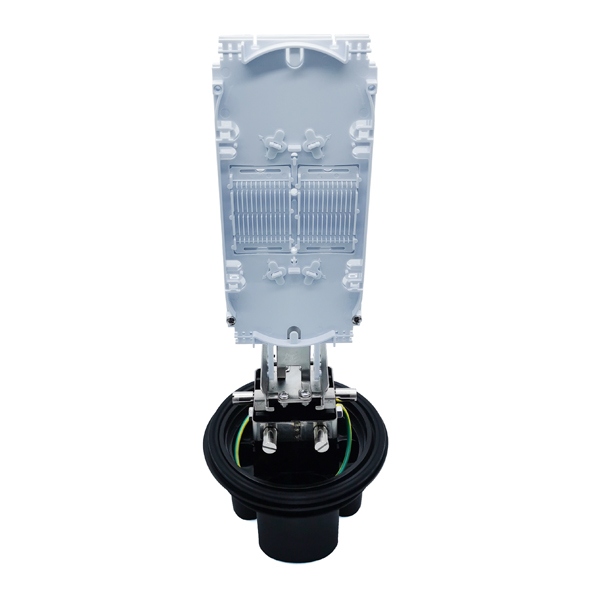

- The splice trays are hinged for access to any splice tray, without disturbing other
- The inner parts and fixing parts are made of stainless steel.
- With a earthing device protect it from damage by lightning.
- Compatible with most cable types(single fiber or ribbon), and cable constructions(loose tube, central core, slotted core, modular). And the product can be used in any environment (aerial, buried, hand hole, manhole)and in many applications (tap-off, expressed, branch, and repair).
Technical Parameter
- WorkingTemperature: -40 degrees centigrade~+70 degrees centigrade.
- AtmosphericPressure: 70~150Kpa.
- AxialTension: >2000N/1min.
- StretchingResistance: 2500N/10 square centimetre(1min).
- Insulationresistance: >2*104MΩ.
- VoltageStrength: 15KV/1min, no arcover or breakdown.
- Pressurein the water: 50m/72hours.
- Splice tray with optical taking-in radius: 30mm. Low optical loss.
Application
It can be installed in aerial locations, duct applications, direct buried, manholes. Small volume but large capacity.
Specification
| Model | Tray qty | Tray capacity /fibers | Total capacity /fibers | Dimension /mm | Entry port dia. | Raw material |
| FOSC400 A4 | 6 | 24 | 144 | 410*250 | 4 round ports available for cable dia.<11.5mm; 1 oval port available for 2pcs dia. ≤ 20mm | Modified PP +GF; tray:ABS |
