Description
Splitter 1 64 Features
- Distribute the fiber signal evenly to the required customers, solving the supply and demand problem of one fiber for multiple households
- All-fiber structure, good environmental stability, low polarization-related loss, in line with telecommunications standards
- The loss is insensitive to light waves, can meet the transmission needs of different wavelengths, low insertion loss, and stronger transmission.
- Modularity is a combination, which can be directly inserted into the integrated tray for use, quick installation and easy use.
- Made of high-strength ABS engineering plastic injection molding, impact resistance, heat resistance, low temperature resistance, sturdy and durable.
Splitter 1 64 Application
Applicable to multiple fields such as community network, security monitoring system, fiber to the home, system TV broadcasting, transmission intelligent network system, intelligent production, etc.
Splitter 1 64 Specification
Item | Cassette splitter |
Diemension | 300*180*50mm |
Material | ABS engineering plastic |
Wavelength | 1260-1650nm |
Interface | SC LC FC ST |
Working temperature | -40 ~+85℃ |
Split ratio | 1×2, 1×4, 1×8, 1×16, 1×32, 2×2, 2×4, 2×8, 2×16, 2×32 |
Splitter 1 64 Details

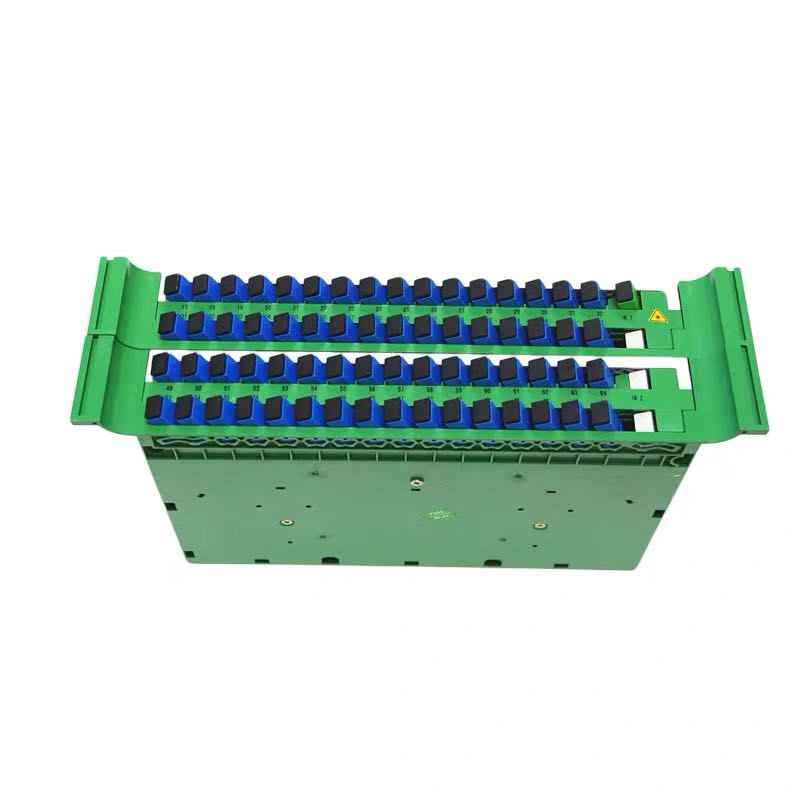

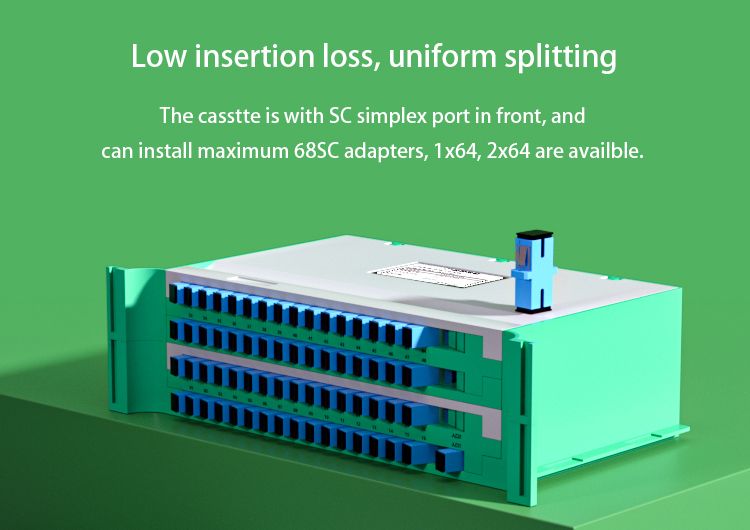

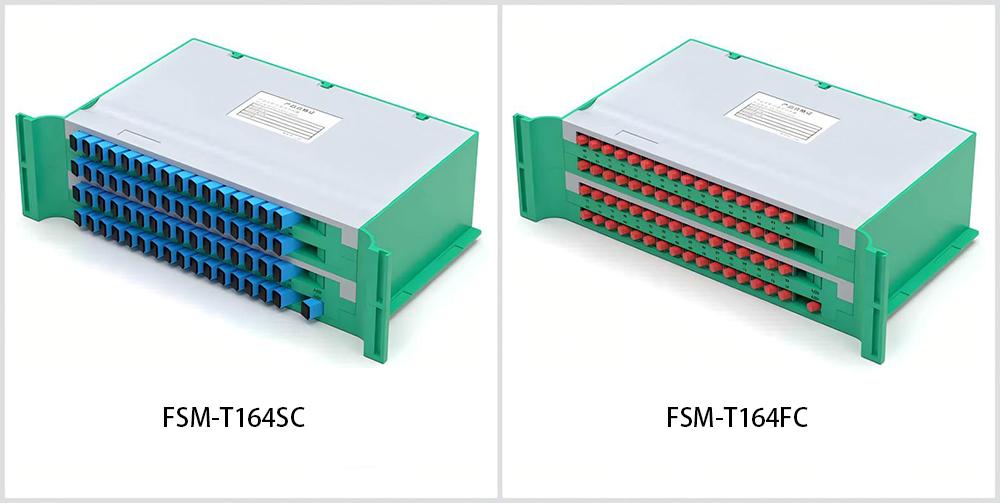

The front adapter port can be SC or FC types, input can be 1 port or 2 ports, to load 1×64 splitter cassette or 2×64 splitter cassette.
The splitter is mainly installed inside of the box with glue, without trays. And the cable entrance will mark IN1, IN2 in front panels.

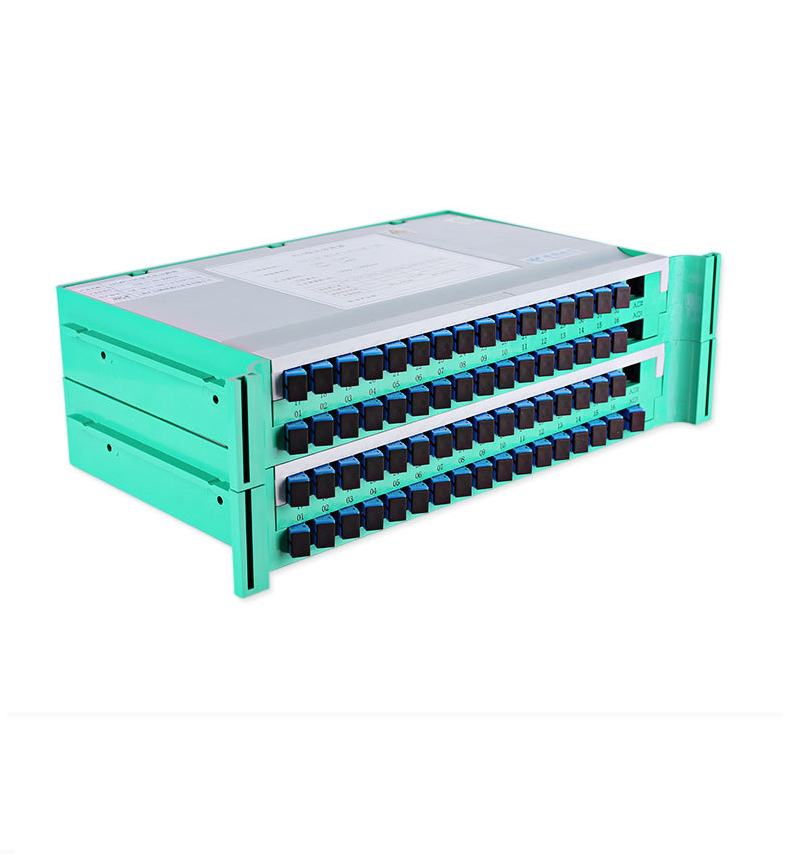

The tilted SC port is more convenient for plugging and unplugging, with a humanized design.
Yingda provide whole series of splitter cassette, like 1X2, 1X4, 1X8, 1X16, 1X32, 1X64, 2×2, 2×4, 2×8, 2×16, 2×32, 2×64, etc. The cassette is made of high impact engineering plastic, good reisistance to high and low temperature, and durable and stable optical performance.
The splitter is not sensitive to wavelength, 1260-1650nm full wavelength can be used, with low insertion loss, low PDL, and high renturn loss.
Splitter 1 64 Application
1×64 splitter cassette are mainly used in optical distribution frame as below, for central management of splitter, cables.
Cassette Type Splitter Internal Structure

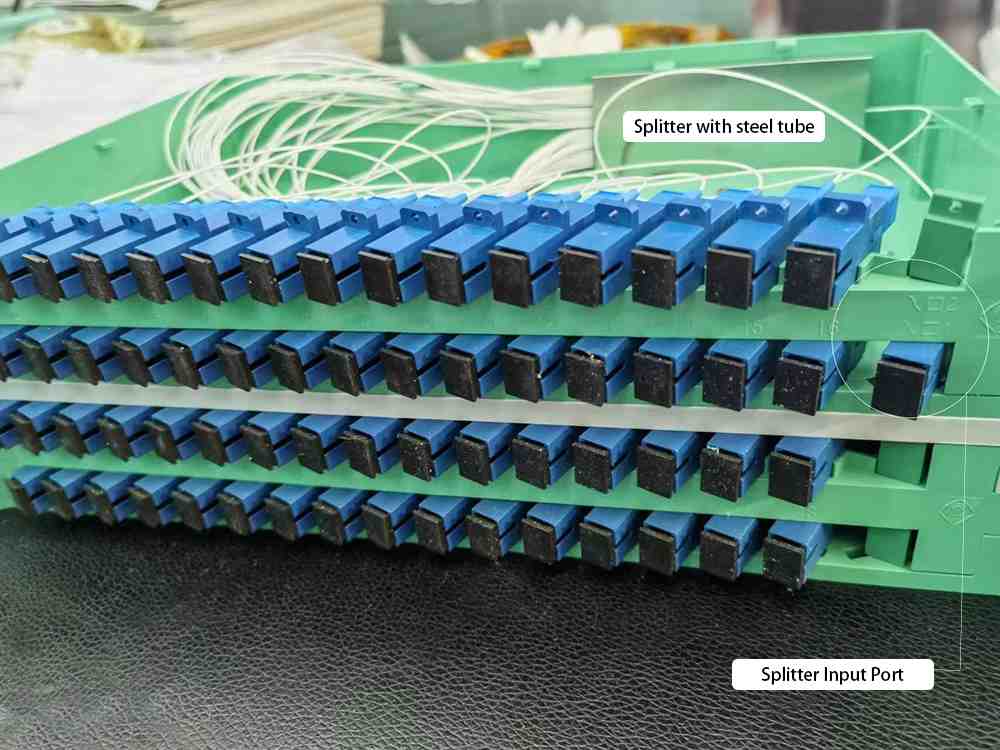

There are two types of fiber optic splitters can be used inside of the tray, steel tube splitter or abs splitter module, both can be fixed on the bottom with glues.
Yingda can provide empty splitter casstte or pre-load with splitters and adapters in factory, there is no fusion splicing slots for sleeve, but empty inside with holes and smooth surface to fix the splitters. There is guiding rails at both sides for cable management or sliding into the optical distribution frames in standard rack.
