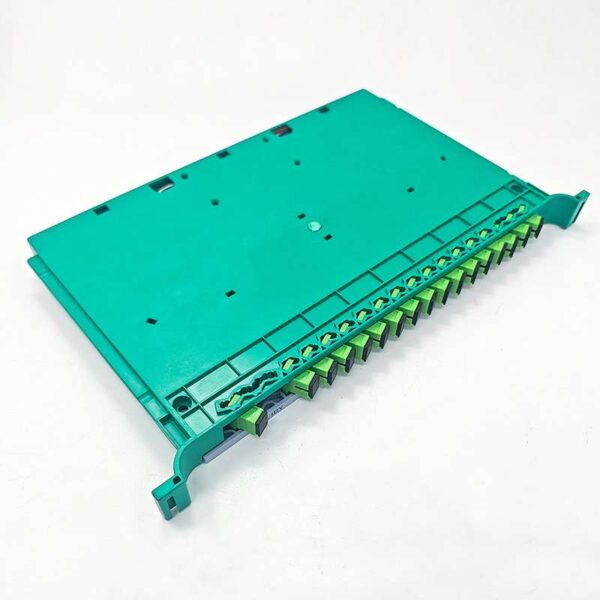

1 * 16 splittercassette sc upc apc connectors, 300*180*25mm plastic material ABS, Green

Description

Splitter Cassette Features

• Distribute the fiber signal evenly to the required customers, solving the supply and demand problem of one fiber for multiple households
• All-fiber structure, good environmental stability, low polarization-related loss, in line with telecommunications standards
• The loss is insensitive to light waves, can meet the transmission needs of different wavelengths, low insertion loss, and stronger transmission.
• Modularity is a combination, which can be directly inserted into the integrated tray for use, quick installation and easy use.
• Made of high-strength ABS engineering plastic injection molding, impact resistance, heat resistance, low temperature resistance, sturdy and durable.

1*16 Splitter Application

Applicable to multiple fields such as community network, security monitoring system, fiber to the home, system TV broadcasting, transmission intelligent network system, intelligent production, etc.

Specification

Cable Management Tray with splitter 1×16 Dimension

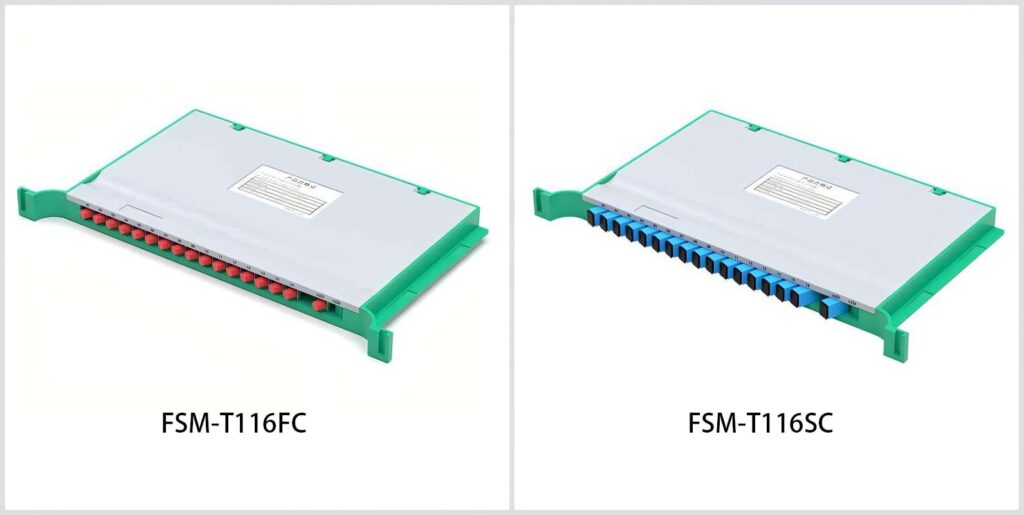

Splitter Cassette Types

Optical passive splitter cassette can be 16 ports, 32 ports outputs, with SC LC FC ST connectors, cable entry can be 1 port or 2 ports.

so 1 way can be used for 1×16, 2×16, 2 ways can do 1×32 or 2×32 splitters.

There are two types of fiber optic splitters can be used inside of the tray, steel tube splitter or abs splitter module, both can be fixed on the bottom with glues.
