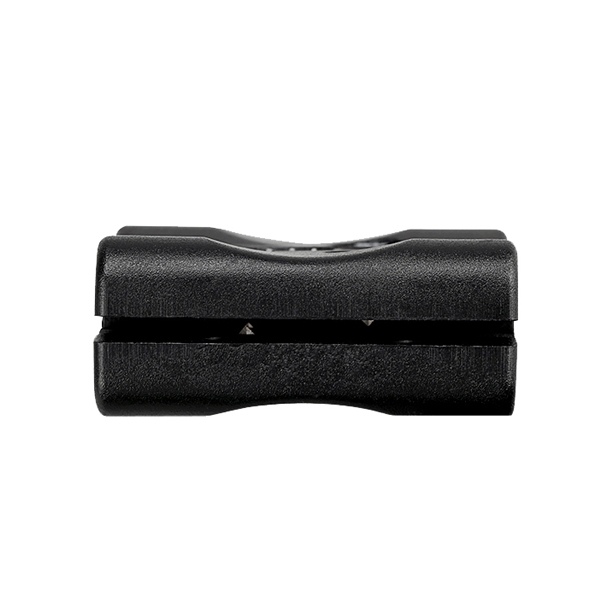

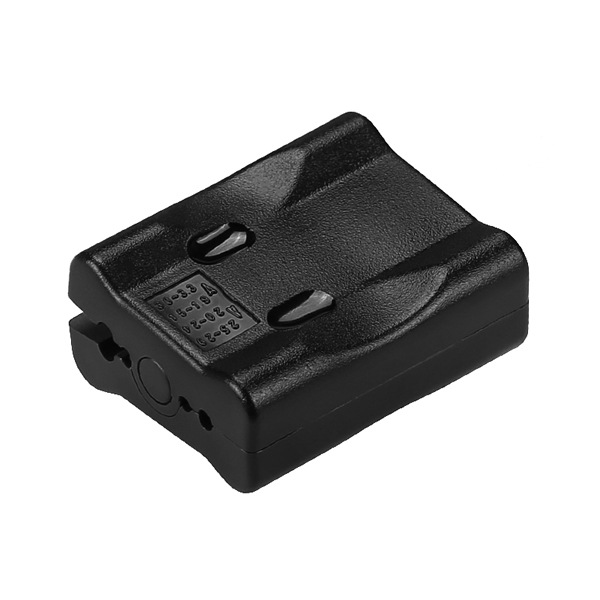

Fiber Optic Cable Jacket Slitter, for 2-25mm Diameter Tubes, Adjustable Depth, Loose Tube & Tight Buffer Compatible

Fiber optic cable jacket slitter is an efficient and indispensable tool for fiber optic cable termination. The stripping size factory is preset without any adjustment when operation, it is a simple tool for quick and simple removal of outer sheath of most fiber with diameters of 1.5mm to 3.3mm. Fiber is simply placed in one of the 4 preset grooves and device is pulled along the length, slicing sheath into two halves.

Description

Features

  • Light weight, cost effective, double-sided opening design, easy to draw fiber and operate;
  • Stripping size factory is preset, no need to adjust;
  • Product surface groove design, not only anti-skid, grip feeling is more comfortable;
  • Sharp blade, made of alloy blade, upper and lower double blade, neat incision, convenient and labor-saving;
  • The double cutting groove designed by the central shaft makes the product use longer.



Technical Specification

MODEL YDLS-001
Tool size 50×40×21mm
Cable diameter range 1.5-3.3mm
Cable size Ø1.5~Ø1.9mm

Ø2.0~Ø2.4mm

Ø2.5~Ø2.9mm

Ø3.0~Ø3.3mm

Blade material Alloy
Net weight 35g
Pack weight 50g
Package size 64x64x25mm
Mirror Adjustment Manual
Exterior Smooth
Color Black



Ruqeust For Quote

The more details, the better offer, will reply you in 24 hours.
