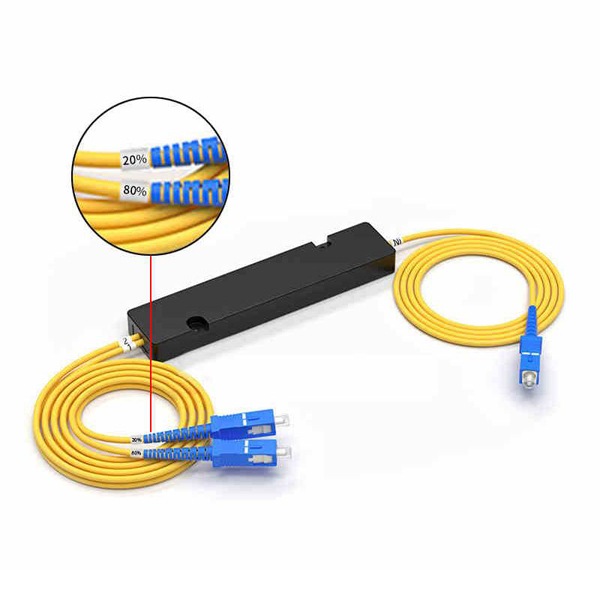

Description
Features
- Low excess loss
- Various coupling ratio
- Compact Size, light weight
- All type of connectors FC SC LC ST
Coupling Ratio Insertion Loss Conversion Chart
| Coupling Ratio | Insertion loss (dB) |
| 1/99 | 20.2/0.24 |
| 5/95 | 13.21/0.42 |
| 10/90 | 10.2/0.66 |
| 15/85 | 8.44/0.91 |
| 20/80 | 7.19/1.17 |
| 25/75 | 6.22/1.45 |
| 30/70 | 5.43/1.75 |
| 35/65 | 4.76/2.07 |
| 40/60 | 4.18/2.42 |
| 45/55 | 3.67/2.8 |
| 50/50 | 3.21/3.21 |
| Coupling ratio (%) | 1-50 |
| Directivity (dB) | >55 |
| Operating Temperature (℃) | -20 – + 85 |
| Storage Temperature (℃) | -40 – + 85 |
| Fiber Type | Corning Single mode SMF-28, DS Fiber, or flex core |
| Fiber Pigtail Length (m) | 1 |
| Port Configuration | 1×2 or 2×2 |
| Package Dimension | Package D,E,F,G |
