Description
Features of Fibre Distribution Cabinet
- Total enclosed structure with 1 buckle, easy to open and close.
- Made of high strength engineering ABS, water-proof, dust proof, anti-aging, RoHS compliance.
- Clamping for feeder cable and drop cable, fiber splicing, fixation, storage distribution all in one.
- Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapter .installation, easy maintenance.
- Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
- Wall-mounted or pole mounted, suitable for both indoor and outdoor use.
Specification
| Model | FDB0332H-A | FDB0332H-B |
| Dimensions (W*H*D): | 320*250*125mm | |
| Max. Capacity: | 48 cores = 2*24F splice tray | |
| Splitter qty | 4*1×8, 2*1×16,1* 1×32 or 2×32 mini splitter | 2*1*16 LGX splitter or 4*1×8 LGX splitter |
| Adapter qty | 34 SC adapters | – |
| Material | ABS | |
| Color | Black | |
| Cable ports | 3 in, 32out | |
| Cable diameter | In:ø13.5mm; out:ø3mm for drop cable or soft cable | |
| Protection Level | IP65 | |
| Installation | Wall-mounted/Pole-mounting | |
Detailed Display of Fibre Distribution Cabinet

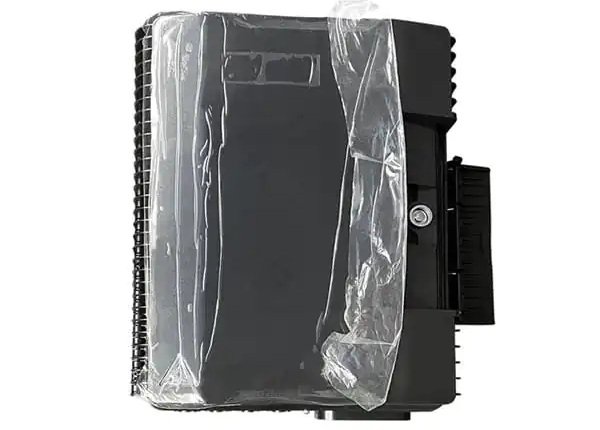

The cabinet is initially wrapped in plastic film for protection during transportation and storage.

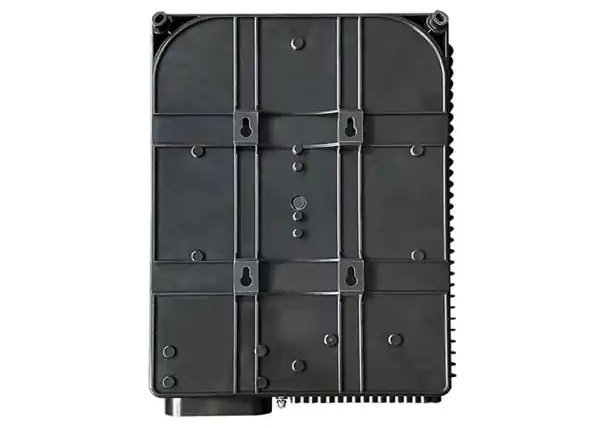

The back of the cabinet features multiple mounting points and structural reinforcements, allowing for secure installation on walls or other surfaces. It also has a textured edge design for structural integrity.

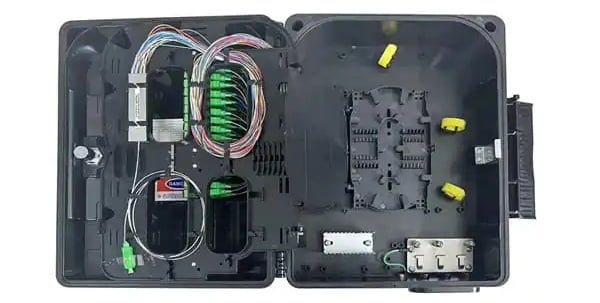

Inside, there are multiple green fiber optic adapters (connectors) that facilitate the connection of optical fibers. These adapters are organized in rows for easy access and management.

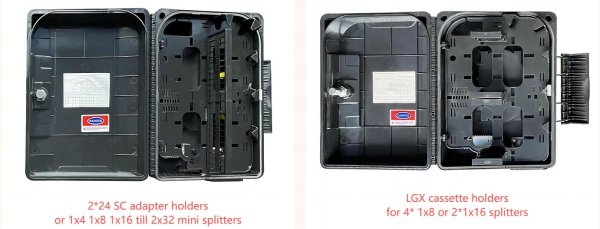

A label or documentation area is present inside the lid, which can be used for recording fiber connections, circuit information, or maintenance details.
A bundle of colored optical fibers (with different hues like red, blue, green, etc.) is neatly arranged, each connected to the adapters. This color-coding helps in identifying and managing different fiber circuits. There are fiber splicing trays and organizers to manage the splicing and routing of fibers, ensuring they are neatly arranged and protected. Various small components like yellow clips and metal fixtures are included to secure the fibers and other internal parts, maintaining order and preventing damage.
