Description
FDB0248 is access terminal box for FTTH network. It connect feeder cable or distribution cable to subscriber’s drop cable with PLC splitter. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Features
- Total enclosed with key and buckle, square shape, light weight, compact size;
- High strength engineer plastic, wet-proof/water-proof/dust-proof,anti-aging, resistance to chemical and U.V attack;
- Clamp for feeder cable and drop cable, mix fiber splicing/ fixation/storage/distribution in one;
- Cable, pigtails are running through own path without disturbing each other;
- Distribution panel can be flipped up,1X8, 1×16 micro splitter with 48 SC adapter or pigtails are available;
- Fusion plate can be maximum 48 cores splicing, large area for routing and storage;
- Feeder cable can be placed by expression port,easy for maintenance and installation;
- Outdoor Wall mount or pole mount, IP65 protection class
- Laser mark and logo print reserved on the lid
Specification
Model | FDB0248-A | FDB0248-B | |
Dimension (A*B*C) | mm | ||
Max.Capacity | 48 cores (single fiber) | ||
Cable ports | Cable entry:1mid span, 1cable gland;
Cable exit: 24outports |
||
Cable diameter | 1mid span(Φ14.5mm), 1cable gland(Φ7-12mm),
24: drop cable 2*3mm or <4.5mm round cable |
||
Splitter quantity | 4pcs 1×8 mini splitter or 2pcs 1×16 mini splitter | 2PCS 1X16 LGX chassis | |
Adapter quantity | 48 SC simplex | – | |
Color | Grey / black |
Product Details

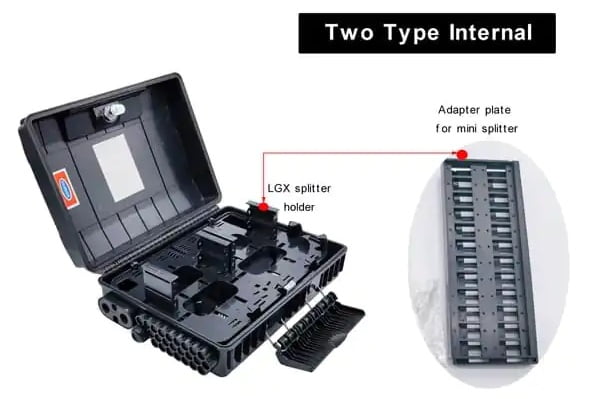

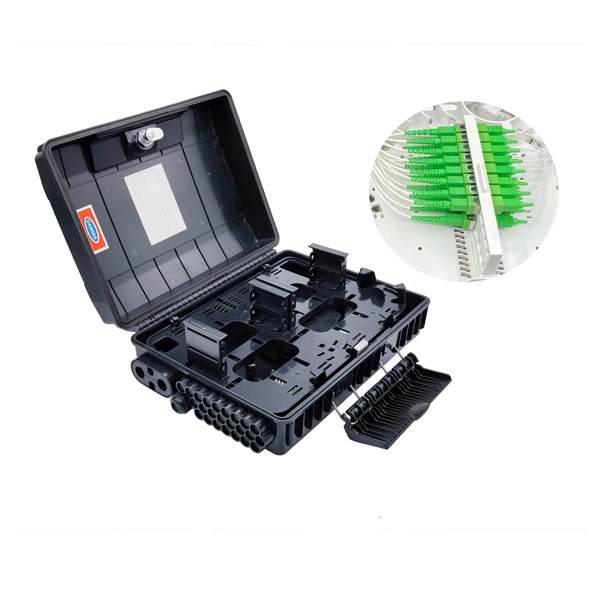

This 32 port NAP fiber optic box keep the same appearance, but can have 2 internal designs: one is for mini splitter with adapter plates 48SC holders, the other one is LGX cassette for splitter module, only change the top layer of the rotating plate, the back and the bottom keep the same.

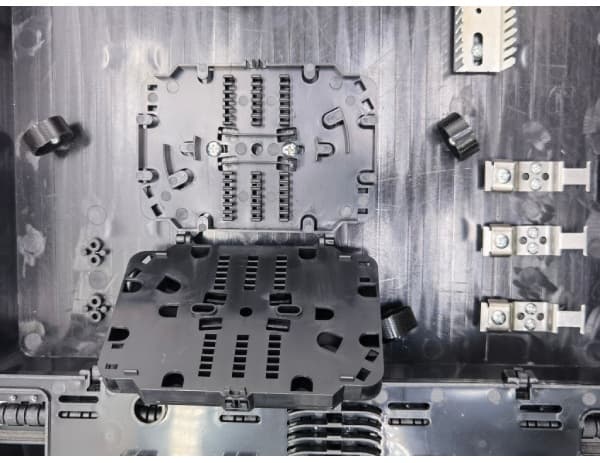

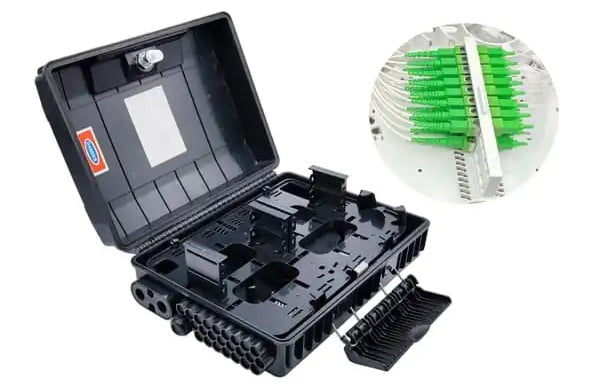

This fiber distribution box is specially design for XGSPON network, and maximum use 48 SC adapters simplex with 2×32 mini splitters, there is splitter steel tube fix slots, max. fusion splice 48 cores single fiber by 2pcs splice tray, which is overlap design. There is 2 uncut cable ports and 1 cable gland for cable entrance, and 24 round ports with rubber seals to hold the drop cable exit, the rubber can be 2 holes in one to meet 48 subscribers application, and there is cable enter and exit clamps fixtures inside of the box. If not specify, the distribution box is wall mounted, and pole mount with 2pcs metal straps.
Standard accessory
Cable clamps, expansion screws, keys, adapter plate or lgx cassette holder, heat shrink protection sleeve, nylon ties, etc.
