Ip68 Fiber Optic Box Outdoor For Ftth Drop Cable 2mm 4mm 7mm, 24 Pcs Waterproof Plugs,3pcs 1×8 Splitter Distribution With 24 Sc Connectors

Description

Features of Fiber Optic Box Outdoor

• Box is total enclosed with screw rod + 4 brackets
• High quality PP+GF plastic, with strength strips on lid or bottom
• Anti-UV, Ultra violet and rainfall resistant, protection class IP68
• Dis-mountable adapter panel max. 24SC, 4trays max. fusion 48cores
• Cable clamp and fixture for entry and exit, and large redundant fiber storage space, reasonable bend radius
• Support mid span termination, easy operation and installation

Specification

Detailed Display of Fiber Optic Box Outdoor

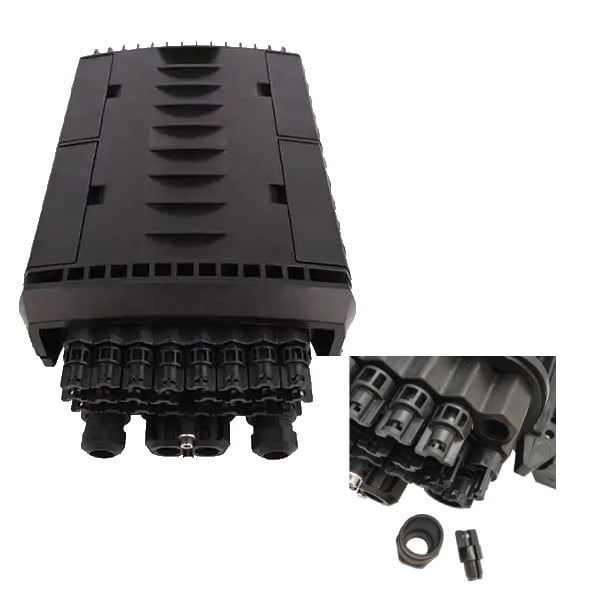

This box features a robust, black plastic enclosure designed for outdoor or harsh-environment applications, ensuring protection against dust, moisture, and physical impacts. The bottom allows for the connection of incoming and outgoing optical fibers. Additionally, there are cable entry ports with sealing components (visible as black grommets and connectors in the inset), which secure and seal the fiber cables as they enter the box, maintaining environmental resistance.

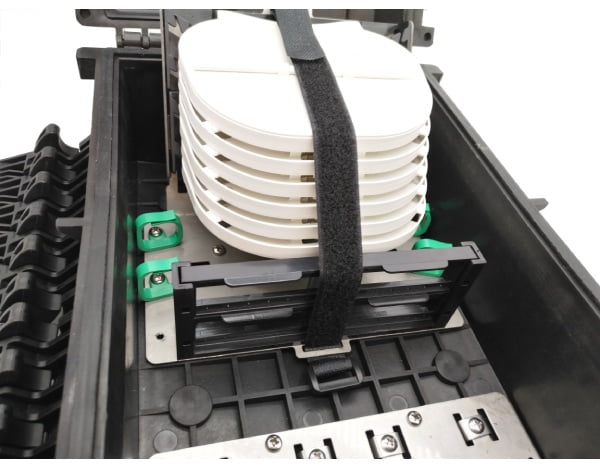

Inside, stacked white circular splice trays are secured with a hook-and-loop strap. These trays are used for fiber splicing (joining two optical fibers) and provide ample space to manage the slack and bends of the fibers, ensuring that the minimum bend radius of the optical fibers is maintained to avoid signal loss. Green plastic brackets hold the splice trays in place, keeping them stable and organized. The interior housing is structured with a grid-like base, offering structural support and additional space for component placement.

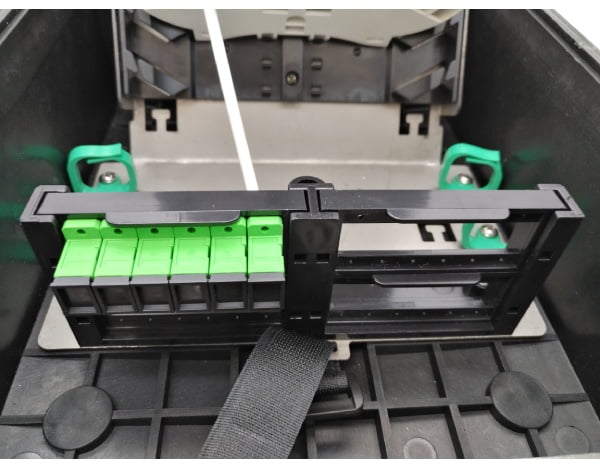

A black plastic panel hosts several green fiber optic SC/APC adapters. These adapters act as interfaces for mating fiber optic connectors, enabling the connection between patch cords or pigtails. This black panel allows for easy insertion and removal. The hook-and-loop strap is part of the cable management system, keeping fibers and components neatly organized and preventing tangling or damage. 1×16 or 3pc 1×8 steel tube splitters are compatible with this box.

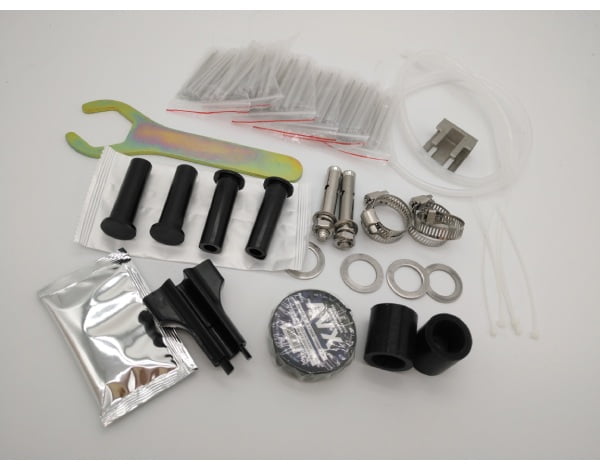

There is a set of necessary installation components along with each box while shipped, including:

• Cable Glands/Black Rubber Grommets: Seal the entry points of fiber optic cables into the distribution box, preventing dust, moisture, and other contaminants from entering while securing the cables.
• Wrench: Used for tightening or loosening nuts, bolts, or connectors during the installation and maintenance of the distribution box.
• Cable Ties (White): Organize and secure fiber optic cables, jumpers, or other components within the box to maintain order and prevent tangling.
• Metal Clamps/Hose Clamps: Further secure cables or cable glands, ensuring a tight and stable connection.
• Metal Connectors/Fittings: Likely used for splicing or connecting fiber optic cables, facilitating the transfer of optical signals.
• O-Rings/Sealing Rings: Provide additional sealing at connection points to enhance the box’s waterproof and dustproof performance.
• Black Plastic Components (Clips/Covers): Serve as mounts or protectors for fiber optic connectors, splices, or other internal parts, keeping them in place and safeguarded.

• Aluminum Foil Packet: Contains a sealing gel or grease to fill gaps and provide extra moisture protection at cable entry or connection points.
• Black Tape: Used for labeling cables, components, or sections within the box for easy identification and management.
• Small Metal Block: Could be a fiber optic adapter or connector interface, enabling the connection between different fiber optic cables or devices.
• Black Rubber Sleeves: Protect fiber optic cables or connectors from physical damage and environmental factors.

Optional Accessory for Fiber Optic Box Outdoor

SC Adapter	1:8 Splitter	SC Type Pigtail
SC/APC, green SC/UPC, blue IL<0.2dB	Mini Splitter 1×12,1×4,1×8	SC Type Pigtail IL<0.3dB
