24 Cores Plastic Fttx Fiber Optic Cable Box, For Outdoor Use, With 24 Sc Adapters With Pigtails, With Splice Tray, 3×8 Flat Drop Cable Exit.

Description

Features of Fiber Optic Cable Box

• Total enclosed with key and 2*buckles, nice shape, light weight, compact size;
• High strength engineer plastic, wet-proof/water-proof/dust-proof, anti-aging, resistance to chemical and U.V attack;
• Clamp for feeder cable and drop cable, mix fiber splicing/ fixation/storage/distribution in one;
• Cable, pigtails are running through own path without disturbing each other;
• Rotate plate can be flipped up, front for 1X16 LGX or mini splitter with 24SC adapter, back is for fusion 24cores.
• Feeder cable can be placed by expression port, easy for maintenance and installation;
• Outdoor Wall mount or pole mount, IP65 protection class
• Laser mark and logo print reserved on the lid

Specification

Detailed Display of Fiber Optic Cable Box

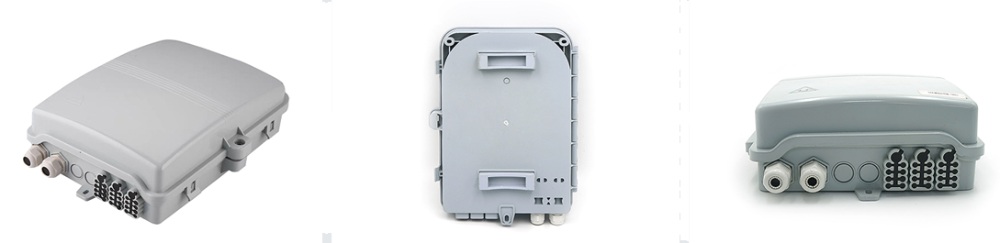

This box, size in 360*280*100mm, is made of durable, weather-resistant plastic, typically in gray or black, ensuring protection against environmental factors like rain, dust, and UV rays for outdoor or semi-outdoor installations. It has a robust, sealed enclosure with a hinged lid for easy access. It features secure locking mechanisms to prevent unauthorized tampering.

The back design emphasizes functionality and ease of operation. On the front, there are multiple fiber optic ports neatly arranged, allowing for the connection and distribution of optical fibers. There are also two cable entry ports on the side, facilitating the entry of external cables. The overall design is compact and practical, suitable for managing and distributing optical fibers in a concentrated manner.

Internally, it features a neatly arranged array of fiber optic connectors and splice trays.

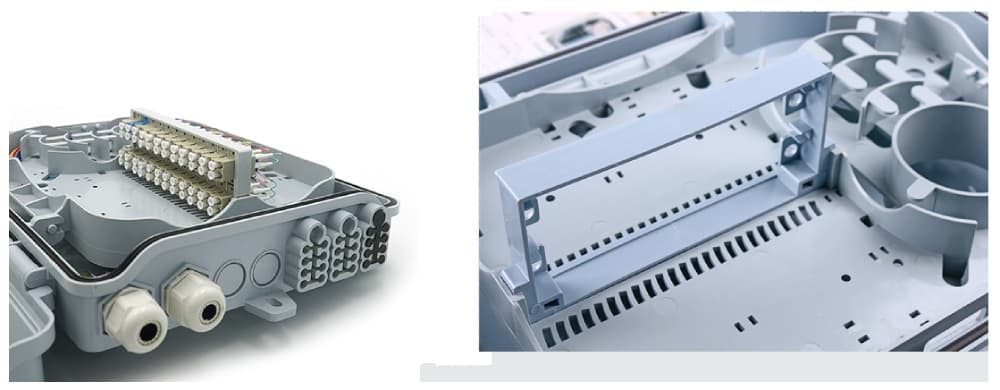

Fully equipped state (Left): The 24 fiber optic SC adapters are arranged in rows, allowing for the connection of patch cords. The number of ports can vary, commonly 8, 12, 16, or 24, to meet different distribution needs. There are labels or datasheet inside the box to help identify different fibers, ports, and connections, facilitating maintenance and troubleshooting.

Empty box state (Right): The internal framework of empty box includes mounting slots and trays for fiber optic components. There are also ventilation slots and various fixing points, which are reserved for installing fiber optic connectors, splice trays, and other accessories. The structure is designed to be modular, allowing for flexible configuration according to different fiber management needs, and providing enough space for future equipment installation and fiber routing.

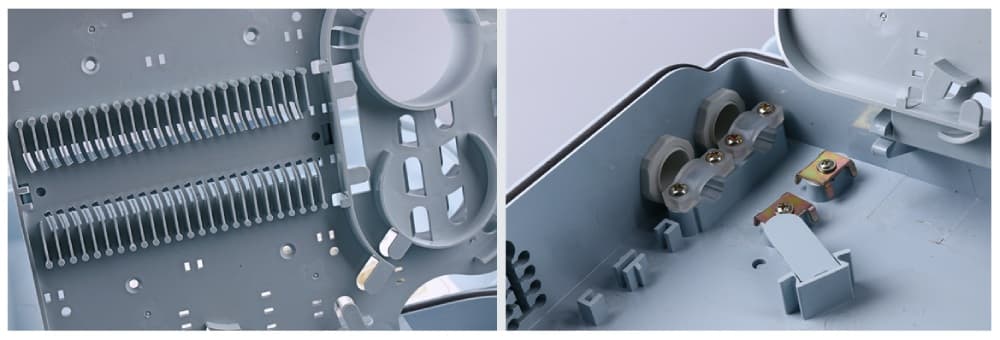

Inside, apart form the splice tray, this box features several mechanical components, including metal clamps and fixing brackets. These parts are used to secure cables or internal modules, ensuring the stability of the fiber optic system. There are also threaded connectors and structural supports, which play important roles in the installation and maintenance of the fiber optic distribution box, helping to maintain the integrity and reliability of the internal structure. 1×16, 2pc 1×8 steel tube splitter or 2pc 1×8 LGX splitter are well-matched this box.
