New 2in 4 Out Overhead Wire Optical Distribution Unit For Optical Termination Network, 16 Sc Coupler Plates For 2pc 1×8 Spltiter, With Splice Tray

Description

ODUs act as a central hub for fiber optic signal distribution, enabling the splitting and routing of optical signals. They facilitate the efficient management of fiber optic connections, making it easier to install, maintain, and troubleshoot fiber optic networks.

Features  of Optical Distribution Unit

• Total enclosed structure.
• Material: PC, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65。
• Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution…etc. all in one.
• Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC/LC/PLC adaptor installation, easy maintenance.
• Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
• Suitable for bunchy fibers ,Aerial, Wall-mounting

Specification

Detailed Display of Optical Distribution Unit

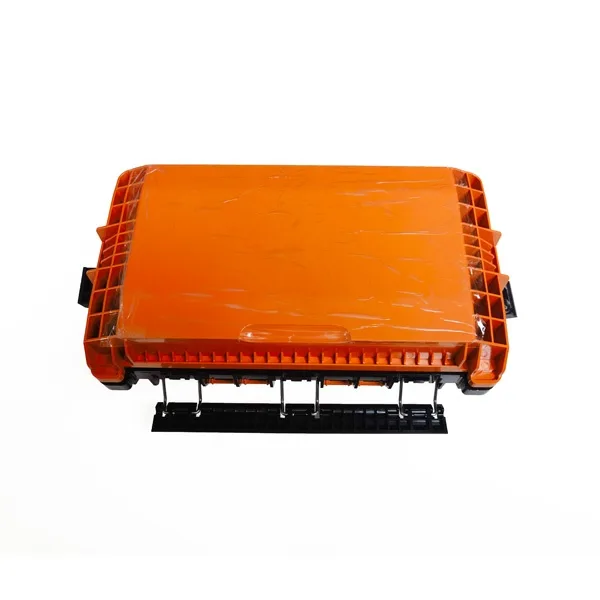

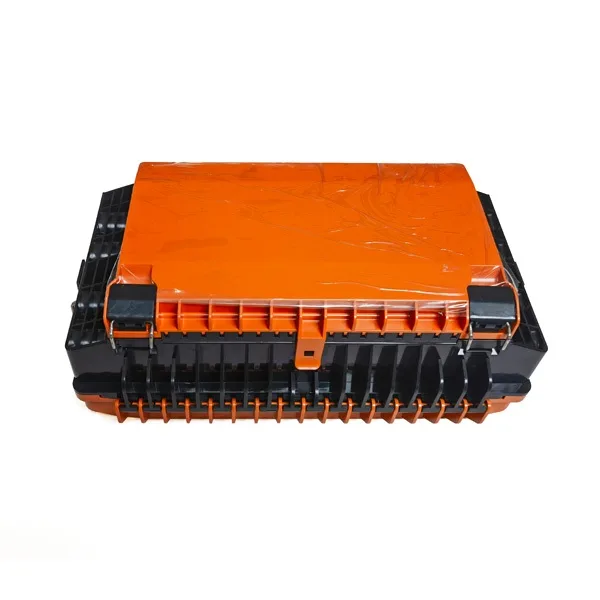

The units are hinged, allowing easy opening for access to internal parts. Some have handles or latches for secure closure and convenient handling. It features robust enclosures, likely made of durable plastic. One unit has an orange outer casing, while others are black. These enclosures are designed to protect internal components from environmental factors like dust, moisture, and physical damage. There are latches on the sides of the box, which ensures the tray’s lid stays tightly shut, protecting the delicate fiber optic splices and components inside from dust, moisture, and physical damage.

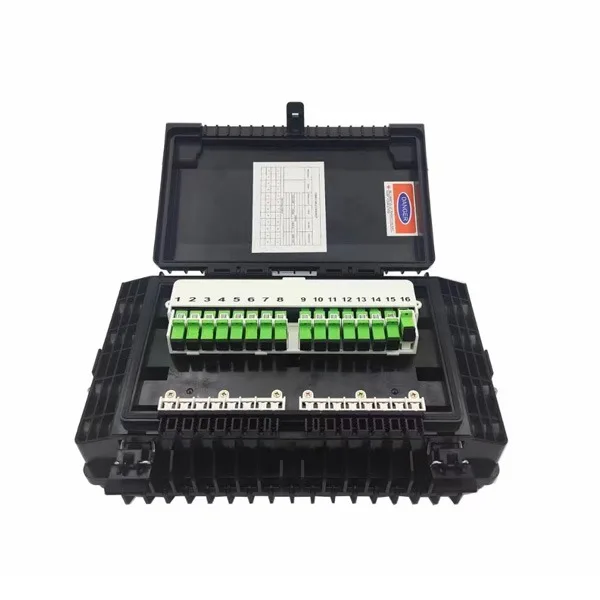

There is a panel with numbered ports (1 to 16) and green optical SC adapters. These ports are used to connect customer optical fibers or patch cords, enabling the distribution of optical signals to multiple endpoints. This unit has structured areas for cable entry and internal routing, ensuring that incoming and outgoing fibers are organized and managed efficiently to avoid tangling or damage.

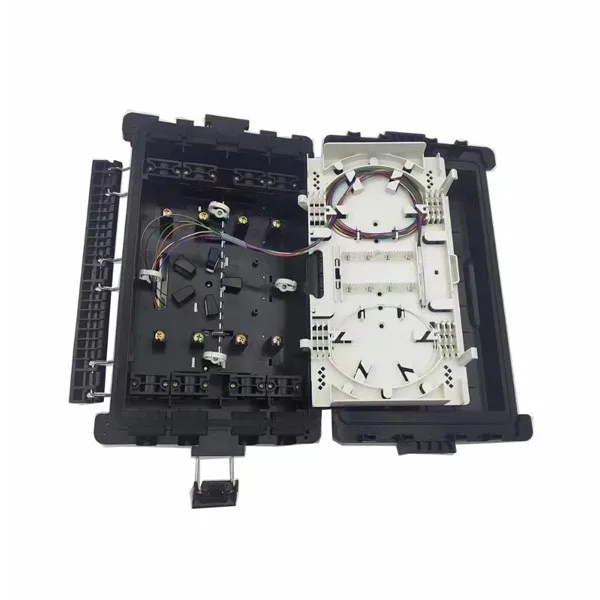

Inside, there are white fiber splice trays with circular slots, which are used to organize and protect fiber splices (where two fiber optic cables are joined). These trays provide a neat arrangement to prevent fiber bending and ensure signal integrity. Various colored fiber pigtails (pre-terminated fibers) are visible, which connect to optical connectors. 2pc 1×8 Spltiter are suitable for this box.

Here is a diagram picture of this box’s structure:

• Left View: It shows the box with components organized in layers. You can see arrays of fiber optic connectors and ports, along with a label “ENTER A LEATHER ROPE” indicating where a securing cord might be used, likely for cable management or box closure.
• Right View: This is a detailed layout of the internal components. It features:
  • A 1*8 PLC (Planar Lightwave Circuit) splitter (circled in red), which is a key component for splitting an optical signal into multiple output signals.
  • Entrances for “MAIN CABLE” (the primary fiber optic cable) and “DIFFERENCES CABLE” (branch cables for distributing signals).
  • Areas for fiber optic cable management, including loops of fibers that allow for proper routing, slack storage, and protection of the delicate optical fibers.

Optional Accessory

SC Adapter	1:8 Splitter	SC Type Pigtail	Cassette splitter 1 * 8
SC/APC, green SC/UPC, blue IL<0.2dB	Mini Splitter 1×12,1×4,1×8	SC Type Pigtail IL<0.3dB	Casstte module size:130*100*25mm SC/UPC, SC/APC connectors
Read More	Read More	Read More	Read More
