Description
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
| Part No. | Classification |
| FDB0216Q (GFS-16Q) | 16 Cores Optical fiber cable distribution box |
Standards comply
The product are designed, manufactured and tested according to the standards as follows:
| ITU-T G.652 | Characteristics of a single-mode optical fibre |
| IEC 60794-1-1 | Optical fibre cables-part 1-1: Generic specification-General |
| IEC 60794-1-2 | Optical fibre cables-part 1-2: Generic specification-Basic optical cable test procedure |
Mechanical specifications
The optical parameters shown in the table above are default values, and can be customized according to requirements.

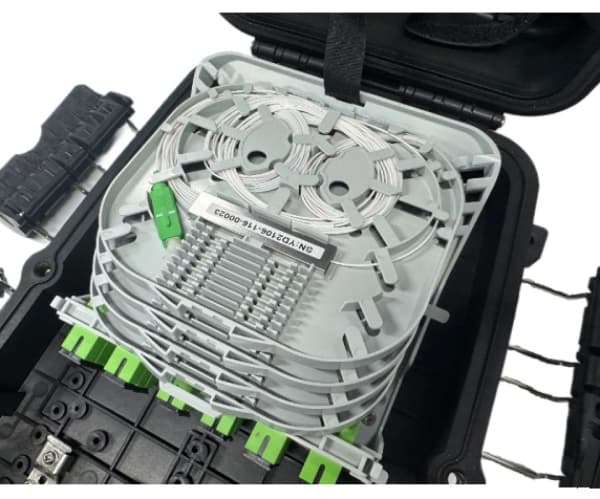

| Item | Specifications | Remark |
| External dimension(mm) | 378*255*116(A*B*C) | |
| Installation hole position(mm) | 215*266*239(D*E*F) | |
| Color | Black | Customize |
| Size and quantity of optical cable hole | 1 oval optical cable entry, 2 branch optical cable entries and 16 pcs of household | |
| Fusion capacity(Max) | 48 | Tray A ,12×4=48, 2 layers of heat-shrinkable splice protection sleeve. |
| 64 | Tray B, 8×8=64, 1 layer of heat-shrinkable splice protection sleeve. | |
| 96 | Tray C, 12×8=96, 1 layer of heat-shrinkable splice protection sleeve. | |
| 96 | Tray D,Tray E, 24×4=96, 2 layers of heat-shrinkable splice protection sleeve. | |
| 108 | MAX: 4D+1C=96+12=108 | |
| Micro PLC Splitter | 1×2 | Splitter size：60x7x4mm.
Can be installed in type A and type E splicing tray, 1 PC per splicing tray. |
| 1×4 | ||
| 1×8 | ||
| 1*16 | Splitter size：60x12x4mm.
Can be installed in type A-1, and type E-1 splicing tray, 1 PC per splicing tray. |
|
| Into the largest cable diameter (mm) | ᴓ18 | * Note: Provide the type and diameter of the optical cable when purchasing, to matching the appropriate sealing plug to ensure the sealing performance. |
| Maximum size of bifurcation hole (mm) | ᴓ18 | |
| Cable outlet size(mm) | 2*3~ᴓ7 | |
| IP protection level | IP68 | |
| Flammability | HB (Conventional) | can be customized according to requirements |
| Neutral salt spray test (NSS) | 48 h |
Applications Environment
| Item | Value |
| Operation temperature | -40 ºC～+65 ºC |
| Installation temperature | -5 ºC～+40 ºC |
| Storage temperature | -40ºC～+65 ºC |
| Atmospheric pressure | 70～106Kpa |
| Relative humidity | ≤93％(+40℃) |
Features
- Advanced structure design, easy operation and reasonable routing.
- Material: PP .

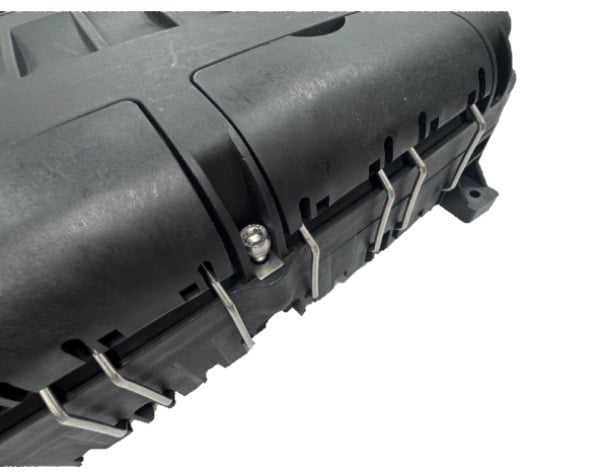

- Moisture proof, waterproof, dust-proof, anti-aging.
- Protection level up to IP68.

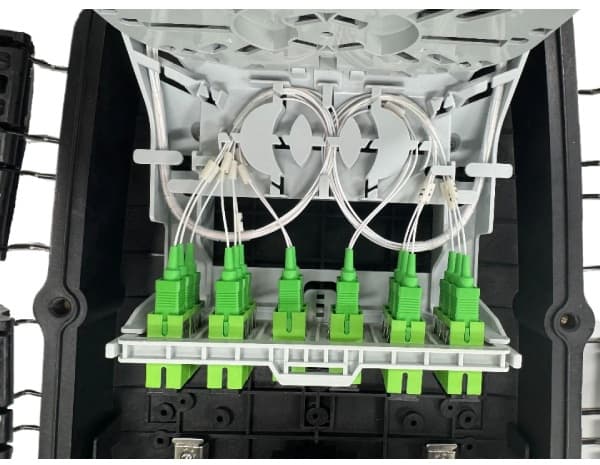

- 1 oval optical cable entry, 2 branch optical cable entries and 16 pcs of household

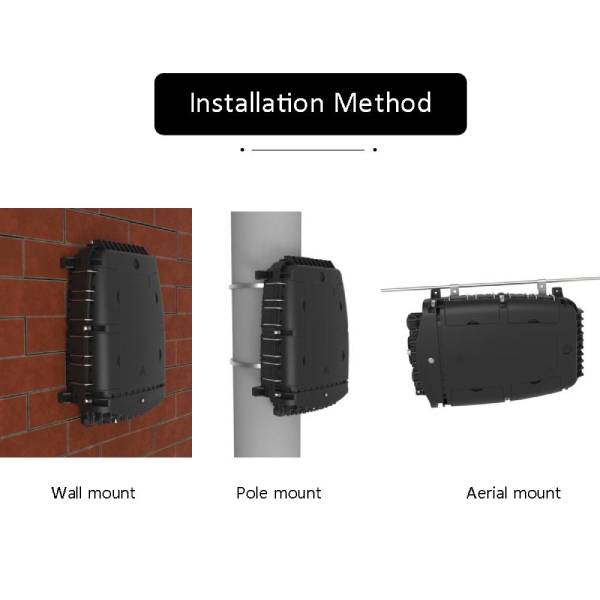

- Installation method: pole-mounted, aerial-mounted, wall-mounted.
Main optical parameters
| Splitter or pigtail | IL(dB) | RL(dB) | IL(dB) | Test method |
| Pigtail/Splitter | Distribution box | |||
| Pigtail-SC/APC-00-SM-SX(1C1F)-OD0.9MM-PVC-G657A2-Cable Color(Defaults)-Indoor-RoHS-1.5m | ≤0.3 | ≥55dB | ≤0.5 | IL: IEC61300-3-4 Method B
RL: IEC61300-3-6 Method 1 |
| 1×2 PLC Splitter, with SCAPC connector | ≤4.0 | ≥55dB | ≤4.2 | |
| 1×4 PLC Splitter, with SCAPC connector | ≤7.4 | ≥55dB | ≤7.6 | |
| 1x 8 PLC Splitter, with SCAPC connector | ≤10.5 | ≥55dB | ≤10.7 | |
| 1x 16 PLC Splitter, with SCAPC connector | ≤13.5 | ≥55dB | ≤13.7 | |
