Description
Features of Fiber Distribution Terminal Box
- Water-proof design with IP65 Protection grade.
- Integrated with splice cassette and cable management system.
- Manage fibers in a reasonable fiber radius condition.
- Fiber bend radius control more than 35mm.
- 1 uncut cable port for feeder cables.
- Fixed hermetic seals in all its grooves.
- The entire fiber route protected by transport tube.
- Complete opening of the hinges with stop included.
- Protected and organized pigtail space.
- Protection of Splitters and Pigtails.
- Support customized services such as logo screen printing.
Configuration Table
| Model | FDB0216K-B |
| Size (Pic 1) H×W×D | 304*185*115mm |
| Material | PC+ABS |
| Color | Black / White / Gray (Customize) |
| Splice Capacity | 36 Cores |
| Splitter Capacity | 2 Sets |
| Splitter Type | SC Mini Type, 1:2 / 1:4 / 1:8/1：16 |
| Adapter Type | SC |
| Adaptor Capacity | 18 Pcs |
| Incoming Cable Port | 2x(Φ10~14mm), 1x Mid-span 10~14mm |
| Drop Cable Port | 16 Ports |
| Installation Method | Wall, Pole Mounted |
| Operating tempertaure | -10~+70℃ |
| Life time | 25 years |
Detailed Display of Fiber Distribution Terminal Box

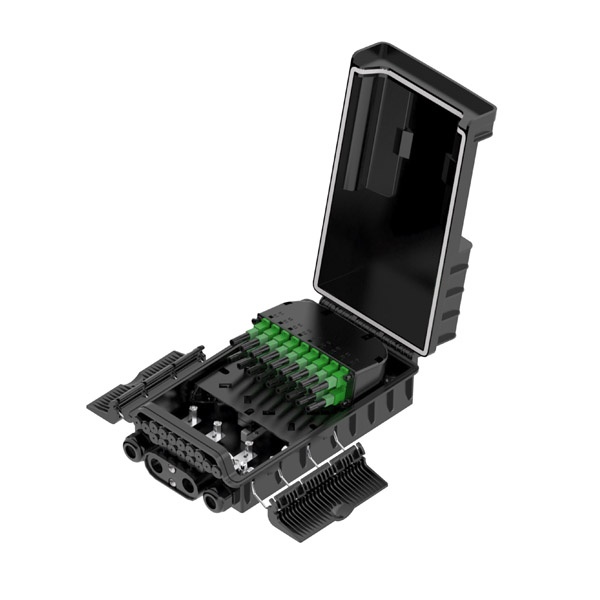

The box is designed to organize, splice, and distribute optical fibers efficiently. It includes spaces for fiber splicing, splitters, and connectors. It features a robust, black plastic casing with excellent durability and protection against environmental factors like dust, moisture, and minor impacts, which could be also customized in white, gray and any other color. The box has secure locking mechanism to keep the internal components safe.
On both the left and right sides of the box, there are black latches (or buckles) which are used to securely close the box. At the bottom of the box, there are several metallic components, which are used for cable connections.

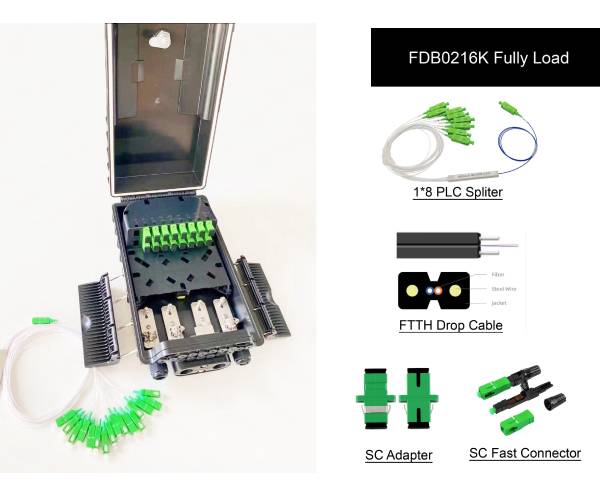

It can accommodate a 1×8 PLC Splitter, which is used to split a single input fiber into multiple output fibers, enabling signal distribution to multiple users. This box supports SC Adapters and SC Fast Connectors. These components facilitate quick and reliable fiber connections, ensuring minimal signal loss.
It works with FTTH Drop Cables, which are designed for residential fiber connections, featuring fibers, strength members, and protective jackets, allowing for both fiber splicing (joining fibers together) and distribution (splitting signals via splitters), catering to the needs of fiber optic network branching and extension.

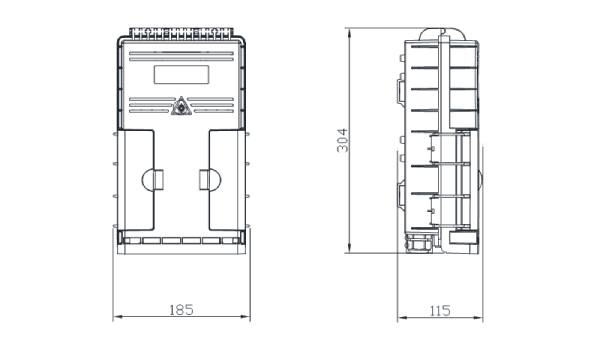

As shown in the technical drawing, it measures 185mm (width) × 304mm (height) × 115mm (depth), making it compact and suitable for both indoor and outdoor installations (e.g., on walls, utility poles).
Optional Accessory
|
SC Adapter |
1:8 Splitter | SC Type Pigtail | Cassette splitter 1 * 8 |
 |
 |
 |
 |
| SC/APC, green
SC/UPC, blue IL<0.2dB |
Mini Splitter
1×12,1×4,1×8 |
SC Type Pigtail
IL<0.3dB |
Casstte module size:130*100*25mm SC/UPC, SC/APC connectors |
